Timing Gear (Timing Chains, Tensioners) (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Timing Gear (Timing Chains, Tensioners) (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)

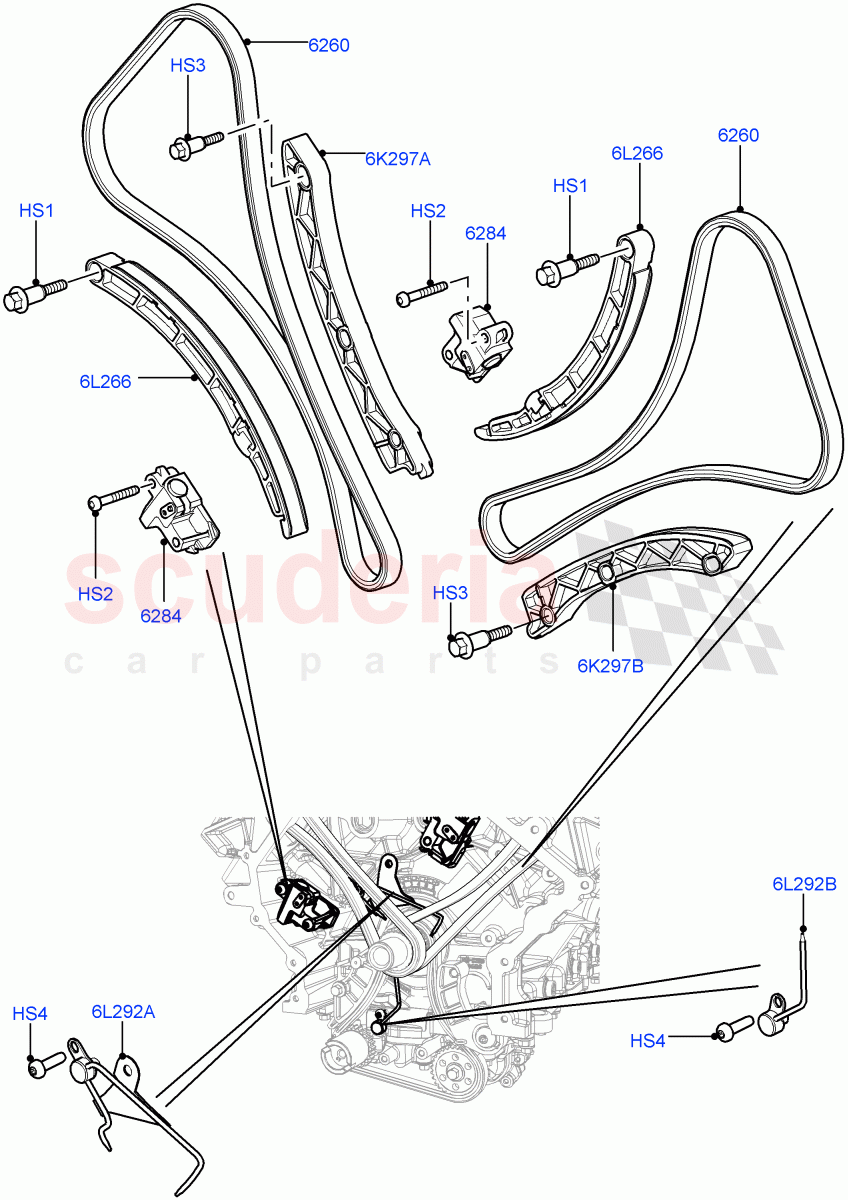

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011522	SCREW	$2.88	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011272	SCREW	$1.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011064	SCREW M6 X 38	$2.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR010904	SCREW	$1.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012004	CHAIN - TIMING	$54.95	To Order
	LR032048	CHAIN - TIMING	$90.92	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR010883	TENSIONER - TIMING BELT	$111.17	To Order
	LR095472	TENSIONER - TIMING CHAIN	$149.12	ARRIVING SOON
	LR095472	TENSIONER - TIMING CHAIN	$149.12	ARRIVING SOON

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR010769	TENSIONER - TIMING CHAIN	$153.44	To Order
	LR024839	TENSIONER - TIMING CHAIN	$69.94	To Order
	LR032090	TENSIONER - TIMING CHAIN	$66.63	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR051013	BLADE - TENSIONER	$66.62	IN STOCK
	LR051011	GUIDE - TIMING CHAIN	$48.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR051012	GUIDE - TIMING CHAIN	$48.74	IN STOCK
	LR051012	GUIDE - TIMING CHAIN	$48.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR032714	JET - CHAIN LUBRICATING	$52.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR059161	JET - CHAIN LUBRICATING	$19.05	IN STOCK
	LR034466	Jet	Enquire	To Order
	LR042667	JET - CHAIN LUBRICATING	$25.22	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	LR011522	SCREW IN STOCK	LR011522 SCREW M8 X 45MM, Tensioner / From: AA000001 IN STOCK	$2.88	2
HS2	LR011272	SCREW	LR011272 SCREW M6 X 40MM, Torx / From: AA000001	$1.38	4
HS3	LR011064	SCREW M6 X 38 IN STOCK	LR011064 SCREW M6 X 38 Chain Guide, M6 X 38MM / From: AA000001 IN STOCK	$2.59	6
HS4	LR010904	SCREW	LR010904 SCREW M6 X 20MM, Washer Nozzle / From: AA000001	$1.25	2
6K297A	LR051013	BLADE - TENSIONER IN STOCK	LR051013 BLADE - TENSIONER RH, Timing Chain / From: AA000001 / To: DA696314 IN STOCK	$66.62	1
6K297A	LR051011	GUIDE - TIMING CHAIN IN STOCK	LR051011 GUIDE - TIMING CHAIN RH, Timing Chain / From: DA696315 IN STOCK	$48.74	1
6K297B	LR051012	GUIDE - TIMING CHAIN IN STOCK	LR051012 GUIDE - TIMING CHAIN LH, Timing Chain / From: AA000001 / To: DA696314 IN STOCK	$48.74	1
6K297B	LR051012	GUIDE - TIMING CHAIN IN STOCK	LR051012 GUIDE - TIMING CHAIN LH, Timing Chain / From: DA696315 IN STOCK	$48.74	1
6L266	LR010769	TENSIONER - TIMING CHAIN	LR010769 TENSIONER - TIMING CHAIN Blade / From: AA000001 / To: AA999999	$153.44	2
6L266	LR024839	TENSIONER - TIMING CHAIN	LR024839 TENSIONER - TIMING CHAIN Blade / From: BA000001 / To: CA615288	$69.94	2
6L266	LR032090	TENSIONER - TIMING CHAIN	LR032090 TENSIONER - TIMING CHAIN Blade / From: CA615289 / To: CA628207	$66.63	2
6L266	LR051013	BLADE - TENSIONER IN STOCK	LR051013 BLADE - TENSIONER Blade, If you change LR040977 and order a part after s/s, you will receive a kit contains new blade and tensioner., The old and the new parts cannot be mixed. / From: CA628208 / To: DA696314 IN STOCK	$66.62	2
6L266	LR051013	BLADE - TENSIONER IN STOCK	LR051013 BLADE - TENSIONER Blade / From: DA696315 IN STOCK	$66.62	2
6L292A	LR032714	JET - CHAIN LUBRICATING IN STOCK	LR032714 JET - CHAIN LUBRICATING Chain Lubricating, Upper / From: AA000001 IN STOCK	$52.05	1
6L292B	LR059161	JET - CHAIN LUBRICATING IN STOCK	LR059161 JET - CHAIN LUBRICATING Chain Lubricating, Lower / From: AA000001 / To: CA615288 IN STOCK	$19.05	1
6L292B	LR034466	Jet	LR034466 Jet Chain Lubricating, Lower / From: CA615289 / To: CA632917	-	1	Enquire
6L292B	LR042667	JET - CHAIN LUBRICATING	LR042667 JET - CHAIN LUBRICATING Chain Lubricating, Lower / From: CA632918 / To: EA720633	$25.22	1
6L292B	LR059161	JET - CHAIN LUBRICATING IN STOCK	LR059161 JET - CHAIN LUBRICATING Chain Lubricating, Lower / From: EA720634 IN STOCK	$19.05	1
6260	LR012004	CHAIN - TIMING	LR012004 CHAIN - TIMING From: AA000001 / To: CA615288	$54.95	2
6260	LR032048	CHAIN - TIMING IN STOCK	LR032048 CHAIN - TIMING From: CA615289 IN STOCK	$90.92	2
6284	LR010883	TENSIONER - TIMING BELT	LR010883 TENSIONER - TIMING BELT From: AA000001 / To: CA615288	$111.17	2
6284	LR095472	TENSIONER - TIMING CHAIN ARRIVING SOON	LR095472 TENSIONER - TIMING CHAIN If you change LR032088 and order a part after s/s, you will receive a kit containing new blade and tensioner., The old and the new parts cannot be mixed. / From: CA615289 / To: DA696314 ARRIVING SOON	$149.12	2
6284	LR095472	TENSIONER - TIMING CHAIN ARRIVING SOON	LR095472 TENSIONER - TIMING CHAIN From: DA696315 / To: GA841380 ARRIVING SOON	$149.12	2
6284	LR095472	TENSIONER - TIMING CHAIN ARRIVING SOON	LR095472 TENSIONER - TIMING CHAIN From: GA841381 ARRIVING SOON	$149.12	2

Timing Gear (Timing Chains, Tensioners) (5.0L Ohc Sgdi Na V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Timing Gear (Timing Chains, Tensioners) (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)
