Oil Pan/Oil Level Indicator (5.0L Ohc Sgdi Na V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Oil Pan/Oil Level Indicator (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR011206 O-RING $5.64 To Order
Photo Part No Description Price (each) Stock
LR008872 RING - RUBBER $4.84 To Order
Photo Part No Description Price (each) Stock
LR011267 SCREW $1.05 IN STOCK
Photo Part No Description Price (each) Stock
LR011271 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
LR011700 SCREW $1.40 IN STOCK
Photo Part No Description Price (each) Stock
LR011274 SCREW $2.60 To Order
Photo Part No Description Price (each) Stock
LR011270 SCREW $1.24 To Order
Photo Part No Description Price (each) Stock
LR006867 O-RING $16.33 To Order
Photo Part No Description Price (each) Stock
LR012792 PAN - ENGINE OIL $1,126.90 To Order
LR035934 PAN - ENGINE OIL $751.63 To Order
Photo Part No Description Price (each) Stock
LR073675 PLUG - OIL DRAIN $8.34 To Order
Photo Part No Description Price (each) Stock
LR012640 SENSOR - OIL LEVEL $89.07 To Order
Photo Part No Description Price (each) Stock
LR008876 SENSOR - ENGINE SPEED $134.87 To Order
Photo Part No Description Price (each) Stock
LR010727 TUBE - OIL EXTRACTION $45.30 To Order
Photo Part No Description Price (each) Stock
LR011312 TUBE - OIL $50.82 To Order
View All

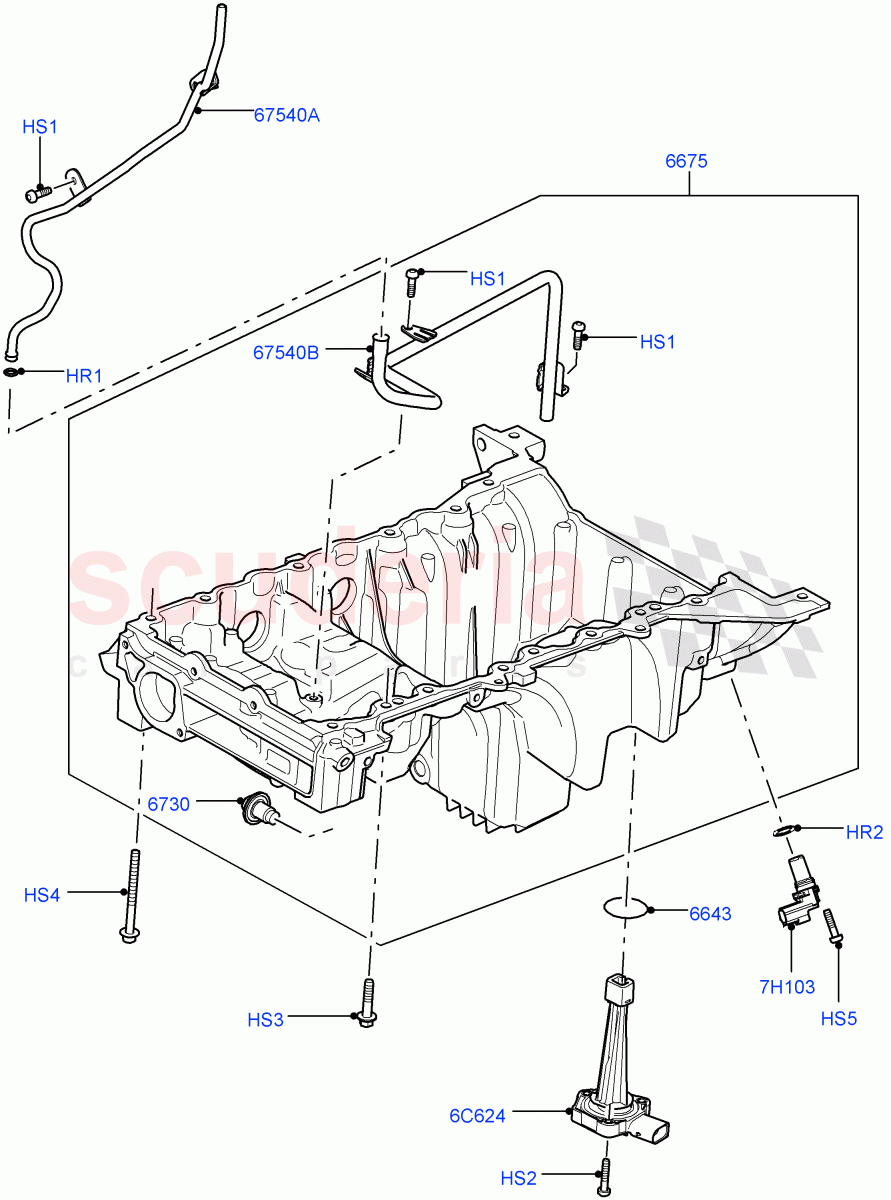

Oil Pan/Oil Level Indicator (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 LR011206
O-RING
Tube - Oil Extraction / From: AA000001 		$5.64 1
HR2 LR008872
RING - RUBBER
14 x 1MM, Sensor - Crankshaft Position - CPS / From: AA000001 		$4.84 1
HS1 LR011267
SCREW
M6 X 20MM, Tube Indicator / From: AA000001
IN STOCK 		$1.05 4
HS2 LR011271
SCREW
M6 x 30MM, Sensor - Oil Level / From: AA000001
IN STOCK 		$1.24 3
HS3 LR011700
SCREW
M8 X 35MM, Oil Pan / From: AA000001
IN STOCK 		$1.40 11
HS4 LR011274
SCREW
Oil Pan / From: AA000001 		$2.60 5
HS5 LR011270
SCREW
M6 x 25MM, To Crankshaft Sensor, Torx / From: AA000001 		$1.24 1
6C624 LR012640
SENSOR - OIL LEVEL
From: AA000001 		$89.07 1
7H103 LR008876
SENSOR - ENGINE SPEED
Sensor - Crankshaft Position - CPS / From: AA000001 		$134.87 1
6643 LR006867
O-RING
Sensor - Oil Level / From: AA000001 		$16.33 1
6675 LR012792
PAN - ENGINE OIL
From: AA000001 / To: CA618067 		$1,126.90 1
6675 LR035934
PAN - ENGINE OIL
From: CA618068 		$751.63 1
6730 LR073675
PLUG - OIL DRAIN
M14 X 1.5 / From: AA000001 		$8.34 1
67540A LR010727
TUBE - OIL EXTRACTION
Upper / From: AA000001 		$45.30 1
67540B LR011312
TUBE - OIL
Lower / From: AA000001 		$50.82 1
