Name: Exhaust Manifold (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)
Rating: 4.0 (1 reviews)

View All

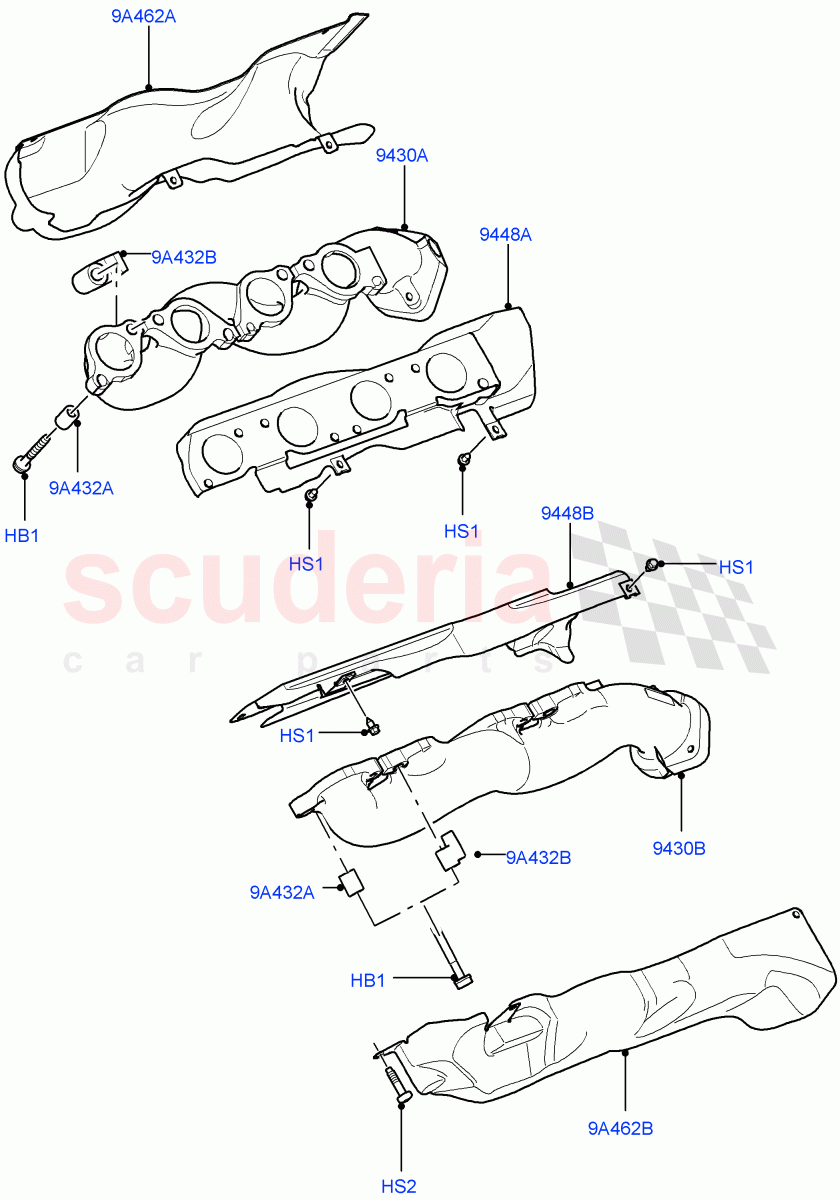

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR006698	SCREW	$3.80	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR010917	SCREW	$1.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR010834	MANIFOLD - EXHAUST	$948.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010836	MANIFOLD - EXHAUST	$708.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010839	GASKET	$53.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010841	GASKET	$59.34	To Order

Photo	Part No	Description	Price (each)	Stock
	4642648	SPACER - EXHAUST MANIFOLD FIXING	$1.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010805	EXHAUST MANIFOLD FIXING	$24.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010862	SHIELD - EXHAUST MANIFOLD HEAT	$53.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011328	SHIELD - EXHAUST MANIFOLD HEAT	$50.53	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR034008	BOLT IN STOCK	LR034008 BOLT M8 x 57MM / From: AA000001 / To: CA615288 IN STOCK	$3.32	16
HB1	LR034008	BOLT IN STOCK	LR034008 BOLT M8 x 57MM / From: CA615289 IN STOCK	$3.32	16
HS1	LR006698	SCREW IN STOCK	LR006698 SCREW Heat Shield, M6.3 X 13MM / From: AA000001 IN STOCK	$3.80	6
HS2	LR010917	SCREW IN STOCK	LR010917 SCREW Heat Shield, M8 x 30MM / From: AA000001 IN STOCK	$1.16	2
9A432A	4642648	SPACER - EXHAUST MANIFOLD FIXING	4642648 SPACER - EXHAUST MANIFOLD FIXING Exhaust Manifold Fixing / From: AA000001	$1.98	10
9A432B	LR010805	EXHAUST MANIFOLD FIXING	LR010805 EXHAUST MANIFOLD FIXING Exhaust Manifold Fixing / From: AA000001	$24.31	6
9A462A	LR010862	SHIELD - EXHAUST MANIFOLD HEAT	LR010862 SHIELD - EXHAUST MANIFOLD HEAT RH / From: AA000001	$53.05	1
9A462B	LR011328	SHIELD - EXHAUST MANIFOLD HEAT	LR011328 SHIELD - EXHAUST MANIFOLD HEAT LH / From: AA000001	$50.53	1
9430A	LR010834	MANIFOLD - EXHAUST	LR010834 MANIFOLD - EXHAUST RH / From: AA000001	$948.39	1
9430B	LR010836	MANIFOLD - EXHAUST	LR010836 MANIFOLD - EXHAUST LH / From: AA000001	$708.11	1
9448A	LR010839	GASKET	LR010839 GASKET RH / From: AA000001	$53.48	1
9448B	LR010841	GASKET	LR010841 GASKET LH / From: AA000001	$59.34	1

Exhaust Manifold (5.0L Ohc Sgdi Na V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]
