Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Instrument Panel (Internal Components) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
DYG000052 BOLT $2.33 To Order
Photo Part No Description Price (each) Stock
FYC500040 CLIP $3.58 To Order
FYC500040 CLIP $3.58 To Order
Photo Part No Description Price (each) Stock
FAS500030 NUT $1.21 To Order
Photo Part No Description Price (each) Stock
AYP500031 SCREW $1.66 To Order
Photo Part No Description Price (each) Stock
DYG000030 BOLT $1.87 To Order
Photo Part No Description Price (each) Stock
SYP500010 SCREW - SELF-TAPPING $0.47 To Order
Photo Part No Description Price (each) Stock
AYP500062 SCREW $0.98 To Order
FYP500550 SCREW $1.05 To Order
Photo Part No Description Price (each) Stock
FYP500740 SCREW $3.01 To Order
Photo Part No Description Price (each) Stock
LR016709 MOULDING - INSTRUMENT PANEL $138.62 To Order
LR016710 MOULDING - INSTRUMENT PANEL $138.62 To Order
LR021352 MOULDING - INSTRUMENT PANEL $126.02 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR013636 PANEL $20.65 To Order
Photo Part No Description Price (each) Stock
FCL500290PMA MOULDING - INSTRUMENT PANEL $32.44 To Order
FCL500300PMA MOULDING - INSTRUMENT PANEL $21.93 To Order
Photo Part No Description Price (each) Stock
LR014092 COVER - STEERING WHEEL $112.86 To Order
Photo Part No Description Price (each) Stock
FGV500090 BRACKET $12.37 To Order
Photo Part No Description Price (each) Stock
LR013614 HOUSING - INSTRUMENT CLUSTER $129.65 To Order
LR013616 HOUSING - INSTRUMENT CLUSTER $129.65 To Order
LR021324 HOUSING - INSTRUMENT CLUSTER $129.65 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
EBA000011 BRACKET $5.23 To Order
LR027568 BRACKET $5.96 To Order
Photo Part No Description Price (each) Stock
FAD500110 REINFORCEMENT - INSTRUMENT PANEL $671.59 To Order
FAD500120 REINFORCEMENT - INSTRUMENT PANEL $456.65 To Order
LR037397 REINFORCEMENT - INSTRUMENT PANEL $456.65 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR013582 BRACKET - RADIO $16.65 To Order
Photo Part No Description Price (each) Stock
LR031180 BRACKET - NAVIGATION SCREEN $15.65 To Order
View All

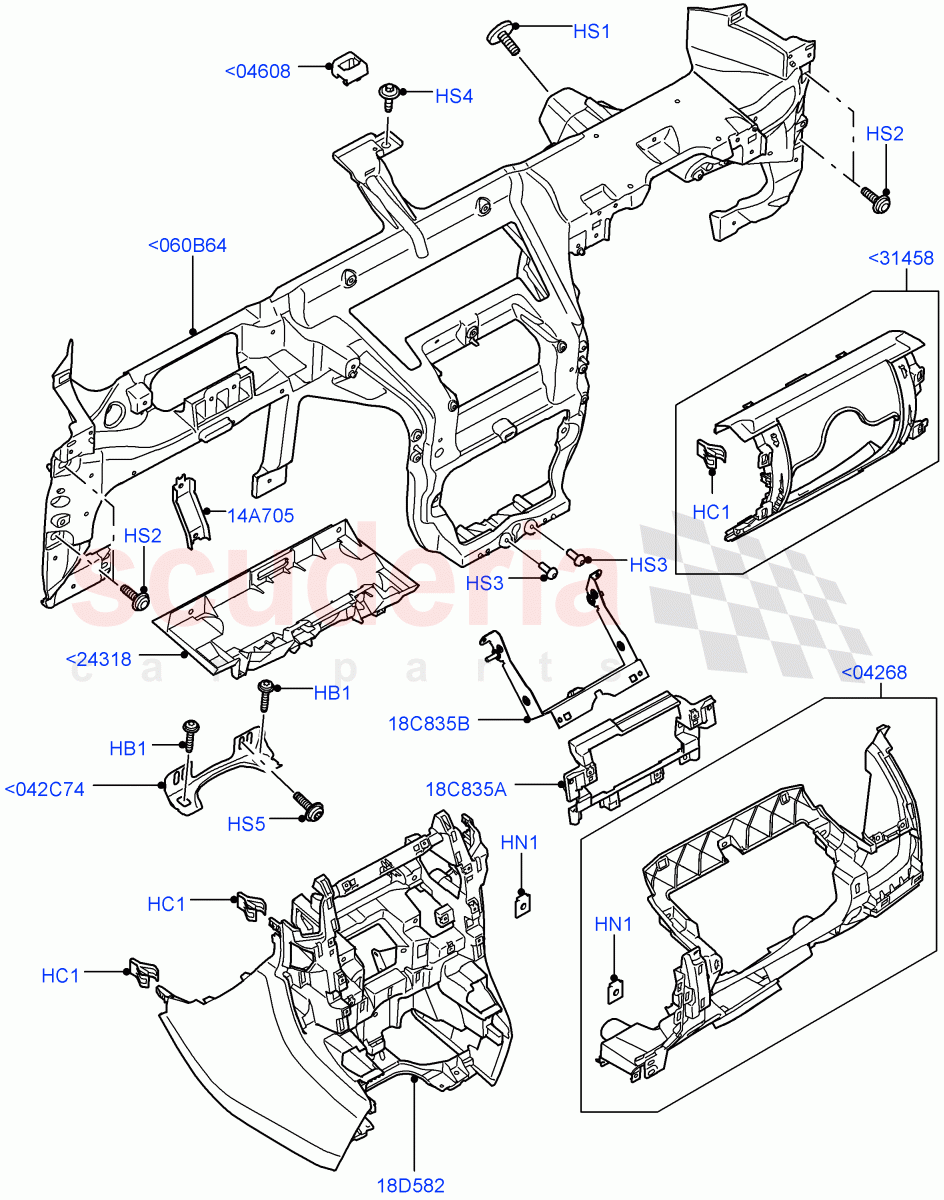

Instrument Panel (Internal Components) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<042C74 EBA000011
BRACKET
From: AA000001 / To: BA598847 		$5.23 1
<042C74 LR027568
BRACKET
From: BA598848 		$5.96 1
<060B64 FAD500110
REINFORCEMENT - INSTRUMENT PANEL
LHD / From: AA000001 / To: CA623741 		$671.59 1
<060B64 FAD500120
REINFORCEMENT - INSTRUMENT PANEL
RHD / From: AA000001 / To: CA623741 		$456.65 1
<060B64 LR037397
REINFORCEMENT - INSTRUMENT PANEL
LHD / From: CA623742 / To: CA648453 		$456.65 1
<060B64 LR038273
Reinforcement - Instrument Panel
RHD / From: CA623742 / To: CA648453 		- 1 Enquire
<060B64 LR043728
Reinforcement - Instrument Panel
LHD / From: CA648454 / To: DA652588 		- 1 Enquire
<060B64 LR043730
Reinforcement - Instrument Panel
RHD / From: CA648454 / To: DA654292 		- 1 Enquire
<060B64 LR046801
REINFORCEMENT - INSTRUMENT PANEL
LHD / From: DA652589 		$1,038.42 1
<060B64 LR047451
REINFORCEMENT - INSTRUMENT PANEL
RHD / From: DA654293 		$745.81 1
<04268 LR016709
MOULDING - INSTRUMENT PANEL
RHD / Driver, Ebony Black, Lower / From: AA000001 / To: AA520261 		$138.62 1
<04268 LR016710
MOULDING - INSTRUMENT PANEL
LHD / Driver, Ebony Black, Lower / From: AA000001 / To: AA520261 		$138.62 1
<04268 LR021352
MOULDING - INSTRUMENT PANEL
RHD / Driver, Lower / From: AA520262 		$126.02 1
<04268 LR021353
MOULDING - INSTRUMENT PANEL
LHD / Driver, Lower / From: AA520262 		$138.62 1
<04608 LR013636
PANEL
For Solar Sensor / From: AA000001 		$20.65 1
<24318 FCL500290PMA
MOULDING - INSTRUMENT PANEL
LHD / Cover, Kneebolster Crush / From: AA000001 		$32.44 1
<24318 FCL500300PMA
MOULDING - INSTRUMENT PANEL
RHD / Cover, Kneebolster Crush / From: AA000001 		$21.93 1
<31458 LR014092
COVER - STEERING WHEEL
Steering Wheel Back Cover / From: AA000001 		$112.86 1
HB1 DYG000052
BOLT
Bracket, Frame To Body, M8 X 45MM, Torx / From: AA000001 		$2.33 2
HC1 FYC500040
CLIP
Steel, Steering Wheel Back Cover / From: AA000001 		$3.58 3
HC1 FYC500040
CLIP
Housing Assy, Radio & A/C Controls, Steel / From: AA000001 		$3.58 4
HN1 FAS500030
NUT
"Spring" / From: AA000001 		$1.21 15
HS1 AYP500031
SCREW
Crossbeam, Frame To Body, M8 X 25MM, Rear / From: AA000001 		$1.66 1
HS2 DYG000030
BOLT
Crossbeam, M8 x 50MM, Side, Torx / From: AA000001 		$1.87 4
HS3 SYP500010
SCREW - SELF-TAPPING
Bracket, M6 X 16MM, Torx / From: AA000001 		$0.47 2
HS4 AYP500062
SCREW
Crossbeam, M6 X 23MM / From: AA000001 / To: CA604450 		$0.98 1
HS4 FYP500550
SCREW
Crossbeam, Hexagonal Head, M6 X 20MM / From: CA604451 		$1.05 2
HS5 FYP500740
SCREW
M6 X 16MM, Self Tapping 		$3.01 1
14A705 FGV500090
BRACKET
(+)"CDN/MEX/USA", LHD / From: AA000001 		$12.37 2
18C835A LR013582
BRACKET - RADIO
Radio - CD Player / From: AA000001 		$16.65 1
18C835B LR031180
BRACKET - NAVIGATION SCREEN
Premium Audio 1280 W / For Navigation System / From: CA000001 		$15.65 1
18D582 LR013614
HOUSING - INSTRUMENT CLUSTER
I/P Facia Contrast - Ebony Black / From: AA000001 / To: AA520261 		$129.65 1
18D582 LR013616
HOUSING - INSTRUMENT CLUSTER
I/P Facia Contrast-Arabica/Almond / From: AA000001 / To: AA520261 		$129.65 1
18D582 LR021324
HOUSING - INSTRUMENT CLUSTER
I/P Facia Contrast - Ebony Black / From: AA520262 		$129.65 1
18D582 LR021325
HOUSING - INSTRUMENT CLUSTER
I/P Facia Contrast-Arabica/Almond / From: AA520262 		$129.65 1
