Radiator/Coolant Overflow Container (Cologne V6 4.0 Efi (Sohc)) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Radiator/Coolant Overflow Container (Cologne V6 4.0 EFI (SOHC)) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
PYP500120 BOLT $0.80 IN STOCK
Photo Part No Description Price (each) Stock
IPN500010 CLIP $5.15 To Order
Photo Part No Description Price (each) Stock
LR002185 PIN - FASTENING $0.67 To Order
Photo Part No Description Price (each) Stock
AL608031 NUT - SPRING $0.52 To Order
Photo Part No Description Price (each) Stock
PYP000221 SCREW AND WASHER $0.84 IN STOCK
Photo Part No Description Price (each) Stock
FS106167L SCREW $2.22 IN STOCK
Photo Part No Description Price (each) Stock
MYP100500L SCREW $1.21 To Order
Photo Part No Description Price (each) Stock
AB608068 Screw $0.47 To Order
LR020269 SCREW $2.68 To Order
Photo Part No Description Price (each) Stock
KGX500020 SPACER $9.22 To Order
LR015830 SPACER $3.86 To Order
Photo Part No Description Price (each) Stock
LR021777 RADIATOR $617.23 To Order
PCC500630 RADIATOR $492.45 To Order
Photo Part No Description Price (each) Stock
PCU500091 BRACKET $8.05 IN STOCK
Photo Part No Description Price (each) Stock
LR176861 CAP - OVERFLOW CONTAINER $17.12 To Order
Photo Part No Description Price (each) Stock
PDI500012 INSULATOR - RADIATOR MOUNTING $2.73 IN STOCK
Photo Part No Description Price (each) Stock
PGG500350 FAN $628.69 To Order
LR025966 MOTOR AND FAN - ENGINE COOLING $681.38 To Order
Photo Part No Description Price (each) Stock
PGK500180 SHROUD - RADIATOR FAN $100.19 To Order
PGK500043 SHROUD - RADIATOR FAN $61.54 To Order
Photo Part No Description Price (each) Stock
PGK500052 SHROUD - FAN $190.25 To Order
PGK500190 SHROUD - RADIATOR FAN $182.00 To Order
Photo Part No Description Price (each) Stock
LR013663 TANK - RADIATOR OVERFLOW $73.61 To Order
LR020367 TANK - RADIATOR OVERFLOW $141.14 IN STOCK
Photo Part No Description Price (each) Stock
PCZ500010 SEAL $19.06 To Order
Photo Part No Description Price (each) Stock
LR007315 SEAL $2.25 IN STOCK
Photo Part No Description Price (each) Stock
PDG500045 PIN $1.54 IN STOCK
Photo Part No Description Price (each) Stock
LR007314 VALVE - BLEEDER SCREW $4.78 To Order
Photo Part No Description Price (each) Stock
PCJ500030 SENSOR - COOLANT LEVEL $24.99 IN STOCK
Photo Part No Description Price (each) Stock
PCG500090 GROMMET $7.52 To Order
Photo Part No Description Price (each) Stock
PCG500011 GROMMET $7.52 To Order
Photo Part No Description Price (each) Stock
PCU500220 BRACKET $19.66 To Order
Photo Part No Description Price (each) Stock
PYC500080 CLIP $0.79 To Order
Photo Part No Description Price (each) Stock
DHE500010 SEAL $35.36 To Order
Photo Part No Description Price (each) Stock
PZB500020 SEAL $27.39 To Order
View All

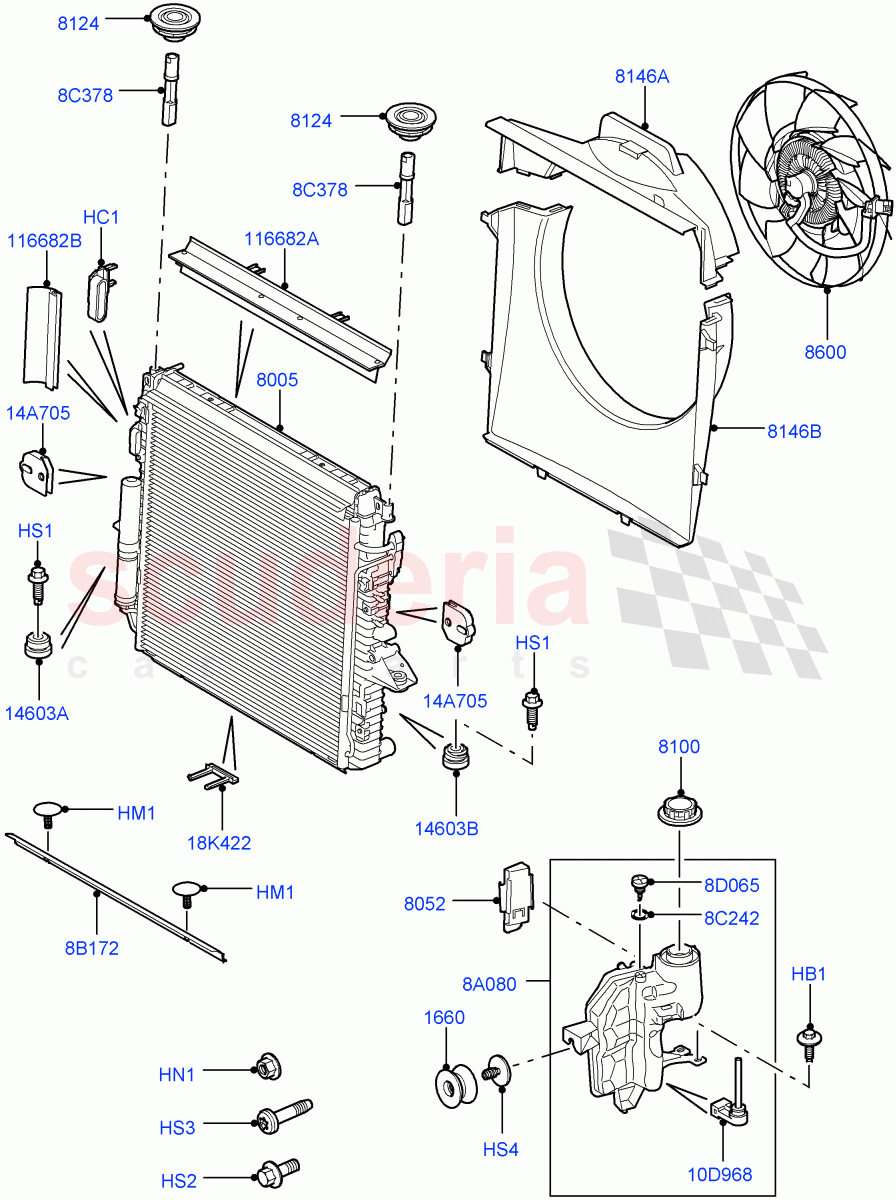

Radiator/Coolant Overflow Container (Cologne V6 4.0 EFI (SOHC)) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 PYP500120
BOLT
M6 X 20MM / From: AA000001
IN STOCK 		$0.80 2
HC1 IPN500010
CLIP
RH, Radiator Support, Upper / From: AA000001 		$5.15 1
HM1 LR002185
PIN - FASTENING
6.35 X 28.5 X 2-13.5MM, Push Pin / From: AA000001 		$0.67 2
HN1 AL608031
NUT - SPRING
Nut "U" Spring / From: AA000001 		$0.52 1
HS1 PYP000221
SCREW AND WASHER
M8 X 25MM / From: AA000001
IN STOCK 		$0.84 2
HS2 FS106167L
SCREW
M6 X 16MM / From: AA000001
IN STOCK 		$2.22 1
HS3 MYP100500L
SCREW
6 X 26 / From: AA000001 		$1.21 1
HS4 AB608068
Screw
4.2 X 19MM / From: AA000001 / To: AA523459 		$0.47 1
HS4 LR020269
SCREW
4.2 X 19MM / From: AA523460 		$2.68 1
8A080 LR013663
TANK - RADIATOR OVERFLOW
With Sensor / From: AA000001 / To: AA520252 		$73.61 1
8A080 LR020367
TANK - RADIATOR OVERFLOW
From: AA520253
IN STOCK 		$141.14 1
8B172 PCZ500010
SEAL
Lower / From: AA000001 		$19.06 1
8C242 LR007315
SEAL
Bleeder Screw / From: AA000001
IN STOCK 		$2.25 1
8C378 PDG500045
PIN
Top / From: AA000001
IN STOCK 		$1.54 2
8D065 LR007314
VALVE - BLEEDER SCREW
Bleeder Screw / From: AA000001 		$4.78 1
10D968 PCJ500030
SENSOR - COOLANT LEVEL
From: AA000001
IN STOCK 		$24.99 1
14A705 PCU500220
BRACKET
From: AA000001 		$19.66 2
18K422 PYC500080
CLIP
From: AA000001 		$0.79 1
1660 KGX500020
SPACER
From: AA000001 / To: AA521655 		$9.22 1
1660 LR015830
SPACER
From: AA521656 		$3.86 1
8005 LR021777
RADIATOR
From: AA537585 		$617.23 1
8005 PCC500630
RADIATOR
From: AA000001 / To: AA537584 		$492.45 1
8052 PCU500091
BRACKET
Expansion Reservoir Overflow / From: AA000001
IN STOCK 		$8.05 1
8100 LR176861
CAP - OVERFLOW CONTAINER
From: AA000001 		$17.12 1
8124 PDI500012
INSULATOR - RADIATOR MOUNTING
Radiator Mounting, Top / From: AA000001
IN STOCK 		$2.73 2
8146A PGK500180
SHROUD - RADIATOR FAN
For Hot Climate Zones / Upper / From: AA000001 		$100.19 1
8146A PGK500043
SHROUD - RADIATOR FAN
For Cold Temperature Zones / Upper / From: AA000001 		$61.54 1
8146B PGK500052
SHROUD - FAN
For Cold Temperature Zones / Lower / From: AA000001 		$190.25 1
8146B PGK500190
SHROUD - RADIATOR FAN
For Hot Climate Zones / Lower / From: AA000001 		$182.00 1
8600 PGG500350
FAN
From: AA000001 / To: AA551386 		$628.69 1
8600 LR025966
MOTOR AND FAN - ENGINE COOLING
From: AA551387 		$681.38 1
14603A PCG500090
GROMMET
RH, Round / From: AA000001 		$7.52 2
14603B PCG500011
GROMMET
LH, Lower, Screw Type / From: AA000001 		$7.52 1
116682A DHE500010
SEAL
Top / From: AA000001 		$35.36 1
116682B PZB500020
SEAL
RH / From: AA000001 		$27.39 1
