Crankshaft/Pistons And Bearings (Cologne V6 4.0 Efi (Sohc)) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Crankshaft/Pistons And Bearings (Cologne V6 4.0 EFI (SOHC)) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1034091 KEY - WOODRUFF $1.68 To Order
Photo Part No Description Price (each) Stock
1021662 NUT - HEX. $2.55 To Order
Photo Part No Description Price (each) Stock
4537629 PISTON AND PIN $50.69 To Order
Photo Part No Description Price (each) Stock
4537608 PIN - PISTON $3.66 To Order
Photo Part No Description Price (each) Stock
LR006264 KIT - PISTON RING $105.98 To Order
LR018387 KIT - PISTON RING $47.82 To Order
Photo Part No Description Price (each) Stock
4501414 ROD - CONNECTING $70.36 To Order
Photo Part No Description Price (each) Stock
LR000616 BEARING - CONNECTING ROD $31.88 To Order
4345429 BEARING - CONNECTING ROD $5.89 To Order
Photo Part No Description Price (each) Stock
4345511 BOLT - CONNECTING ROD $6.01 To Order
Photo Part No Description Price (each) Stock
4558401 CRANKSHAFT $875.27 To Order
Photo Part No Description Price (each) Stock
3890782 SPACER - BUSH $4.96 To Order
Photo Part No Description Price (each) Stock
4719898 SEAL - CRANKSHAFT OIL $15.25 To Order
Photo Part No Description Price (each) Stock
4676797 GEAR - CRANKSHAFT $11.20 To Order
Photo Part No Description Price (each) Stock
4345513 GEAR - CRANKSHAFT $26.37 To Order
Photo Part No Description Price (each) Stock
LR007194 BEARING - CRANKSHAFT MAIN $9.70 To Order
Photo Part No Description Price (each) Stock
LR004231 BEARING - CRANKSHAFT MAIN $10.70 To Order
Photo Part No Description Price (each) Stock
LR000609 BEARING - CRANKSHAFT MAIN $8.91 To Order
Photo Part No Description Price (each) Stock
LR007198 BEARING - CRANKSHAFT MAIN THRUST $13.77 To Order
Photo Part No Description Price (each) Stock
LR016850 BEARING - CRANKSHAFT MAIN $144.00 To Order
LR016851 BEARING - CRANKSHAFT MAIN $144.00 To Order
View All

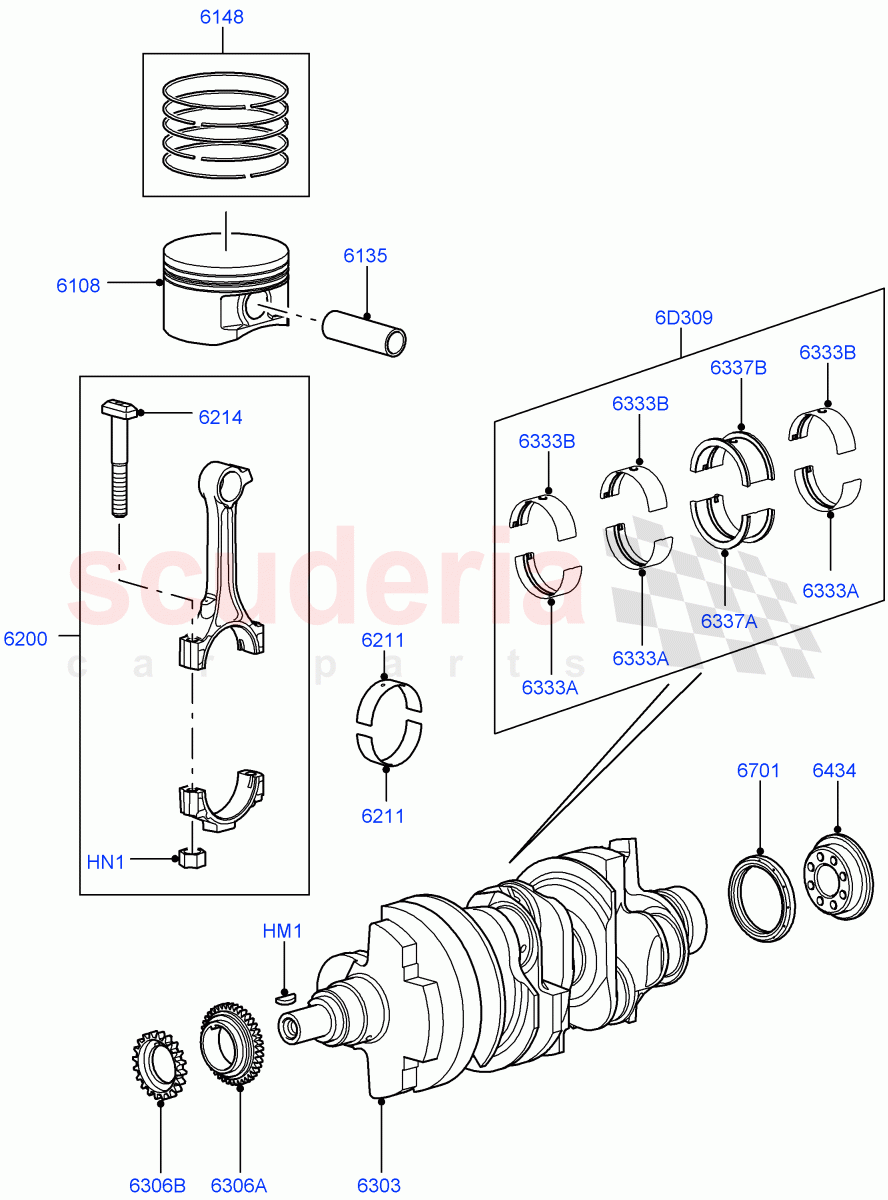

Crankshaft/Pistons And Bearings (Cologne V6 4.0 EFI (SOHC)) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HM1 1034091
KEY - WOODRUFF
KEY / From: AA000001 		$1.68 1
HN1 1021662
NUT - HEX.
M8 / From: AA000001 		$2.55 12
6D309 LR016850
BEARING - CRANKSHAFT MAIN
Complete Kit, Refer To Workshop Manual For Proper Grade Selection, STD / From: AA000001 		$144.00 1
6D309 LR016851
BEARING - CRANKSHAFT MAIN
0.25 O/S, Complete Kit, Refer To Workshop Manual For Proper Grade Selection / From: AA000001 		$144.00 1
6108 4537629
PISTON AND PIN
From: AA000001 		$50.69 6
6135 4537608
PIN - PISTON
From: AA000001 		$3.66 6
6148 LR006264
KIT - PISTON RING
Refer To Workshop Manual For Proper Grade Selection, STD / From: AA000001 		$105.98 6
6148 LR018387
KIT - PISTON RING
.50mm/.020"O/S / From: AA000001 		$47.82 6
6200 4501414
ROD - CONNECTING
From: AA000001 		$70.36 6
6211 LR000616
BEARING - CONNECTING ROD
Refer To Workshop Manual For Proper Grade Selection, STD / From: AA000001 		$31.88 12
6211 4345429
BEARING - CONNECTING ROD
.010"/.25mm U/S, Refer To Workshop Manual For Proper Grade Selection / From: AA000001 		$5.89 12
6214 4345511
BOLT - CONNECTING ROD
From: AA000001 		$6.01 12
6303 4558401
CRANKSHAFT
From: AA000001 		$875.27 1
6306A 4676797
GEAR - CRANKSHAFT
Inner / From: AA000001 		$11.20 1
6306B 4345513
GEAR - CRANKSHAFT
Outer / From: AA000001 		$26.37 1
6333A LR007194
BEARING - CRANKSHAFT MAIN
Lower, STD / From: AA000001 		$9.70 3
6333B LR004231
BEARING - CRANKSHAFT MAIN
STD, Upper / From: AA000001 		$10.70 3
6337A LR000609
BEARING - CRANKSHAFT MAIN
Lower, STD / From: AA000001 		$8.91 1
6337B LR007198
BEARING - CRANKSHAFT MAIN THRUST
STD, Upper / From: AA000001 		$13.77 1
6434 3890782
SPACER - BUSH
From: AA000001 		$4.96 1
6701 4719898
SEAL - CRANKSHAFT OIL
From: AA000001 		$15.25 1
