Rear Bumper ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Rear Bumper ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
DYR500010 STUD $2.15 IN STOCK
Photo Part No Description Price (each) Stock
ANR2224 HARDWARE - MISCELLANEOUS $2.66 To Order
Photo Part No Description Price (each) Stock
DYH500010 NUT $3.59 To Order
Photo Part No Description Price (each) Stock
DYH500110 NUT $1.63 To Order
Photo Part No Description Price (each) Stock
RYG501590 SCREW $0.99 IN STOCK
Photo Part No Description Price (each) Stock
LR106494 SCREW $2.24 IN STOCK
Photo Part No Description Price (each) Stock
DYP500030 SCREW $1.75 IN STOCK
Photo Part No Description Price (each) Stock
AWR3994 RETAINER $3.96 To Order
RYQ500070 PIN - RETAINING 6.3 X 22MM $1.50 IN STOCK
Photo Part No Description Price (each) Stock
DYF500010 RETAINER $2.03 IN STOCK
Photo Part No Description Price (each) Stock

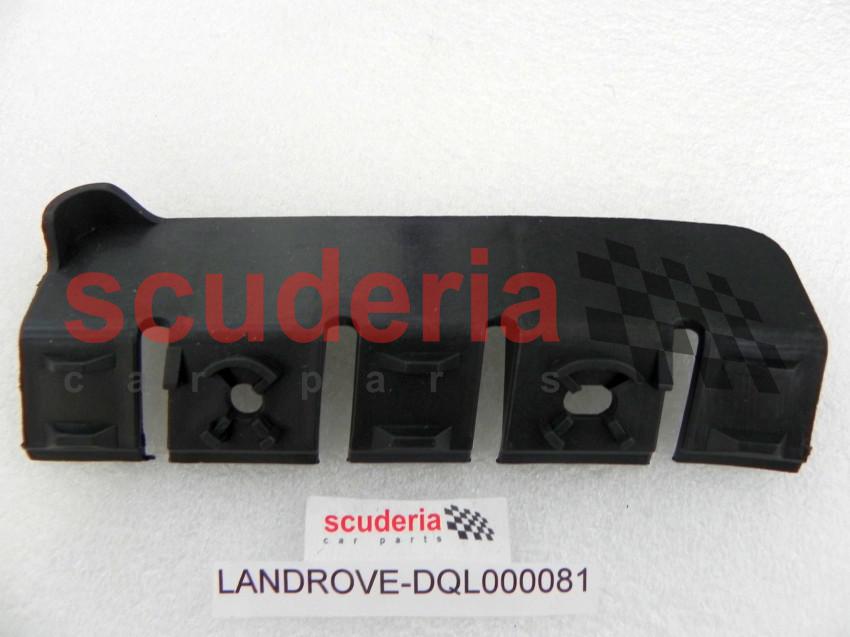

DQL000081 BRACKET - BUMPER MOUNTING $39.97 IN STOCK
DQL000091 BRACKET - BUMPER MOUNTING $39.97 IN STOCK
Photo Part No Description Price (each) Stock

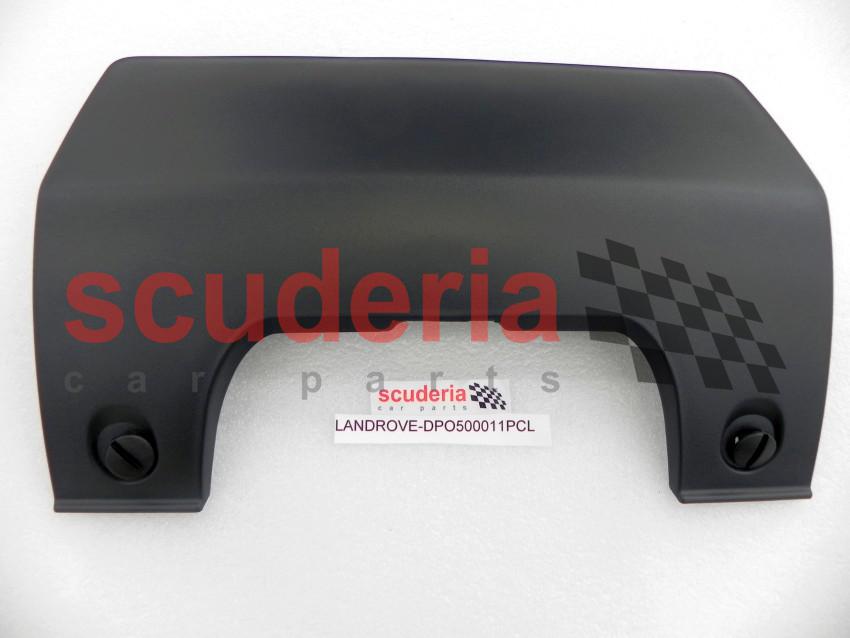

DPO500011PCL MOULDING - BUMPER PROTECTION $44.85 To Order
Photo Part No Description Price (each) Stock
XFF500020 REFLECTOR $84.29 IN STOCK
XFF500030 REFLECTOR $84.29 IN STOCK
Photo Part No Description Price (each) Stock
LR010132 PAD - BUMPER $43.38 IN STOCK
Photo Part No Description Price (each) Stock
DOE500020 INSERT $45.75 To Order
Photo Part No Description Price (each) Stock
LR015463 BUMPER - REAR $518.61 IN STOCK
LR015464 BUMPER - REAR $751.00 To Order
DPO000031PCL BUMPER - REAR $656.32 To Order
Photo Part No Description Price (each) Stock
LR015453 BRACKET - RETENTION $7.48 To Order
Photo Part No Description Price (each) Stock
LR015460 BRACKET - RETENTION $7.83 To Order
LR017351 BRACKET - RETENTION $8.61 To Order
Photo Part No Description Price (each) Stock
DQL000061 BRACKET - BUMPER MOUNTING $46.74 To Order
DQL000071 BRACKET - BUMPER MOUNTING $51.43 To Order
Photo Part No Description Price (each) Stock
DQG000063 BRACKET - BUMPER MOUNTING $52.99 To Order
DQG000073 BRACKET - BUMPER MOUNTING $52.99 To Order
View All

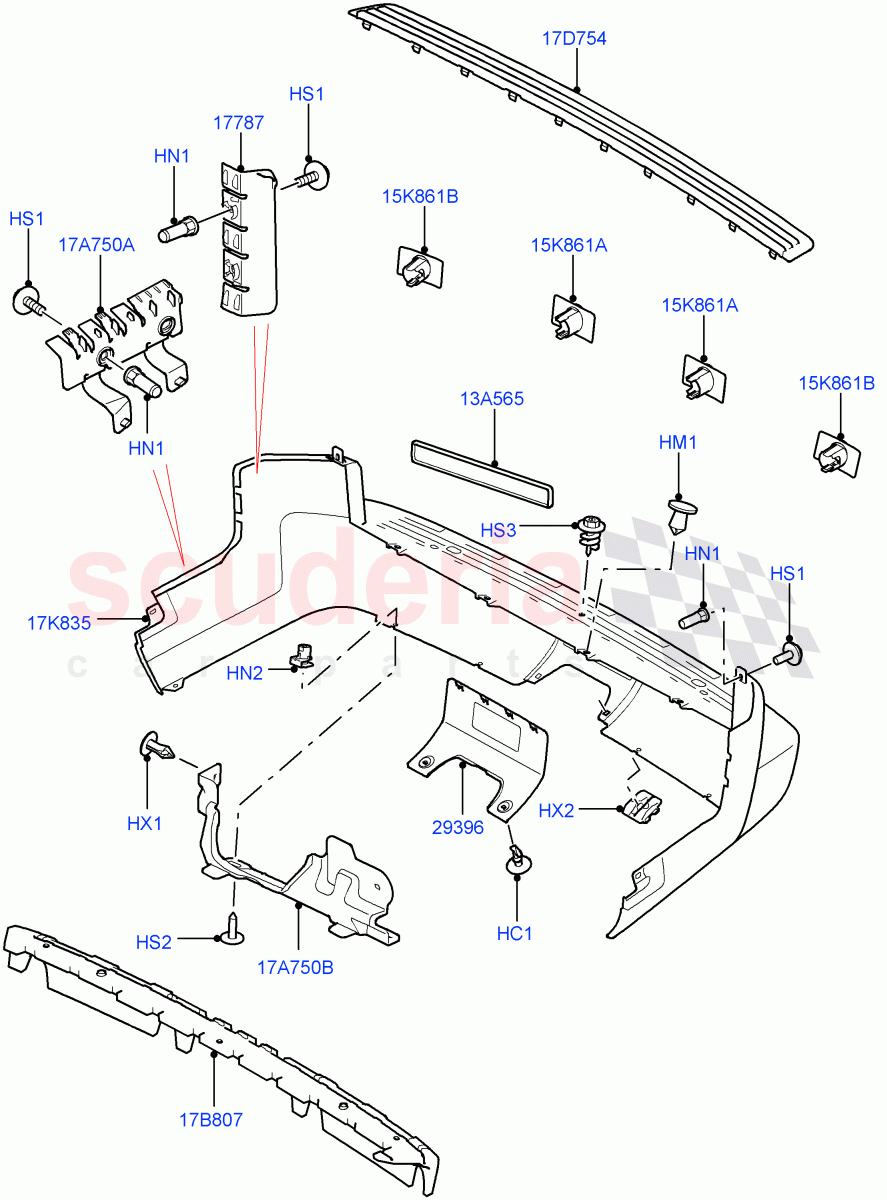

Rear Bumper ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 DYR500010
STUD
1/4 Turn Click Type / From: AA000001
IN STOCK 		$2.15 2
HM1 ANR2224
HARDWARE - MISCELLANEOUS
8 X 20MM, On Body, Pin / From: AA000001 		$2.66 4
HN1 DYH500010
NUT
Bracket, M6, Side / From: AA000001 		$3.59 2
HN2 DYH500110
NUT
7mm Diameter Holes, Bumper, Plastic / From: AA000001 		$1.63 2
HS1 RYG501590
SCREW
Bracket, M6 x 22MM, Side, Torx / From: AA000001
IN STOCK 		$0.99 2
HS2 LR106494
SCREW
Bracket, Centre, M5 x 20MM, Self Tapping / From: AA000001
IN STOCK 		$2.24 2
HS3 DYP500030
SCREW
Plastic, Torx / From: AA000001
IN STOCK 		$1.75 3
HX1 AWR3994
RETAINER
6.3 X 22MM, Push Pin / From: AA000001 / To: BA593799 		$3.96 4
HX1 RYQ500070
PIN - RETAINING 6.3 X 22MM
6.3 X 22MM, Push Pin / From: BA593800
IN STOCK 		$1.50 4
HX2 DYF500010
RETAINER
1/4 Turn Click Type, Bumper / From: AA000001
IN STOCK 		$2.03 2
13A565 XFF500020
REFLECTOR
RH / From: AA000001
IN STOCK 		$84.29 1
13A565 XFF500030
REFLECTOR
LH / From: AA000001
IN STOCK 		$84.29 1
15K861A LR015453
BRACKET - RETENTION
Centre, PDC / From: AA000001 		$7.48 1
15K861B LR015460
BRACKET - RETENTION
RH, PDC / From: AA000001 		$7.83 1
15K861B LR017351
BRACKET - RETENTION
LH, PDC / From: AA000001 		$8.61 1
17A750A DQL000061
BRACKET - BUMPER MOUNTING
RH, Side / From: AA000001 		$46.74 1
17A750A DQL000071
BRACKET - BUMPER MOUNTING
LH, Side / From: AA000001 		$51.43 1
17A750B DQG000063
BRACKET - BUMPER MOUNTING
RH, Centre / From: AA000001 		$52.99 1
17A750B DQG000073
BRACKET - BUMPER MOUNTING
LH, Centre / From: AA000001 		$52.99 1
17B807 LR010132
PAD - BUMPER
From: AA000001
IN STOCK 		$43.38 1
17D754 DOE500020
INSERT
Anthracite Black, Tread Mat / From: AA000001 		$45.75 1
17K835 LR015463
BUMPER - REAR
Rr Bumper Plastic Partially Painted, With Rear Parking Aid / Primed / From: AA000001
IN STOCK 		$518.61 1
17K835 LR015464
BUMPER - REAR
Rear Bumper - Plastic Unpainted, With Rear Parking Aid / Anthracite Black / From: AA000001 		$751.00 1
17K835 DPO000031PCL
BUMPER - REAR
Less Rear Parking Aid, Rear Bumper - Plastic Unpainted / Anthracite Black / From: AA000001 		$656.32 1
17787 DQL000081
BRACKET - BUMPER MOUNTING
RH / From: AA000001
IN STOCK 		$39.97 1
17787 DQL000091
BRACKET - BUMPER MOUNTING
LH / From: AA000001
IN STOCK 		$39.97 1
29396 DPO500011PCL
MOULDING - BUMPER PROTECTION
Anthracite Black, Towing Eye / From: AA000001 		$44.85 1
