Find Your Part

View All

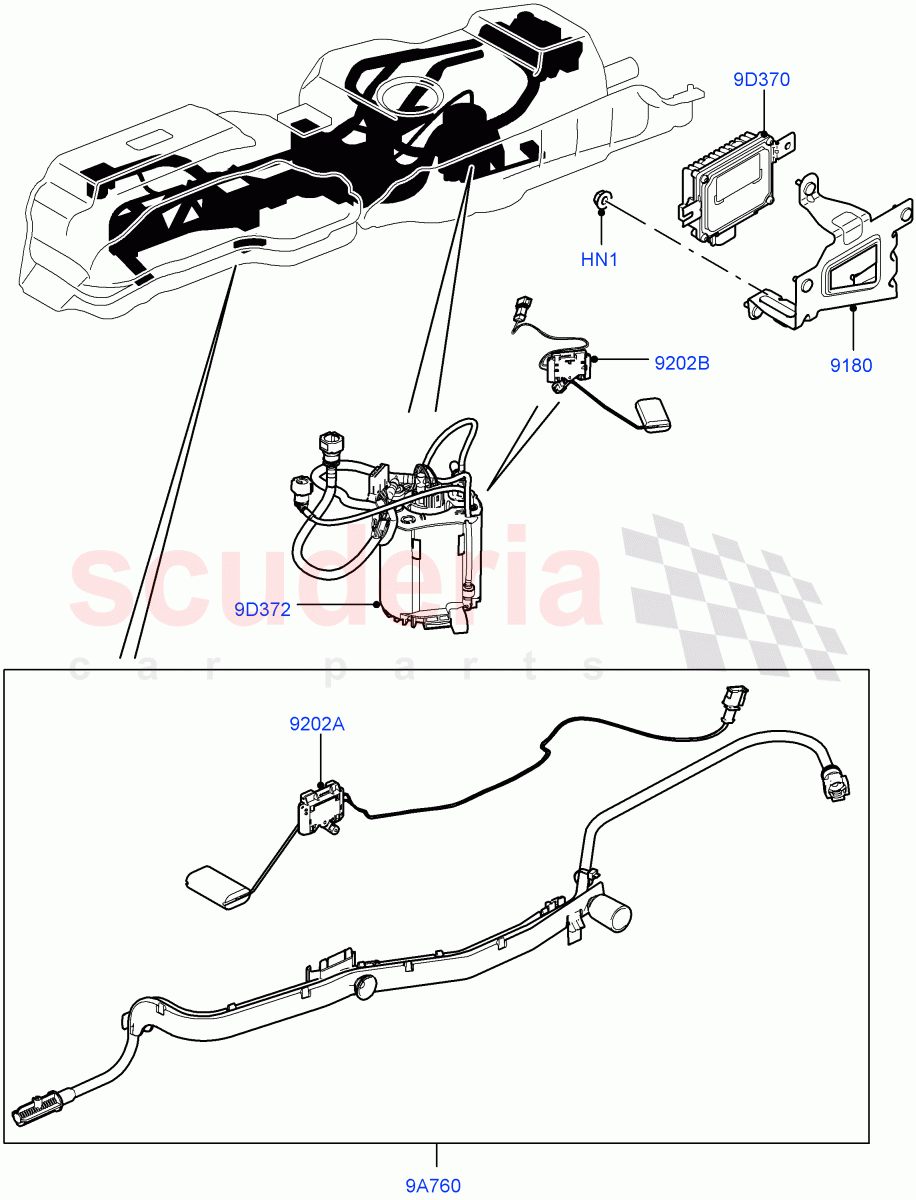

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR016187	BRACKET	$166.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042894	FLOAT	$146.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042971	FLOAT	$146.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042974	BRACKET - FUEL TANK	$126.78	To Order

Photo	Part No	Description	Price (each)	Stock
	WQM500020	CONTROL - FUEL PUMP DRIVE	$265.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043385	SENDER AND PUMP	$518.44	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 / From: EA000001 IN STOCK	$1.46	4
9A760	LR042974	BRACKET - FUEL TANK	LR042974 BRACKET - FUEL TANK With Fuel Sender / From: EA000001	$126.78	1
9D370	WQM500020	CONTROL - FUEL PUMP DRIVE	WQM500020 CONTROL - FUEL PUMP DRIVE For Fuel Pump / From: EA000001	$265.36	1
9D372	LR043385	SENDER AND PUMP	LR043385 SENDER AND PUMP From: EA000001	$518.44	1
9180	LR016187	BRACKET	LR016187 BRACKET From: EA000001	$166.11	1
9202A	LR042894	FLOAT	LR042894 FLOAT Front / From: EA000001	$146.16	1
9202B	LR042971	FLOAT	LR042971 FLOAT Rear / From: EA000001	$146.06	1
