Oil Pump (Solihull Plant Build) (3.0L Dohc Gdi Sc V6 Petrol) ((V) Fromfa000001)

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Oil Pump (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMFA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR062333 SCREW $2.41 To Order
Photo Part No Description Price (each) Stock
LR081669 O-RING $7.28 To Order
Photo Part No Description Price (each) Stock
LR011274 SCREW $2.60 To Order
Photo Part No Description Price (each) Stock
LR010904 SCREW $1.24 To Order
Photo Part No Description Price (each) Stock
4540794 SCREW $1.58 To Order
Photo Part No Description Price (each) Stock
LR054791 SCREW $5.54 To Order
Photo Part No Description Price (each) Stock
LR061968 PUMP - OIL $458.66 To Order
LR098386 PUMP - OIL $452.06 To Order
Photo Part No Description Price (each) Stock
LR011311 TUBE - OIL PUMP INLET $158.90 To Order
Photo Part No Description Price (each) Stock
LR011205 O-RING $9.02 To Order
Photo Part No Description Price (each) Stock
LR011213 O-RING $8.27 To Order
Photo Part No Description Price (each) Stock
LR011218 SPROCKET - OIL PUMP DRIVE $13.78 To Order
Photo Part No Description Price (each) Stock
LR033676 TUBE - OIL PUMP OUTLET $83.50 To Order
View All

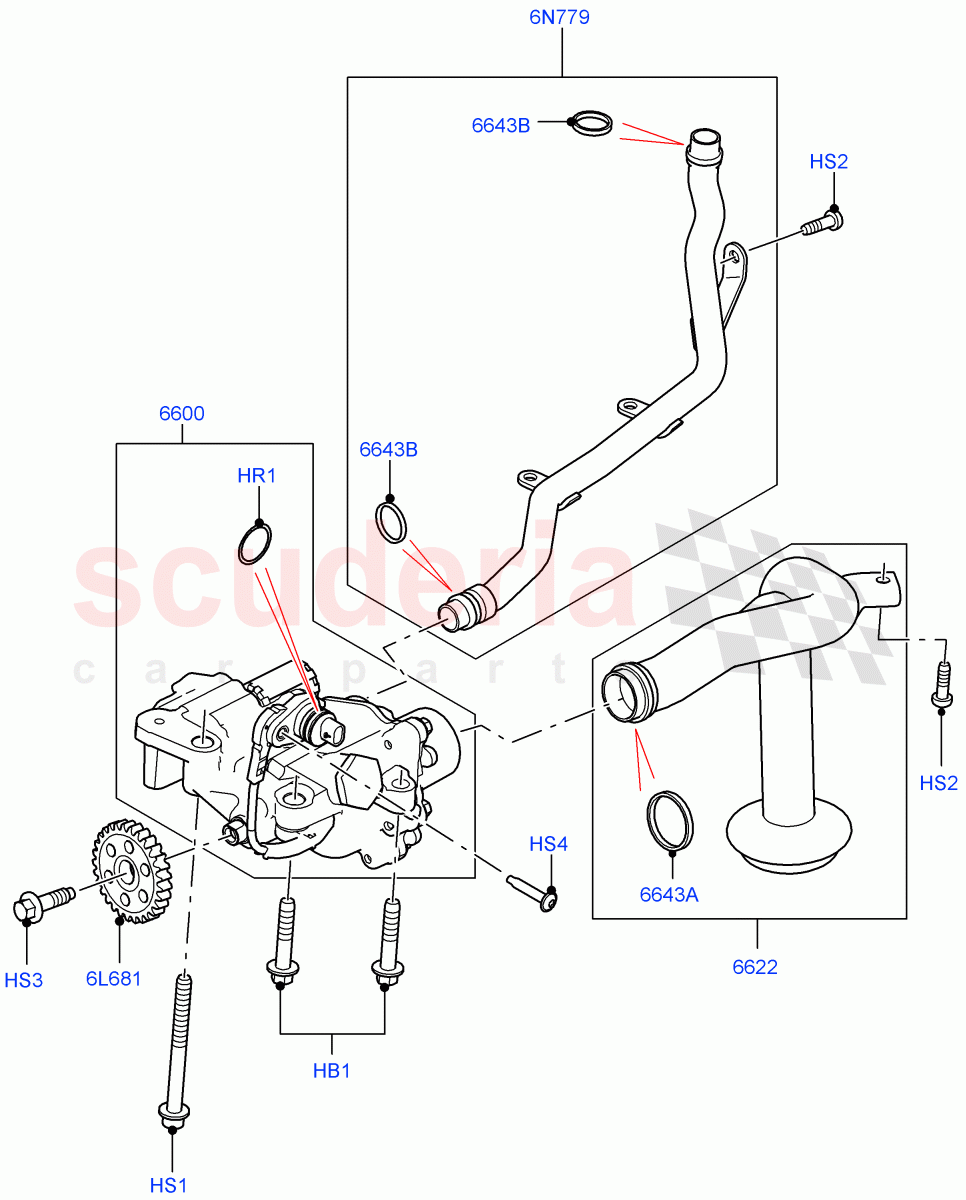

Oil Pump (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMFA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR062333
SCREW
M8 x 50MM, Oil Pump / From: FA000001 		$2.41 2
HR1 LR081669
O-RING
20.85, Connector, Outside Diameter / From: FA000001 		$7.28 2
HS1 LR011274
SCREW
Oil Pump / From: FA000001 		$2.60 1
HS2 LR010904
SCREW
M6 X 20MM / From: FA000001 		$1.24 5
HS3 4540794
SCREW
M8 X 25MM, Sprocket - Drive / From: FA000001 		$1.58 1
HS4 LR054791
SCREW
M6 x 30MM, Wiring Connector / From: FA000001 		$5.54 1
6L681 LR011218
SPROCKET - OIL PUMP DRIVE
Oil Pump Drive / From: FA000001 		$13.78 1
6N779 LR033676
TUBE - OIL PUMP OUTLET
From: FA000001 		$83.50 1
6600 LR061968
PUMP - OIL
From: FA000001 / To: GA837164 		$458.66 1
6600 LR098386
PUMP - OIL
From: GA837165 		$452.06 1
6622 LR011311
TUBE - OIL PUMP INLET
From: FA000001 		$158.90 1
6643A LR011205
O-RING
Seal Pump Inlet Tube / From: FA000001 		$9.02 1
6643B LR011213
O-RING 		$8.27 2
