Vacuum Control And Air Injection (3.0L Dohc Gdi Sc V6 Petrol, Rhd) ((V) Fromea000001)

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Vacuum Control And Air Injection (3.0L DOHC GDI SC V6 PETROL, RHD) ((V) FROMEA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR009660 CLIP $1.79 IN STOCK
Photo Part No Description Price (each) Stock
LR000395 CLIP - DOUBLE $1.11 To Order
Photo Part No Description Price (each) Stock
LR011273 SCREW $3.55 IN STOCK
LR060479 SCREW $4.33 To Order
Photo Part No Description Price (each) Stock
LR048796 PUMP - VACUUM $466.88 To Order
LR082226 PUMP - VACUUM $468.37 To Order
Photo Part No Description Price (each) Stock
LR012685 SEAL - VACUUM PUMP $20.93 To Order
Photo Part No Description Price (each) Stock
LR052584 MANIFOLD - VACUUM SUPPLY $61.70 To Order
Photo Part No Description Price (each) Stock
LR052586 HOSE - VACUUM $47.47 To Order
Photo Part No Description Price (each) Stock
LR041668 HOSE - VACUUM $58.39 To Order
LR105285 HOSE - VACUUM $61.58 To Order
View All

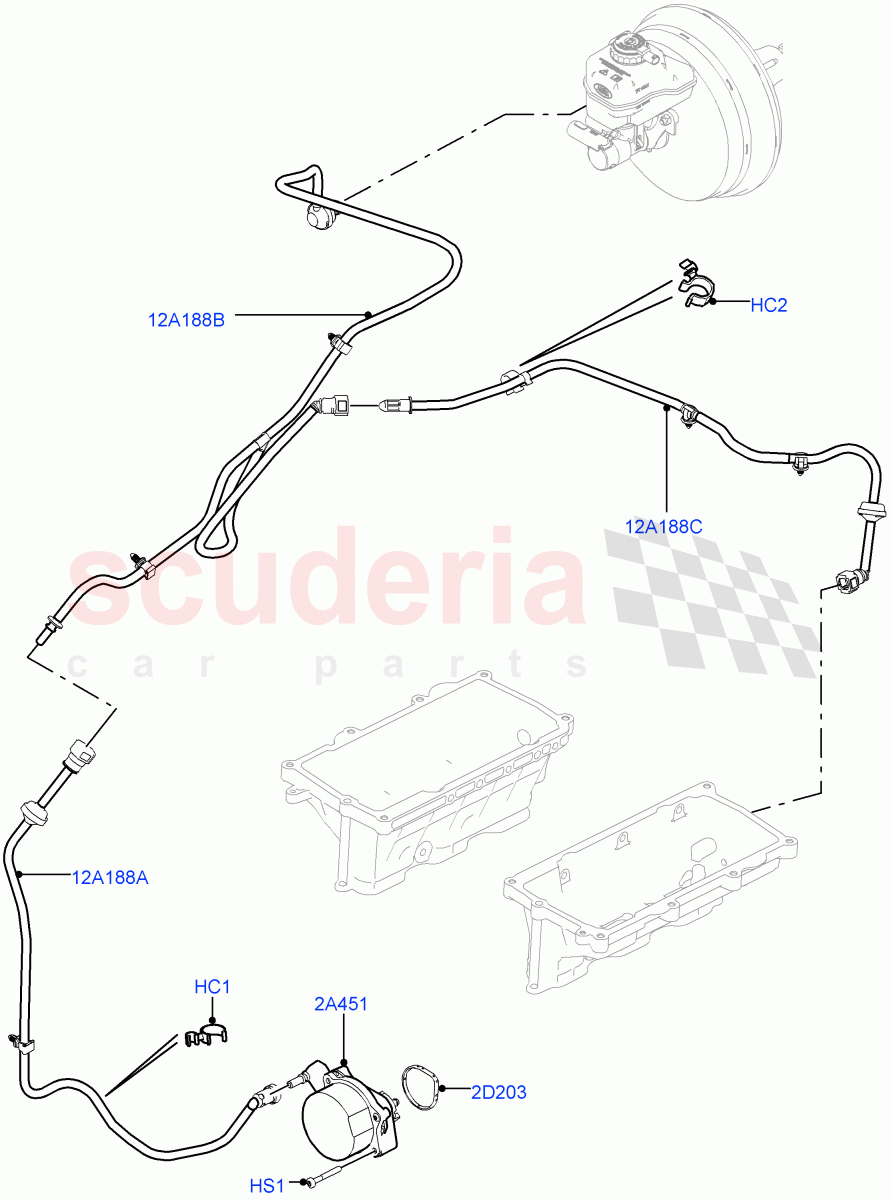

Vacuum Control And Air Injection (3.0L DOHC GDI SC V6 PETROL, RHD) ((V) FROMEA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR009660
CLIP
Double / From: EA000001
IN STOCK 		$1.79 1
HC2 LR000395
CLIP - DOUBLE
Double / From: EA000001 		$1.11 1
HS1 LR011273
SCREW
M6 X 45MM, Pump - Vacuum / From: EA000001 / To: EA999999
IN STOCK 		$3.55 2
HS1 LR060479
SCREW
M6 X 65MM, Pump - Vacuum / From: FA000001 		$4.33 2
2A451 LR048796
PUMP - VACUUM
From: EA000001 / To: EA999999 		$466.88 1
2A451 LR082226
PUMP - VACUUM
From: FA000001 		$468.37 1
2D203 LR012685
SEAL - VACUUM PUMP
From: EA000001 		$20.93 1
12A188A LR052584
MANIFOLD - VACUUM SUPPLY
Pump - Vacuum / From: EA000001 		$61.70 1
12A188B LR052586
HOSE - VACUUM
To Brake Booster / From: EA000001 		$47.47 1
12A188C LR041668
HOSE - VACUUM
Vacuum Pump To Inlet Manifold / From: EA000001 / To: EA999999 		$58.39 1
12A188C LR105285
HOSE - VACUUM
Vacuum Pump To Inlet Manifold / From: FA000001 		$61.58 1
