Front Seat Base (Manual Seat) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Front Seat Base (Manual Seat) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
HYG500090 BOLT - SELF-SHEARING $1.13 To Order
Photo Part No Description Price (each) Stock
BTR2710 BOLT $3.60 IN STOCK
Photo Part No Description Price (each) Stock
HYG500220 BOLT $19.51 To Order
Photo Part No Description Price (each) Stock
LR003719 BOLT $0.59 To Order
Photo Part No Description Price (each) Stock
RYQ500040 FASTENER $0.61 IN STOCK
Photo Part No Description Price (each) Stock
HYQ500020 RIVET $0.47 To Order
Photo Part No Description Price (each) Stock
HYQ500030 RIVET $0.47 To Order
Photo Part No Description Price (each) Stock
HFD500160 BRACKET $3.63 To Order
Photo Part No Description Price (each) Stock
HHP500022PVJ HANDLE - SEAT ADJUST $8.80 To Order
HHP500032PVJ HANDLE - SEAT ADJUST $9.81 To Order
Photo Part No Description Price (each) Stock
LR003007 BRACKET $10.93 To Order
LR003008 BRACKET $10.93 To Order
Photo Part No Description Price (each) Stock
YDB500380 SENSOR - BODY WEIGHT - AIRBAG $107.32 To Order
Photo Part No Description Price (each) Stock
HJX500042PVJ MOULDING - SEAT VALANCE $6.80 To Order
HJX500052PVJ MOULDING - SEAT VALANCE $27.38 To Order
Photo Part No Description Price (each) Stock
HJX500062PVJ MOULDING - SEAT VALANCE $26.68 To Order
HJX500072PVJ MOULDING - SEAT VALANCE $26.68 To Order
Photo Part No Description Price (each) Stock
HJX500082PVJ MOULDING - SEAT VALANCE $6.96 To Order
HJX500092PVJ MOULDING - SEAT VALANCE $6.96 To Order
Photo Part No Description Price (each) Stock
HJX500102PVJ MOULDING - SEAT VALANCE $39.36 To Order
HJX500112PVJ MOULDING - SEAT VALANCE $39.36 To Order
Photo Part No Description Price (each) Stock
LR025681 ADJUSTER - SEAT WITH HEIGHT ADJUST $65.29 To Order
LR025682 ADJUSTER - SEAT WITH HEIGHT ADJUST $68.87 To Order
Photo Part No Description Price (each) Stock
LR017008 FRAME $646.69 To Order
LR017009 FRAME $537.25 To Order
LR017006 FRAME $699.75 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
HHE500020 FRAME $292.62 To Order
HHE500030 FRAME $274.49 To Order
Photo Part No Description Price (each) Stock
HFF500012 FRAME $95.02 To Order
View All

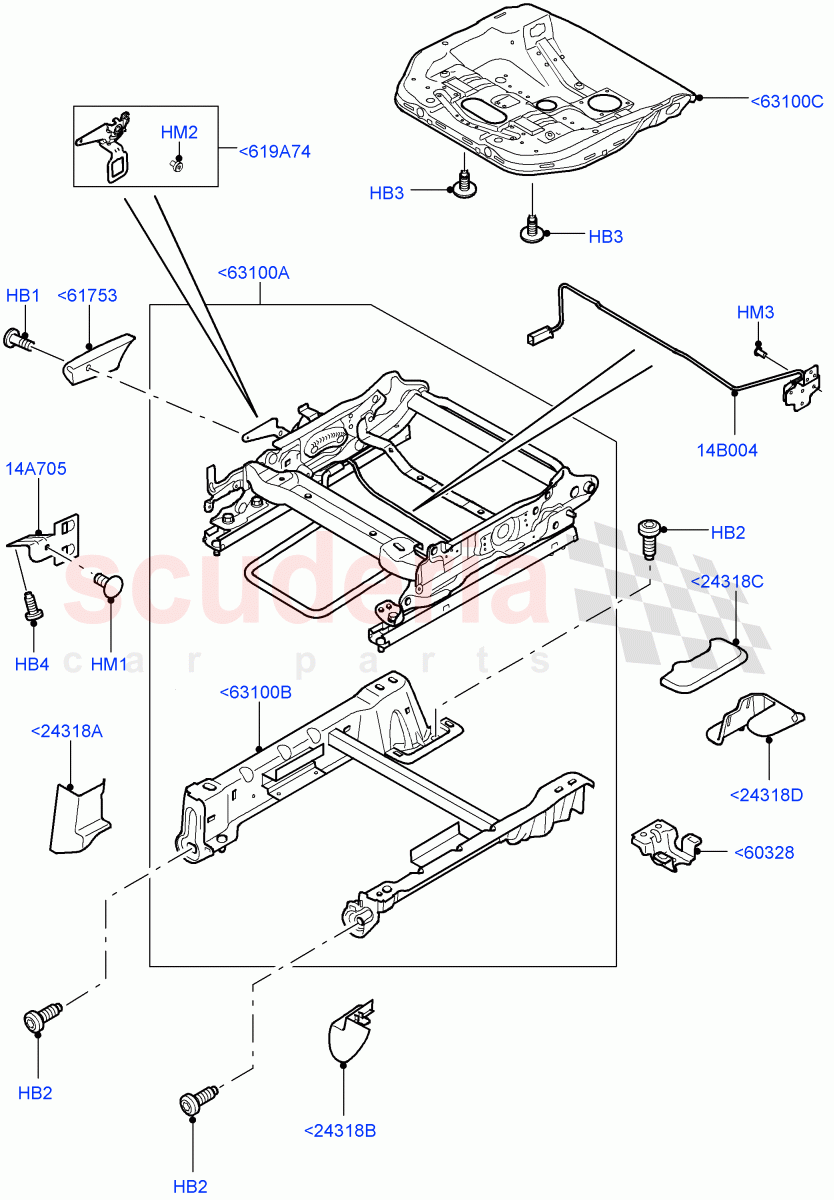

Front Seat Base (Manual Seat) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<619A74 LR025681
ADJUSTER - SEAT WITH HEIGHT ADJUST
Manual Front Seat Adj Driver & Pass / RH / From: AA000001 		$65.29 1
<619A74 LR025682
ADJUSTER - SEAT WITH HEIGHT ADJUST
Manual Front Seat Adj Driver & Pass / LH / From: AA000001 		$68.87 1
<24318A HJX500042PVJ
MOULDING - SEAT VALANCE
RH, Front Outer / From: AA000001 		$6.80 1
<24318A HJX500052PVJ
MOULDING - SEAT VALANCE
LH, Front Outer / From: AA000001 		$27.38 1
<24318B HJX500062PVJ
MOULDING - SEAT VALANCE
RH, Front Inner / From: AA000001 		$26.68 1
<24318B HJX500072PVJ
MOULDING - SEAT VALANCE
LH, Front Inner / From: AA000001 		$26.68 1
<24318C HJX500082PVJ
MOULDING - SEAT VALANCE
Rear Outer, RH Seat / From: AA000001 		$6.96 1
<24318C HJX500092PVJ
MOULDING - SEAT VALANCE
LH Seat, Rear Outer / From: AA000001 		$6.96 1
<24318D HJX500102PVJ
MOULDING - SEAT VALANCE
Inner, LH Seat, Rear / From: AA000001 		$39.36 1
<24318D HJX500112PVJ
MOULDING - SEAT VALANCE
Inner, Rear, RH Seat / From: AA000001 		$39.36 1
<60328 HFD500160
BRACKET
From: AA000001 		$3.63 2
<61753 HHP500022PVJ
HANDLE - SEAT ADJUST
RH, Vertical Adjustment / From: AA000001 		$8.80 1
<61753 HHP500032PVJ
HANDLE - SEAT ADJUST
LH, Vertical Adjustment / From: AA000001 		$9.81 1
<63100A LR017008
FRAME
Manual Front Seat Adj Driver & Pass, RHD / LH / From: AA000001 		$646.69 1
<63100A LR017009
FRAME
LHD, Manual Front Seat Adj Driver & Pass / LH / From: AA000001 		$537.25 1
<63100A LR017006
FRAME
LHD, Manual Front Seat Adj Driver & Pass / RH / From: AA000001 		$699.75 1
<63100A LR017007
FRAME
Manual Front Seat Adj Driver & Pass, RHD / RH / From: AA000001 		$602.15 1
<63100B HHE500020
FRAME
RH / From: AA000001 		$292.62 1
<63100B HHE500030
FRAME
LH / From: AA000001 		$274.49 1
<63100C HFF500012
FRAME
Not For Use With NAS Passenger Seat / From: AA000001 		$95.02 2
HB1 HYG500090
BOLT - SELF-SHEARING
M4 x 16MM / From: AA000001 		$1.13 1
HB2 BTR2710
BOLT
M10 X 1.5, Torx / From: AA000001
IN STOCK 		$3.60 -
HB3 HYG500220
BOLT
M8 / From: AA000001 		$19.51 8
HB4 LR003719
BOLT
M4 x 8MM / From: AA000001 		$0.59 1
HM1 RYQ500040
FASTENER
6.25 x 1.6/6MM / From: AA000001
IN STOCK 		$0.61 1
HM2 HYQ500020
RIVET
Rivet / From: AA000001 		$0.47 4
HM3 HYQ500030
RIVET
Rivet / From: AA000001 		$0.47 2
14A705 LR003007
BRACKET
With Heated Seats - Front/Rear / LH / From: AA000001 		$10.93 1
14A705 LR003008
BRACKET
With Heated Seats - Front/Rear / RH / From: AA000001 		$10.93 1
14B004 YDB500380
SENSOR - BODY WEIGHT - AIRBAG
Seat Position Sensor - Driver Air Bag / From: AA000001 		$107.32 1
