Console - Floor (Internal Components, For Carrier Assy) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Console - Floor (Internal Components, For Carrier Assy) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN106047L NUT - FLANGED $1.79 IN STOCK
Photo Part No Description Price (each) Stock
FYP500420 SCREW $2.12 To Order
Photo Part No Description Price (each) Stock
FYP500210 SCREW $1.15 To Order
Photo Part No Description Price (each) Stock
FHC500090 BRACKET - CONSOLE $21.44 To Order
Photo Part No Description Price (each) Stock
FJG500032PVJ COVER - FRONT CONSOLE PANEL $70.12 To Order
Photo Part No Description Price (each) Stock
LR017020 CONSOLE $370.79 To Order
Photo Part No Description Price (each) Stock
LR013449 COVER - CONSOLE FIXING $115.84 To Order
LR021377 COVER - CONSOLE FIXING $386.06 To Order
LR029760 COVER - CONSOLE FIXING $155.33 To Order
View All

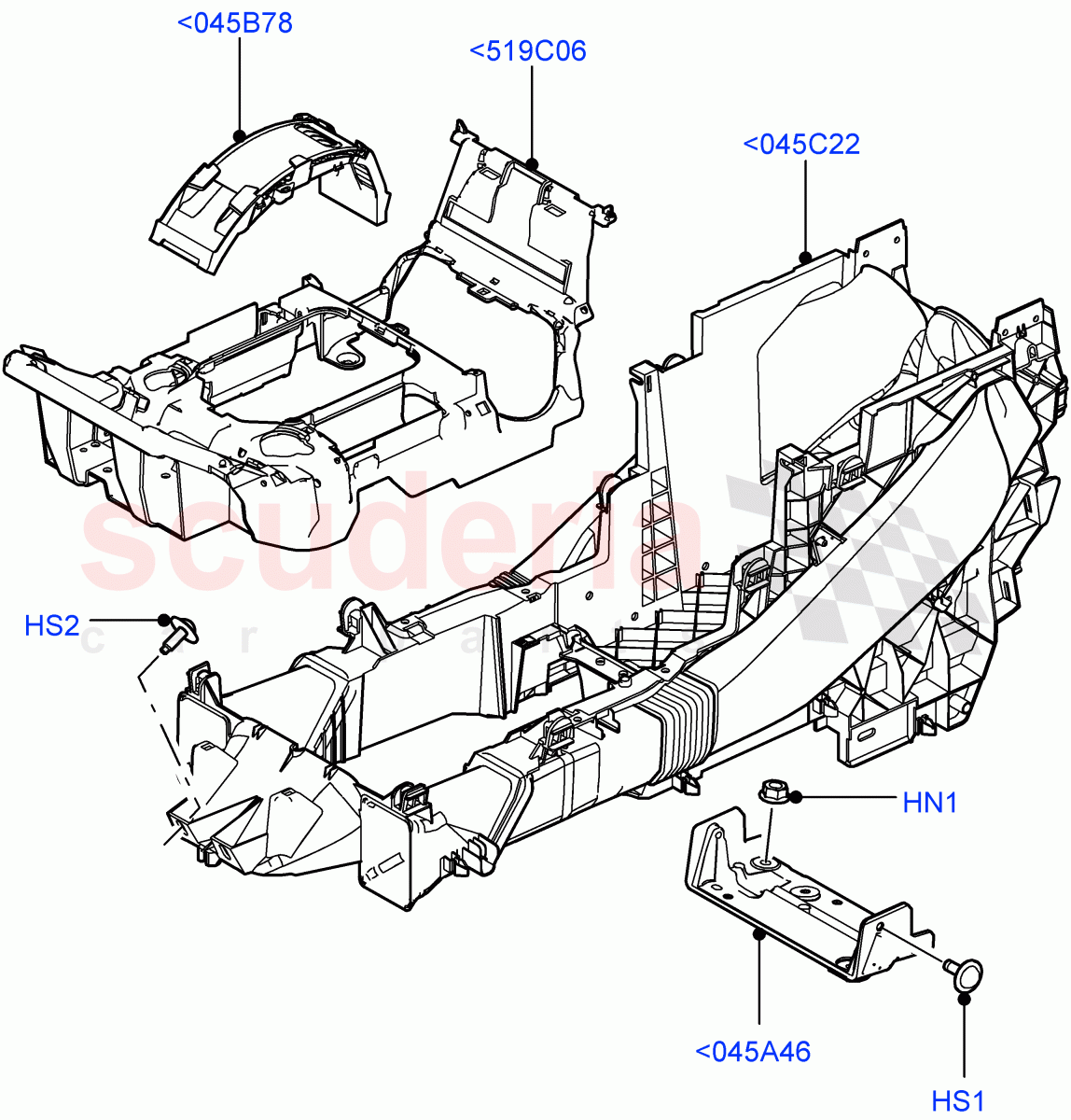

Console - Floor (Internal Components, For Carrier Assy) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<045A46 FHC500090
BRACKET - CONSOLE
Mounting Bracket / From: AA000001 		$21.44 1
<045B78 FJG500032PVJ
COVER - FRONT CONSOLE PANEL
6 Speed Auto Transmission ZF 6HP28 / Ebony Black / From: AA000001 		$70.12 1
<045C22 LR017020
CONSOLE
With Air Ducts / From: AA000001 		$370.79 1
<519C06 LR013449
COVER - CONSOLE FIXING
From: AA000001 / To: AA520261 		$115.84 1
<519C06 LR021377
COVER - CONSOLE FIXING
6 Speed Auto ZF 6HP26 Steptronic / From: AA520262 		$386.06 1
<519C06 LR029760
COVER - CONSOLE FIXING
8 Speed Auto Trans ZF 8HP70 4WD / From: CA000001 		$155.33 1
HN1 FN106047L
NUT - FLANGED
M6, Mounting Bracket / From: AA000001
IN STOCK 		$1.79 4
HS1 FYP500420
SCREW
M6, Mounting Bracket, Screw And Washer / From: AA000001 		$2.12 2
HS2 FYP500210
SCREW
Console Front, M6, Torx / From: AA000001 		$1.15 2
