Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Air Conditioning System (Front) (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB106066 BOLT $0.67 IN STOCK
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. $1.97 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.47 IN STOCK
Photo Part No Description Price (each) Stock
RYH500690 Nut Enquire To Order
Photo Part No Description Price (each) Stock
LR002720 O-RING $4.89 To Order
Photo Part No Description Price (each) Stock
LR001924 O-RING $7.84 IN STOCK
Photo Part No Description Price (each) Stock
LR002721 O-RING $6.64 To Order
Photo Part No Description Price (each) Stock
LR002719 O-RING $4.40 To Order
Photo Part No Description Price (each) Stock
FS106256 SCREW $0.43 To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
JYP500110 SCREW $1.13 To Order
Photo Part No Description Price (each) Stock
LR010849 BRACKET $8.02 To Order
Photo Part No Description Price (each) Stock
LR013868 HOSE - AIR CONDITIONING $98.73 To Order
Photo Part No Description Price (each) Stock
LR013876 HOSE - AIR CONDITIONING $202.81 To Order
LR019676 HOSE - AIR CONDITIONING $202.81 To Order
Photo Part No Description Price (each) Stock
LR014460 HOSE - AIR CONDITIONING $129.32 To Order
Photo Part No Description Price (each) Stock
LR014461 HOSE - AIR CONDITIONING $180.35 To Order
Photo Part No Description Price (each) Stock
LR013879 HOSE - AIR CONDITIONING $224.43 To Order
Photo Part No Description Price (each) Stock
LR013851 CLIP $88.00 To Order
Photo Part No Description Price (each) Stock
JTE000010 SWITCH $102.05 To Order
Photo Part No Description Price (each) Stock
LR023246 CAP $23.51 To Order
Photo Part No Description Price (each) Stock
JUU500020 O-RING $9.22 To Order
LR031797 O-RING $8.50 To Order
Photo Part No Description Price (each) Stock
JUU500040 O-RING $4.96 To Order
LR031798 O-RING $8.40 To Order
Photo Part No Description Price (each) Stock
JUU500010 O-RING $9.88 To Order
Photo Part No Description Price (each) Stock
JUU500030 O-RING $9.88 To Order
View All

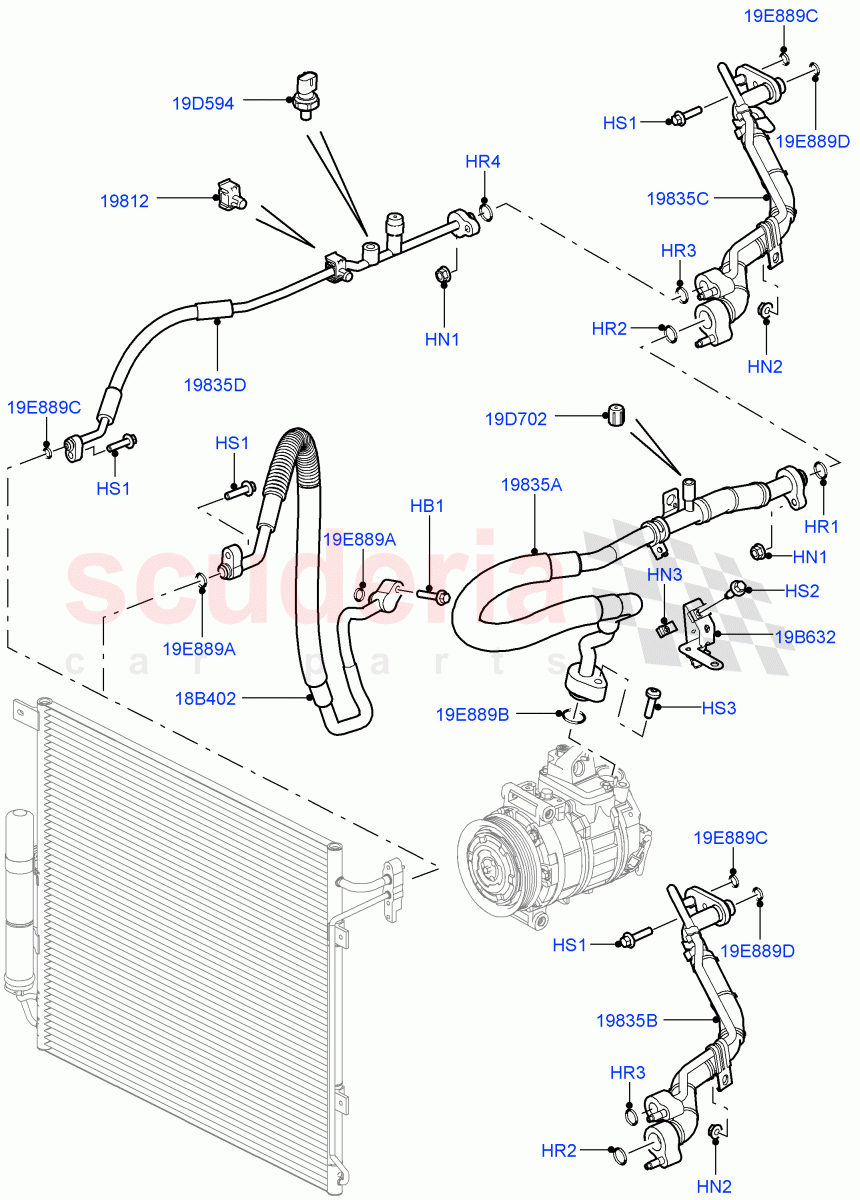

Air Conditioning System (Front) (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FB106066
BOLT
M6 x 30MM / From: AA000001
IN STOCK 		$0.67 1
HN1 FN108046
NUT - HEX.
Hexagonal Head, M8 / From: AA000001 		$1.97 2
HN2 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: AA000001
IN STOCK 		$1.47 1
HN3 RYH500690
Nut
U-Nut M6 X 0.8 - 4.0 / From: AA000001 		- 1 Enquire
HR1 LR002720
O-RING
16.25 X 2.5MM / From: AA000001 		$4.89 1
HR2 LR001924
O-RING
26.3 x 3mm, Orange / From: AA000001
IN STOCK 		$7.84 1
HR3 LR002721
O-RING
19.2 X 3MM / From: AA000001 		$6.64 1
HR4 LR002719
O-RING
9.5 X 2.5MM / From: AA000001 		$4.40 1
HS1 FS106256
SCREW
M6 x 25MM / From: AA000001 		$0.43 3
HS2 FS106166
SCREW
Hexagonal Head, M6 X 16MM / From: AA000001
IN STOCK 		$1.24 1
HS3 JYP500110
SCREW
M8 x 30MM / From: AA000001 		$1.13 1
18B402 LR013868
HOSE - AIR CONDITIONING
Compressor To Condenser, Includes O-Ring / From: AA000001 		$98.73 1
19B632 LR013851
CLIP
From: AA000001 		$88.00 1
19D594 JTE000010
SWITCH
Pressure / From: AA000001 		$102.05 1
19D702 LR023246
CAP
From: AA000001 		$23.51 1
19E889A JUU500020
O-RING
From: AA000001 / To: BA584130 		$9.22 2
19E889A LR031797
O-RING
10.6 x 2.4MM / From: BA584131 		$8.50 2
19E889B JUU500040
O-RING
From: AA000001 / To: AA515353 		$4.96 1
19E889B LR031798
O-RING 		$8.40 1
19E889C JUU500010
O-RING
From: AA000001 		$9.88 2
19E889D JUU500030
O-RING
From: AA000001 		$9.88 1
19812 LR010849
BRACKET
From: AA000001 		$8.02 1
19835A LR013876
HOSE - AIR CONDITIONING
Air Conditioning Evaporator To Compressor, Includes O-Ring / From: AA000001 / To: AA515353 		$202.81 1
19835A LR019676
HOSE - AIR CONDITIONING
Air Conditioning Evaporator To Compressor, Includes O-Ring / From: AA515354 		$202.81 1
19835B LR014460
HOSE - AIR CONDITIONING
Less Rear Seat Climate Control / Includes O-Ring, To Evaporator / From: AA000001 		$129.32 1
19835C LR014461
HOSE - AIR CONDITIONING
With Rear Seat Climate Control / Includes O-Ring, To Evaporator / From: AA000001 		$180.35 1
19835D LR013879
HOSE - AIR CONDITIONING
Condenser To Evaporator, Includes O-Ring, With Sensor / From: AA000001 		$224.43 1
