Fuel Lines (3.0 V6 Diesel) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Fuel Lines (3.0 V6 Diesel) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
WYP500100 SCREW $0.79 To Order
Photo Part No Description Price (each) Stock
WYC500081 CLIP $5.36 To Order
Photo Part No Description Price (each) Stock
WYC100880 CLIP $1.36 To Order
Photo Part No Description Price (each) Stock
KYC500020 CLIP $5.96 To Order
Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED $1.63 IN STOCK
Photo Part No Description Price (each) Stock
AWR6715 NUT - SPECIAL $4.44 IN STOCK
Photo Part No Description Price (each) Stock
FS106257 Screw $0.15 To Order
Photo Part No Description Price (each) Stock
FA106126 SCREW $0.47 IN STOCK
Photo Part No Description Price (each) Stock
KYG500380 SCREW AND WASHER - HEX HEAD $0.36 IN STOCK
Photo Part No Description Price (each) Stock
LR015422 HOSE - FUEL COOLER $257.94 To Order
Photo Part No Description Price (each) Stock
LR009705 ELEMENT - FUEL FILTER $97.50 To Order
Photo Part No Description Price (each) Stock
WKD500140 CONNECTOR - CABLE $5.68 To Order
Photo Part No Description Price (each) Stock
LR015980 BRACKET $9.74 To Order
Photo Part No Description Price (each) Stock
WKU500150 SHIELD - FUEL TUBES $7.30 To Order
Photo Part No Description Price (each) Stock
LR015396 TUBE $314.07 To Order
LR015395 TUBE $403.77 To Order
LR021659 TUBE $356.12 To Order
...and 15 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR015421 TUBE - FUEL RETURN $164.40 To Order
LR030556 TUBE - FUEL RETURN $94.18 To Order
LR015421 TUBE - FUEL RETURN $164.40 To Order
Photo Part No Description Price (each) Stock
WKW500080 SENSOR - WATER DETECTOR $142.91 To Order
Photo Part No Description Price (each) Stock
LR017446 TUBE - FUEL VAPOUR $248.55 To Order
Photo Part No Description Price (each) Stock
LR015416 TUBE $280.58 To Order
Photo Part No Description Price (each) Stock
LR010416 FILTER - FUEL $149.93 To Order
LR045519 FILTER - FUEL $166.35 To Order
Photo Part No Description Price (each) Stock
LR015417 SHIELD $74.71 To Order
LR031389 Shield - Fuel Tubes Enquire To Order
LR031785 SHIELD - FUEL TUBES $66.16 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
WKU500090 SHIELD $15.08 To Order
Photo Part No Description Price (each) Stock
WJP502390 TUBE - FUEL FEED $91.54 To Order
LR028028 PIPE - FUEL $194.52 To Order
Photo Part No Description Price (each) Stock
WJP501042 TUBE - FUEL FEED $87.05 To Order
View All

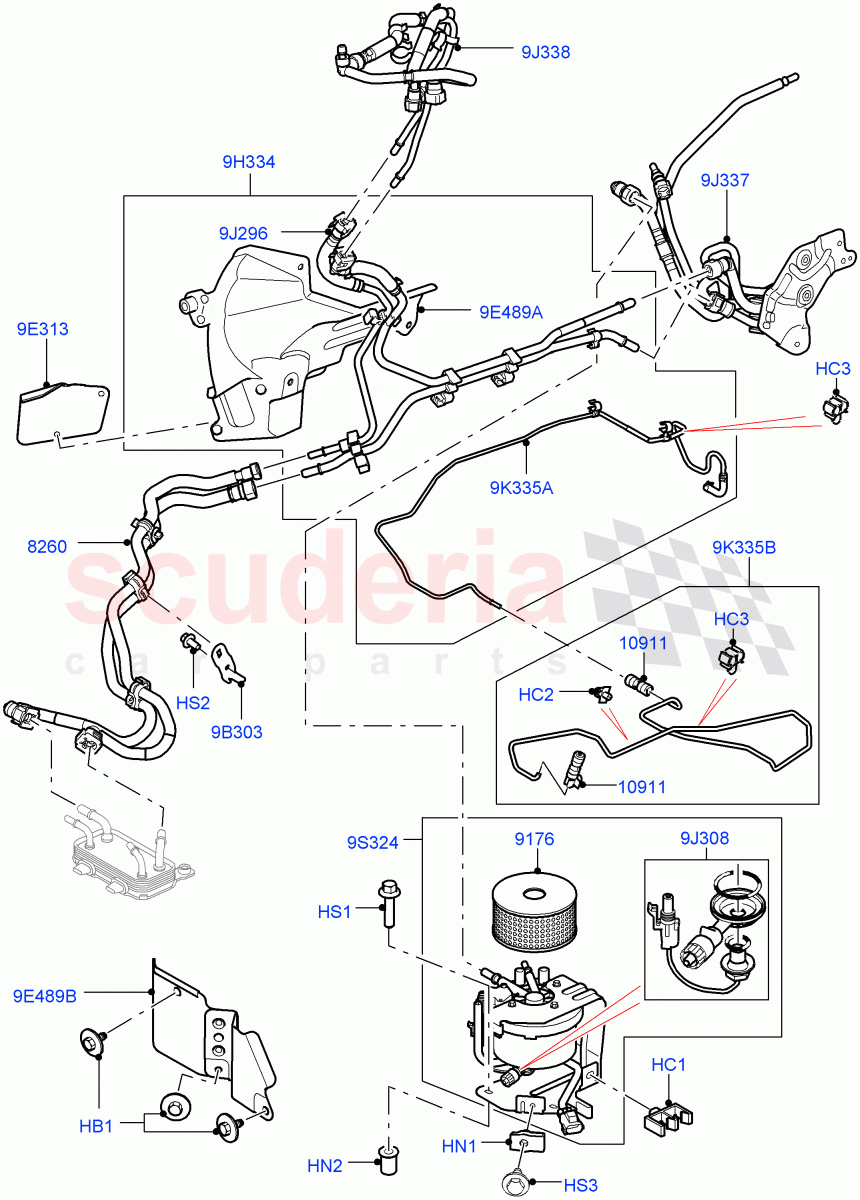

Fuel Lines (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 WYP500100
SCREW
Hexagonal Head, M6 / From: AA000001 		$0.79 3
HC1 WYC500081
CLIP
Double, For 		$5.36 1
HC2 WYC100880
CLIP
With Fuel Fired Heater / Tube Support 		$1.36 2
HC3 KYC500020
CLIP
With Fuel Fired Heater / For 		$5.96 -
HN1 LR000053
NUT - FLANGED
M6 / From: AA000001
IN STOCK 		$1.63 2
HN2 AWR6715
NUT - SPECIAL
M6 / From: AA000001
IN STOCK 		$4.44 2
HS1 FS106257
Screw
M6 X 25MM / From: AA000001 		$0.15 2
HS2 FA106126
SCREW
Hexagonal Head, M6 x 12MM / From: AA000001
IN STOCK 		$0.47 1
HS3 KYG500380
SCREW AND WASHER - HEX HEAD
Hexagonal Head, M6 X 13.5MM / From: AA000001
IN STOCK 		$0.36 3
9B303 LR015980
BRACKET
From: AA000001 		$9.74 1
9E313 WKU500150
SHIELD - FUEL TUBES
From: AA000001 		$7.30 1
9E489A LR015417
SHIELD
Under Floor / From: AA000001 / To: BA575852 		$74.71 1
9E489A LR031389
Shield - Fuel Tubes
Under Floor / From: BA575853 / To: BA581111 		- 1 Enquire
9E489A LR031785
SHIELD - FUEL TUBES
Under Floor / From: BA581112 / To: BA999999 		$66.16 1
9E489A LR030555
SHIELD - FUEL TUBES
8 Speed Auto Trans ZF 8HP70 4WD / Under Floor / From: CA000001 / To: DA663076 		$66.16 1
9E489A LR031785
SHIELD - FUEL TUBES
6 Speed Auto Transmission ZF 6HP28 / Under Floor / From: CA000001 / To: DA663076 		$66.16 1
9E489A LR047202
SHIELD - FUEL TUBES
6 Speed Auto Transmission ZF 6HP28 / Under Floor / From: DA663077 		$81.88 1
9E489A LR047211
SHIELD - FUEL TUBES
8 Speed Auto Trans ZF 8HP70 4WD / Under Floor / From: DA663077 		$66.19 1
9E489B WKU500090
SHIELD
From: AA000001 		$15.08 1
9H334 LR015396
TUBE
With Fresh Air Heater / Return, Supply, Under Floor / From: AA000001 / To: BA573685 		$314.07 1
9H334 LR015395
TUBE
With Fuel Fired Heater / Return, Supply, Under Floor / From: AA000001 / To: AA530094 		$403.77 1
9H334 LR021659
TUBE
With Fuel Fired Heater / Return, Supply, Under Floor / From: AA530095 / To: BA573685 		$356.12 1
9H334 LR031388
TUBE - FUEL
With Fuel Fired Heater / Return, Supply, Under Floor / From: BA573686 / To: BA579653 		$384.59 1
9H334 LR031390
TUBE - FUEL RETURN
With Fresh Air Heater / Return, Supply, Under Floor / From: BA573686 / To: BA581111 		$299.11 1
9H334 LR031786
TUBE - FUEL
With Fuel Fired Heater / Return, Supply, Under Floor / From: BA579654 / To: BA999999 		$385.84 1
9H334 LR031787
TUBE - FUEL
With Fresh Air Heater / Return, Supply, Under Floor / From: BA581112 / To: BA999999 		$304.37 1
9H334 LR031787
TUBE - FUEL
6 Speed Auto Transmission ZF 6HP28, With Fresh Air Heater / Return, Supply, Under Floor / From: CA000001 / To: CA630751 		$304.37 1
9H334 LR031786
TUBE - FUEL
6 Speed Auto Transmission ZF 6HP28, With Fuel Fired Heater / Return, Supply, Under Floor / From: CA000001 / To: CA630751 		$385.84 1
9H334 LR029586
TUBE - FUEL
8 Speed Auto Trans ZF 8HP70 4WD, With Fuel Fired Heater / Return, Supply, Under Floor / From: CA000001 / To: CA630751 		$264.66 1
9H334 LR029585
TUBE - FUEL
8 Speed Auto Trans ZF 8HP70 4WD, With Fresh Air Heater / Return, Supply, Under Floor / From: CA000001 / To: CA630751 		$264.66 1
9H334 LR043391
TUBE - FUEL
6 Speed Auto Transmission ZF 6HP28, With Fuel Fired Heater / Return, Supply, Under Floor / From: CA630752 / To: DA677783 		$385.84 1
9H334 LR043406
TUBE - FUEL
6 Speed Auto Transmission ZF 6HP28, With Fresh Air Heater / Return, Supply, Under Floor / From: CA630752 		$304.37 1
9H334 LR043407
TUBE - FUEL
8 Speed Auto Trans ZF 8HP70 4WD, With Fuel Fired Heater / Return, Supply, Under Floor / From: CA630752 / To: DA677783 		$264.66 1
9H334 LR043409
TUBE - FUEL
8 Speed Auto Trans ZF 8HP70 4WD, With Fresh Air Heater / Return, Supply, Under Floor / From: CA630752 / To: DA677783 		$264.66 1
9H334 LR047204
TUBE - FUEL
6 Speed Auto Transmission ZF 6HP28, With Fuel Fired Heater / Return, Supply, Under Floor / From: DA677784 		$222.12 1
9H334 LR047212
TUBE - FUEL
8 Speed Auto Trans ZF 8HP70 4WD, With Fuel Fired Heater / Return, Supply, Under Floor / From: DA677784 		$396.20 1
9H334 LR047213
TUBE - FUEL
8 Speed Auto Trans ZF 8HP70 4WD, With Fresh Air Heater / Return, Supply, Under Floor / From: DA677784 		$422.42 1
9J296 LR015421
TUBE - FUEL RETURN
Under Floor / From: AA000001 / To: BA999999 		$164.40 1
9J296 LR030556
TUBE - FUEL RETURN
8 Speed Auto Trans ZF 8HP70 4WD / Under Floor / From: CA000001 		$94.18 1
9J296 LR015421
TUBE - FUEL RETURN
6 Speed Auto Transmission ZF 6HP28 / Under Floor / From: CA000001 		$164.40 1
9J308 WKW500080
SENSOR - WATER DETECTOR
Sensor - Water Detector / From: AA000001 		$142.91 1
9J337 LR017446
TUBE - FUEL VAPOUR
Return, Supply, Under Floor / From: AA000001 		$248.55 1
9J338 LR015416
TUBE
Return, Supply, To Engine / From: AA000001 		$280.58 1
9K335A WJP502390
TUBE - FUEL FEED
With Fuel Fired Heater / Supply / From: AA000001 / To: AA530094 		$91.54 1
9K335A LR028028
PIPE - FUEL
With Fuel Fired Heater / Supply / From: AA530095 		$194.52 1
9K335B WJP501042
TUBE - FUEL FEED
With Fuel Fired Heater / Feed, To Fuel Fired Heater / From: AA000001 		$87.05 1
9S324 LR010416
FILTER - FUEL
From: AA000001 / To: DA659732 		$149.93 1
9S324 LR045519
FILTER - FUEL
From: DA659733 		$166.35 1
8260 LR015422
HOSE - FUEL COOLER
For Fuel Cooler / From: AA000001 		$257.94 1
9176 LR009705
ELEMENT - FUEL FILTER
Filter / From: AA000001 		$97.50 1
10911 WKD500140
CONNECTOR - CABLE
From: AA000001 		$5.68 1
