Oil Pan/Oil Level Indicator (Solihull Plant Build) (3.0 V6 Diesel) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Oil Pan/Oil Level Indicator (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1305834 BOLT $2.27 To Order
Photo Part No Description Price (each) Stock
1225745 BOLT AND WASHER - HEX.HEAD $2.95 IN STOCK
Photo Part No Description Price (each) Stock
1419374 BOLT $4.14 To Order
Photo Part No Description Price (each) Stock
FS106106 BOLT $0.92 To Order
Photo Part No Description Price (each) Stock
LR096214 RING - SEALING $7.84 To Order
Photo Part No Description Price (each) Stock
LR018816 SCREW $2.43 To Order
Photo Part No Description Price (each) Stock
4364422 SCREW $1.36 To Order
Photo Part No Description Price (each) Stock
4380670 SCREW $0.76 To Order
Photo Part No Description Price (each) Stock
LR014198 STUD $8.56 To Order
Photo Part No Description Price (each) Stock
LR005994 GASKET - OIL PAN $39.04 IN STOCK
Photo Part No Description Price (each) Stock
LR013527 TUBE - OIL PUMP INLET $120.88 To Order
Photo Part No Description Price (each) Stock
LR013528 PAN - ENGINE OIL $875.19 To Order
LR034462 PAN - ENGINE OIL $1,055.61 To Order
LR031777 PAN - ENGINE OIL $588.88 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR014174 SEAL - COVER $37.84 To Order
Photo Part No Description Price (each) Stock
LR073675 PLUG - OIL DRAIN $8.32 To Order
Photo Part No Description Price (each) Stock
LR013608 TUBE - CRANKCASE VENTILATION $45.12 To Order
Photo Part No Description Price (each) Stock
LR086422 RETAINER - OIL PAN $15.22 To Order
Photo Part No Description Price (each) Stock
LR018460 O-RING $7.53 To Order
Photo Part No Description Price (each) Stock
LR013568 O-RING $10.58 To Order
Photo Part No Description Price (each) Stock
LR019457 TUBE - OIL EXTRACTION $307.43 To Order
LR076009 TUBE - OIL EXTRACTION $215.26 To Order
Photo Part No Description Price (each) Stock
LR013740 CAP - OIL LEVEL TUBE $76.44 To Order
Photo Part No Description Price (each) Stock
LR012640 SENSOR - OIL LEVEL $88.86 To Order
Photo Part No Description Price (each) Stock
LR037782 COVER AND TUBE - SCAVENGE RESERVOIR $75.99 To Order
Photo Part No Description Price (each) Stock
1331076 GASKET - OIL TUBE $4.19 To Order
Photo Part No Description Price (each) Stock
LR013565 TUBE - OIL $154.33 To Order
LR052353 TUBE - OIL $303.92 To Order
Photo Part No Description Price (each) Stock
LR014233 WIRE - OIL LEVEL SENSOR $92.17 To Order
LR136706 WIRE - OIL LEVEL SENSOR $80.47 To Order
LR086424 LEAD - OIL LEVEL SENSOR $92.93 To Order
View All

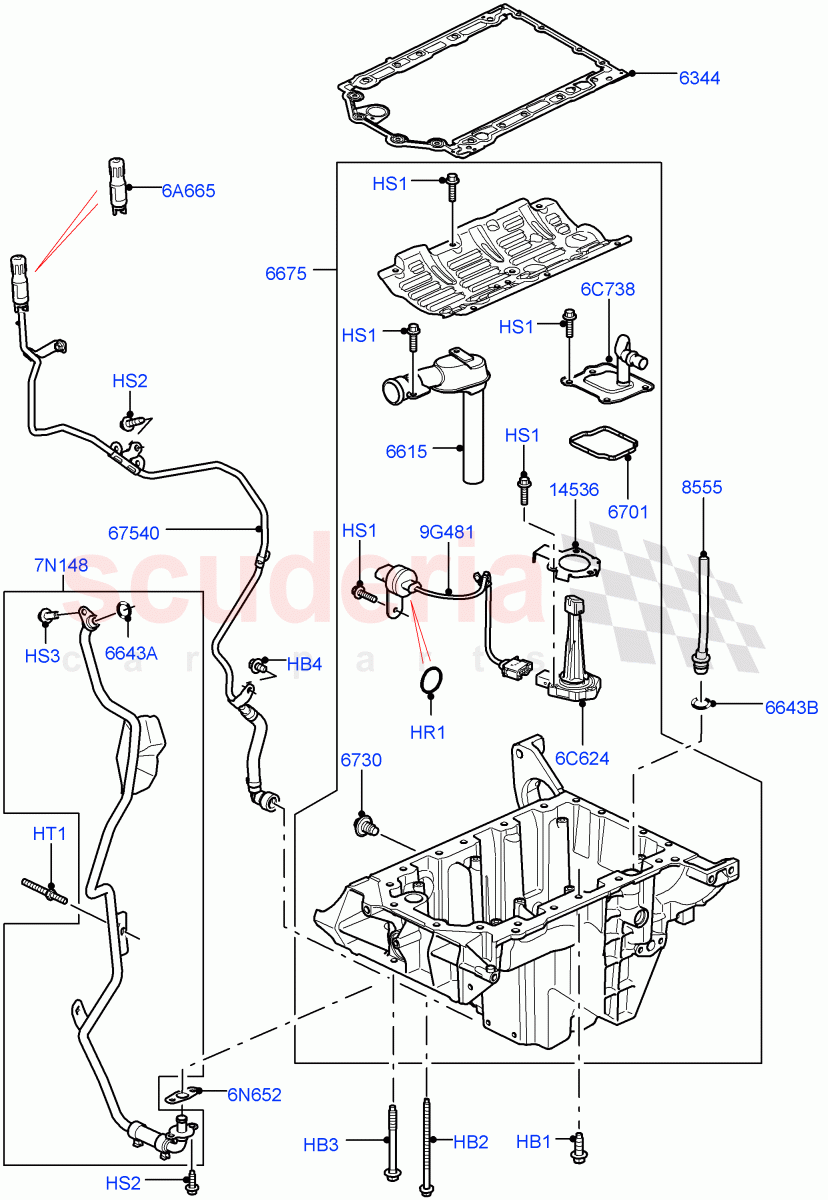

Oil Pan/Oil Level Indicator (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 1305834
BOLT
M8 X 20MM, Oil Pan / From: AA000001 		$2.27 9
HB2 1225745
BOLT AND WASHER - HEX.HEAD
Bolt And Washer, M6 X 105MM, Oil Pan / From: AA000001
IN STOCK 		$2.95 8
HB3 1419374
BOLT
M8 X 75MM, Oil Pan / From: AA000001 		$4.14 1
HB4 FS106106
BOLT
Hexagonal Head, M6 X 10MM / From: AA000001 		$0.92 1
HR1 LR096214
RING - SEALING
Wiring Connector / From: AA000001 		$7.84 2
HS1 LR018816
SCREW
M6 x 25MM / From: AA000001 		$2.43 16
HS2 4364422
SCREW
M6 X 16MM, Tube / From: AA000001 		$1.36 3
HS3 4380670
SCREW
Hexagonal Head, M6 X 16MM / From: AA000001 		$0.76 1
HT1 LR014198
STUD
M6 X 20MM, M6 X 40MM / From: AA000001 		$8.56 1
6A665 LR013740
CAP - OIL LEVEL TUBE
Tube - Oil Extraction / From: AA000001 		$76.44 1
6C624 LR012640
SENSOR - OIL LEVEL
From: AA000001 		$88.86 1
6C738 LR037782
COVER AND TUBE - SCAVENGE RESERVOIR
From: AA000001 		$75.99 1
6N652 1331076
GASKET - OIL TUBE
Oil Tube / From: AA000001 		$4.19 1
7N148 LR013565
TUBE - OIL
Scavenger Pipe / From: AA000001 / To: DA681160 		$154.33 1
7N148 LR052353
TUBE - OIL
Scavenger Pipe / From: DA681161 		$303.92 1
9G481 LR014233
WIRE - OIL LEVEL SENSOR
Sensor - Oil Level / From: AA000001 / To: CA619798 		$92.17 1
9G481 LR136706
WIRE - OIL LEVEL SENSOR
Sensor - Oil Level / From: CA619799 / To: EA710385 		$80.47 1
9G481 LR086424
LEAD - OIL LEVEL SENSOR
Sensor - Oil Level / From: EA710386 		$92.93 1
6344 LR005994
GASKET - OIL PAN
Oil Pan / From: AA000001
IN STOCK 		$39.04 1
6615 LR013527
TUBE - OIL PUMP INLET
From: AA000001 		$120.88 1
6643A LR018460
O-RING
Scavenger Pipe / From: AA000001 		$7.53 1
6643B LR013568
O-RING
Ventilation Tube / From: AA000001 		$10.58 1
6675 LR013528
PAN - ENGINE OIL
From: AA000001 / To: CA608913 		$875.19 1
6675 LR034462
PAN - ENGINE OIL
From: CA619799 / To: DA680534 		$1,055.61 1
6675 LR031777
PAN - ENGINE OIL
From: CA608914 / To: CA619798 		$588.88 1
6675 LR049183
PAN - ENGINE OIL
For Engine Serial Number Earlier Than ELD11 050613 0753185 - ELD11 DD/MM/YY Serial, Please Order: Turbo Oil Drain Hose P/N LR044556, Gasket P/N LR013235 and Screw P/N RYG500160 / From: DA680535 / To: EA710162 		$1,375.74 1
6675 LR086423
PAN - ENGINE OIL
For Engine Serial Number Earlier Than ELD11 050613 0753185 - ELD11 DD/MM/YY Serial, Please Order: Turbo Oil Drain Hose P/N LR044556, Gasket P/N LR013235 and Screw P/N RYG500160 / From: EA710163 		$1,431.09 1
6701 LR014174
SEAL - COVER
Cover Scavenge Reservoir / From: AA000001 		$37.84 1
6730 LR073675
PLUG - OIL DRAIN
Head Size: 13mm, Includes Seal, M14 X 1.5 / From: AA000001 		$8.32 1
8555 LR013608
TUBE - CRANKCASE VENTILATION
Crankcase Ventilation / From: AA000001 		$45.12 1
14536 LR086422
RETAINER - OIL PAN
Sensor - Oil Level 		$15.22 1
67540 LR019457
TUBE - OIL EXTRACTION
From: AA000001 / To: DA999999 		$307.43 1
67540 LR076009
TUBE - OIL EXTRACTION
From: EA000001 		$215.26 1
