Cylinder Block And Plugs (Solihull Plant Build) (3.0 V6 Diesel) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Cylinder Block And Plugs (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
3026220 PIN $6.28 To Order
LR023119 DOWEL - PIN $1.21 To Order
Photo Part No Description Price (each) Stock
LR003517 PLUG - ENGINE $8.37 To Order
Photo Part No Description Price (each) Stock
LR000376 PLUG - THREADED $9.85 To Order
Photo Part No Description Price (each) Stock
1316062 PLUG - ENGINE $6.26 To Order
Photo Part No Description Price (each) Stock
LR000375 PLUG $4.17 To Order
Photo Part No Description Price (each) Stock
1418982 O-RING $8.00 To Order
Photo Part No Description Price (each) Stock
4467593 BOLT - HEX.HEAD $0.71 To Order
Photo Part No Description Price (each) Stock
4364422 SCREW $1.36 To Order
Photo Part No Description Price (each) Stock
LR022136 COVER - ACCESS HOLE $3.71 To Order
Photo Part No Description Price (each) Stock
3932421 PLUG - ENGINE $8.14 To Order
Photo Part No Description Price (each) Stock
LCM500010 PLUG - ENGINE $1.84 To Order
Photo Part No Description Price (each) Stock
4603182 DOWEL $28.86 To Order
Photo Part No Description Price (each) Stock
1316114 DOWEL $15.25 To Order
Photo Part No Description Price (each) Stock
LR014228 SENSOR - CRANKSHAFT POSITION - CPS $697.81 To Order
LR021956 SENSOR - CRANKSHAFT POSITION - CPS $223.52 To Order
LR035560 SENSOR - CRANKSHAFT POSITION - CPS $713.54 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1316115 RETAINER AND SEAL - CRANKSHAFT $65.04 To Order
LR032930 RETAINER - CRANKSHAFT OIL SEAL $72.68 To Order
LR036542 RETAINER AND SEAL - CRANKSHAFT $84.37 To Order
View All

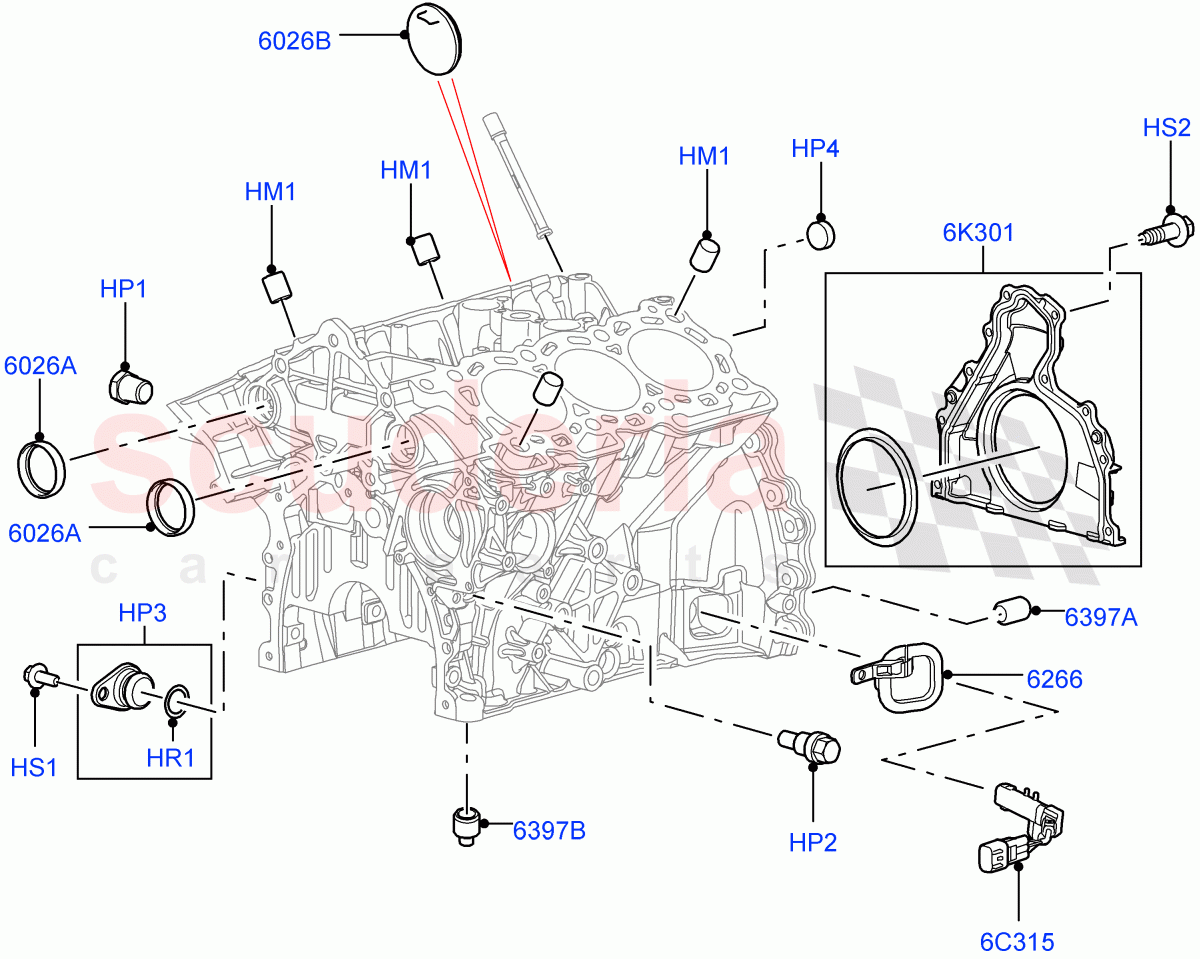

Cylinder Block And Plugs (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HM1 3026220
PIN
4 Per Package, Hollow Type, M16 x 19MM, Straight Dowel / From: AA000001 / To: AA543805 		$6.28 4
HM1 LR023119
DOWEL - PIN
4 Per Package, Hollow Type, M16 x 19MM, Pin - Dowell, Straight Dowel / From: AA543806 		$1.21 4
HP1 LR003517
PLUG - ENGINE
1/4" x 18 NPSF, To Engine / From: AA000001 		$8.37 1
HP2 LR000376
PLUG - THREADED
M10 X 11.5, Threaded Timing Plug / From: AA000001 		$9.85 1
HP3 1316062
PLUG - ENGINE
Engine / From: AA000001 		$6.26 2
HP4 LR000375
PLUG 		$4.17 1
HR1 1418982
O-RING
15 X 3MM / From: AA000001 		$8.00 2
HS1 4467593
BOLT - HEX.HEAD
Hexagonal Head, M6 X 20MM / From: AA000001 		$0.71 2
HS2 4364422
SCREW
M6 X 16MM / From: AA000001 		$1.36 10
6C315 LR014228
SENSOR - CRANKSHAFT POSITION - CPS
From: AA000001 / To: AA529052 		$697.81 1
6C315 LR021956
SENSOR - CRANKSHAFT POSITION - CPS
From: AA529053 / To: CA999999 		$223.52 1
6C315 LR035560
SENSOR - CRANKSHAFT POSITION - CPS
From: DA000001 / To: DA659881 		$713.54 1
6C315 LR126062
SENSOR - CRANKSHAFT POSITION - CPS
From: DA659882 		$164.16 1
6K301 1316115
RETAINER AND SEAL - CRANKSHAFT
Rear / From: AA000001 / To: BA596866 		$65.04 1
6K301 LR032930
RETAINER - CRANKSHAFT OIL SEAL
Rear / From: BA596867 / To: CA999999 		$72.68 1
6K301 LR036542
RETAINER AND SEAL - CRANKSHAFT
Rear / From: DA000001 		$84.37 1
6026A 3932421
PLUG - ENGINE
Cup Type, OD=33.6MM, Service Only Oversize / From: AA000001 		$8.14 2
6026B LCM500010
PLUG - ENGINE
Converter Access Plug / From: AA000001 		$1.84 1
6266 LR022136
COVER - ACCESS HOLE
Access Hole Cover, Sensor - Crankshaft Position - CPS / From: AA000001 		$3.71 1
6397A 4603182
DOWEL
15.7MM, Pin - Dowell / From: AA000001 		$28.86 2
6397B 1316114
DOWEL
Oil Pan / From: AA000001 		$15.25 2
