Pulleys And Drive Belts (Rear, Solihull Plant Build) (3.0 V6 Diesel) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Pulleys And Drive Belts (Rear, Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR000374 BOLT $6.43 IN STOCK
Photo Part No Description Price (each) Stock
4622661 SCREW $0.73 To Order
Photo Part No Description Price (each) Stock
LR068165 BOLT $12.77 To Order
Photo Part No Description Price (each) Stock
LR110747 SCREW $3.92 To Order
Photo Part No Description Price (each) Stock
LR014211 STUD $3.10 To Order
Photo Part No Description Price (each) Stock
LR013428 PULLEY - AUX. DRIVE $39.25 To Order
LR084437 PULLEY - AUX. DRIVE $116.30 To Order
Photo Part No Description Price (each) Stock
LR016656 KIT - INJ PUMP BELT $220.34 To Order
LR069054 KIT - FUEL PUMP DRIVE BELT $219.28 IN STOCK
Photo Part No Description Price (each) Stock
LR013590 HUB - CAMSHAFT PULLEY $55.35 To Order
Photo Part No Description Price (each) Stock
LR014189 COVER - TIMING BELT $109.31 To Order
Photo Part No Description Price (each) Stock
LR013444 COVER - TIMING BELT $113.77 To Order
LR104351 COVER $40.33 To Order
Photo Part No Description Price (each) Stock
LR013443 COVER - TIMING BELT $92.22 To Order
View All

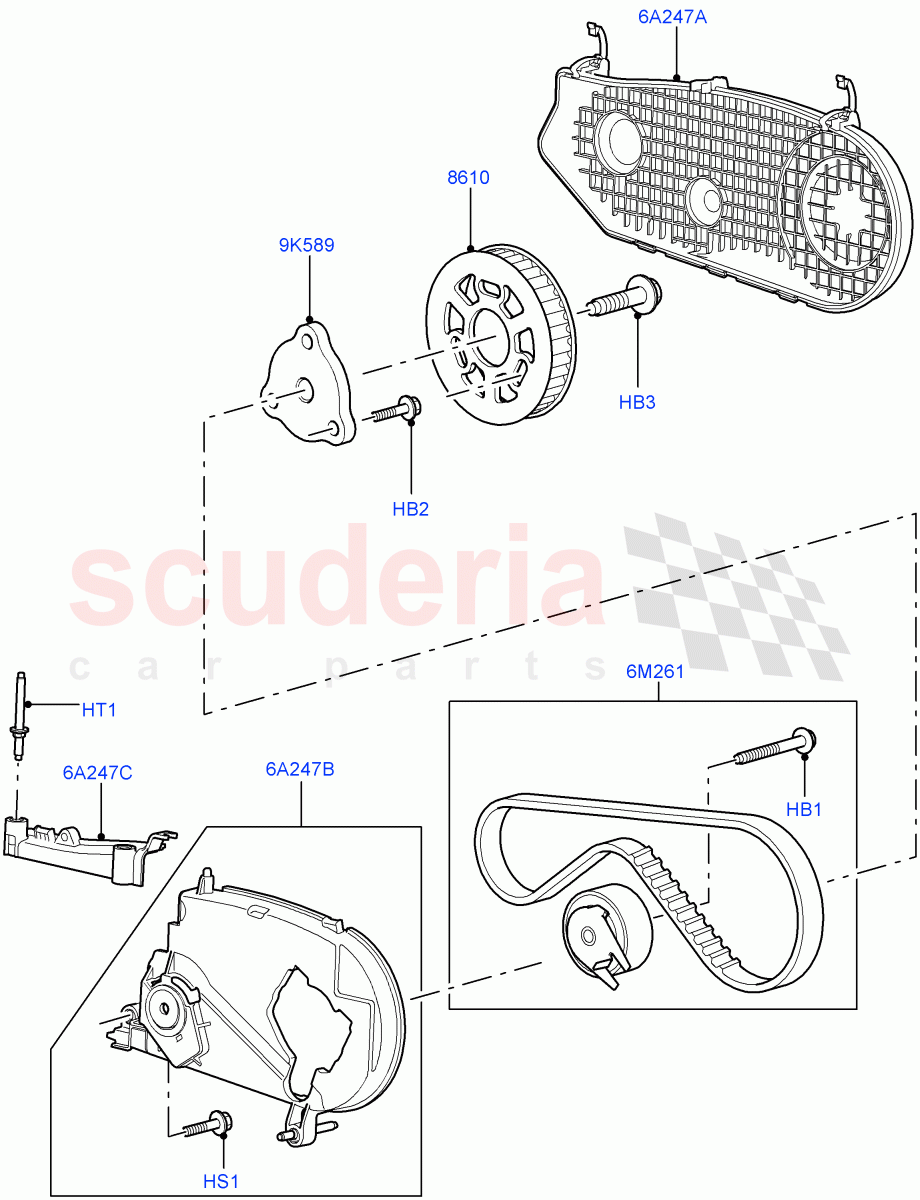

Pulleys And Drive Belts (Rear, Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR000374
BOLT
M8 x 60MM / From: AA000001
IN STOCK 		$6.43 1
HB2 4622661
SCREW
M8 X 16MM, Pulley / From: AA000001 		$0.73 3
HB3 LR068165
BOLT
M12 x 1.5 x 35MM / From: AA000001 		$12.77 1
HS1 LR110747
SCREW
M6 x 35MM / From: AA000001 		$3.92 1
HT1 LR014211
STUD
M6 X 14MM, M6 X 40MM / From: AA000001 		$3.10 2
6A247A LR014189
COVER - TIMING BELT
Outer, Rear Engine Accessory Drive / From: AA000001 		$109.31 1
6A247B LR013444
COVER - TIMING BELT
Inner, Rear Engine Accessory Drive / From: AA000001 / To: EA710359 		$113.77 1
6A247B LR104351
COVER
Inner, Rear Engine Accessory Drive / From: EA710360 		$40.33 1
6A247C LR013443
COVER - TIMING BELT
Inner, Rear Engine Accessory Drive / From: AA000001 		$92.22 1
6M261 LR016656
KIT - INJ PUMP BELT
3.0L 24V V6 Turbo Diesel Std Flow / From: AA000001 		$220.34 1
6M261 LR069054
KIT - FUEL PUMP DRIVE BELT
3.0 V6 D Gen2 Twin Turbo / From: GA000001
IN STOCK 		$219.28 1
9K589 LR013590
HUB - CAMSHAFT PULLEY
Camshaft Pulley, Rear Engine Accessory Drive / From: AA000001 		$55.35 1
8610 LR013428
PULLEY - AUX. DRIVE
Rear Engine Accessory Drive / From: AA000001 / To: EA710359 		$39.25 1
8610 LR084437
PULLEY - AUX. DRIVE
Rear Engine Accessory Drive / From: EA710360 		$116.30 1
