Name: Transfer Drive Case (6 Speed Auto ZF 6HP26 Steptronic, 8 Speed Auto Trans ZF 8HP70 4WD, 6 Speed Auto Transmission ZF 6HP28, 6 Speed Man ZF S6-53) ((V) FROMAA000001, (V) TODA999999)
Rating: 5.0 (1 reviews)

Transfer Drive Case (6 Speed Auto ZF 6HP26 Steptronic, 8 Speed Auto Trans ZF 8HP70 4WD, 6 Speed Auto Transmission ZF 6HP28, 6 Speed Man ZF S6-53) ((V) FROMAA000001, (V) TODA999999) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

View All

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Transfer Drive Case (6 Speed Auto ZF 6HP26 Steptronic, 8 Speed Auto Trans ZF 8HP70 4WD, 6 Speed...

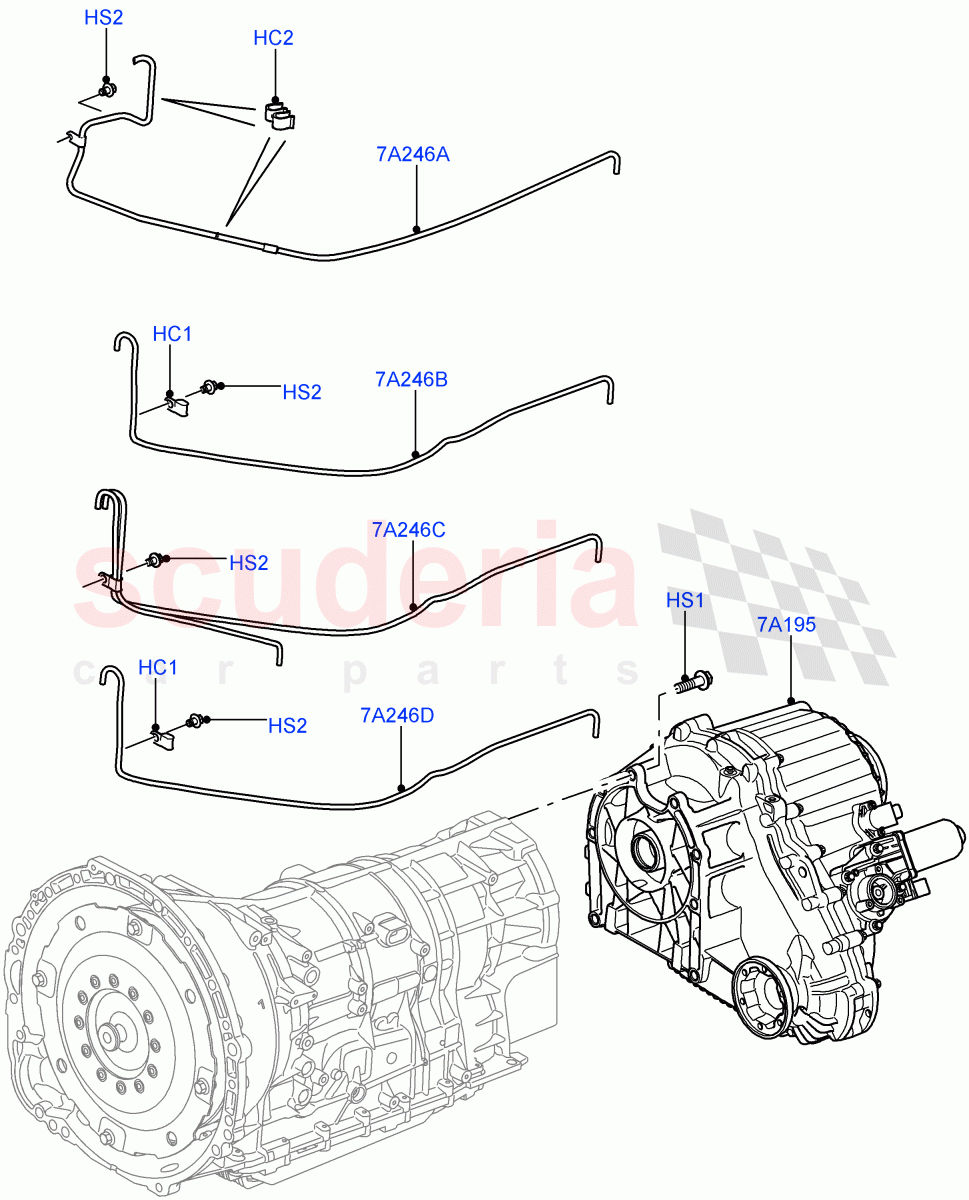

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	TYC500140	CLIP	$1.43	To Order

Photo	Part No	Description	Price (each)	Stock
	WYC000020	CLIP	$0.77	To Order

Photo	Part No	Description	Price (each)	Stock
	FT110356	SCREW	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108126	SCREW	$1.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	IAB500280	TRANSFER BOX	$5,596.27	To Order
	LR008206	TRANSFER BOX	$3,485.16	To Order
	LR023011	TRANSFER BOX	$6,688.53	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	TRG500170	TUBE - BREATHER	$13.94	To Order

Photo	Part No	Description	Price (each)	Stock
	TRG500150	TUBE - BREATHER	$4.57	To Order
	TRG500020	TUBE - BREATHER	$13.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013920	BREATHER - TRANSMISSION	$42.03	To Order
	LR023203	TUBE - TRANSMISSION VENTILATION	$40.06	To Order
	LR042384	TUBE - TRANSMISSION VENTILATION	$45.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010763	TUBE - TRANSMISSION VENTILATION	$38.29	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	TYC500140	CLIP	TYC500140 CLIP Cologne V6 4.0 EFI (SOHC) / Breather Pipe / From: AA000001	$1.43	1
HC2	WYC000020	CLIP	WYC000020 CLIP Lion Diesel 2.7 V6 (140KW) / Double, Tube Support / From: AA000001	$0.77	2
HS1	FT110356	SCREW	FT110356 SCREW HEX Flange, Hexagonal Head, M10 x 35MM, Transfer Box With Auto Transmission / From: AA000001	$2.41	8
HS2	FS108126	SCREW IN STOCK	FS108126 SCREW HEX Flange, M8 x 12MM / From: AA000001 IN STOCK	$1.36	1
7A195	IAB500280	TRANSFER BOX	IAB500280 TRANSFER BOX New Part-Please Check For Reman Version / From: AA000001 / To: BA567765	$5,596.27	1
7A195	LR008206	TRANSFER BOX	LR008206 TRANSFER BOX Remanufactured Part / From: AA000001 / To: BA567765	$3,485.16	1
7A195	LR023011	TRANSFER BOX	LR023011 TRANSFER BOX New Part-Please Check For Reman Version / From: BA567766 / To: CA649538	$6,688.53	1
7A195	LR045477	TRANSFER BOX	LR045477 TRANSFER BOX New Part-Please Check For Reman Version / From: DA658451 / To: DA679507	$5,685.90	1
7A195	LR035617	TRANSFER BOX	LR035617 TRANSFER BOX New Part-Please Check For Reman Version / From: CA649539 / To: DA658450	$3,741.32	1
7A195	LR049160	TRANSFER BOX	LR049160 TRANSFER BOX New Part-Please Check For Reman Version / From: DA679508 / To: DA683912	$7,015.75	1
7A195	LR052611	TRANSFER BOX	LR052611 TRANSFER BOX New Part-Please Check For Reman Version / From: DA683913	$7,230.42	1
7A195	LR054851	TRANSFER BOX	LR054851 TRANSFER BOX Remanufactured Part / From: AA000001 / To: BA567765	$3,919.18	1
7A195	LR054851	TRANSFER BOX	LR054851 TRANSFER BOX Remanufactured Part / From: DA679508 / To: DA683912	$3,919.18	1
7A195	LR052876	TRANSFER BOX	LR052876 TRANSFER BOX Remanufactured Part / From: DA683913	$3,507.63	1
7A195	LR111124	TRANSFER BOX	LR111124 TRANSFER BOX Remanufactured Part / From: CA649539 / To: DA658450	$3,507.63	1
7A195	LR111124	TRANSFER BOX	LR111124 TRANSFER BOX Remanufactured Part / From: DA658451 / To: DA679507	$3,507.63	1
7A246A	TRG500170	TUBE - BREATHER	TRG500170 TUBE - BREATHER 6 Speed Auto ZF 6HP26 Steptronic, Lion Diesel 2.7 V6 (140KW) / Includes Clips, Transfer Box / From: AA000001	$13.94	1
7A246B	TRG500150	TUBE - BREATHER	TRG500150 TUBE - BREATHER 6 Speed Auto ZF 6HP26 Steptronic, Cologne V6 4.0 EFI (SOHC) / Transfer Box / From: AA000001	$4.57	1
7A246B	TRG500020	TUBE - BREATHER	TRG500020 TUBE - BREATHER 6 Speed Man ZF S6-53, Cologne V6 4.0 EFI (SOHC) / Includes Clips, Transfer Box / From: AA000001	$13.94	1
7A246C	LR013920	BREATHER - TRANSMISSION	LR013920 BREATHER - TRANSMISSION 3.0L 24V DOHC V6 TC Diesel / Gearbox, Includes Bracket, Transfer Box / From: AA000001 / To: AA537930	$42.03	1
7A246C	LR023203	TUBE - TRANSMISSION VENTILATION	LR023203 TUBE - TRANSMISSION VENTILATION 3.0L 24V DOHC V6 TC Diesel / Gearbox, Includes Bracket, Transfer Box / From: AA537931 / To: CA645071	$40.06	1
7A246C	LR042384	TUBE - TRANSMISSION VENTILATION	LR042384 TUBE - TRANSMISSION VENTILATION 3.0L 24V DOHC V6 TC Diesel / Gearbox, Includes Bracket, Transfer Box / From: CA645072	$45.52	1
7A246D	LR010763	TUBE - TRANSMISSION VENTILATION	LR010763 TUBE - TRANSMISSION VENTILATION 5.0L OHC SGDI NA V8 Petrol - AJ133 / Transfer Box / From: AA000001	$38.29	1

Transfer Drive Case (6 Speed Auto Zf 6Hp26 Steptronic, 8 Speed Auto Trans Zf 8Hp70 4Wd, 6 Speed...

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]
