Name: Supply & Return Hoses - Power Strg (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001)
Rating: 4.5 (1 reviews)

View All

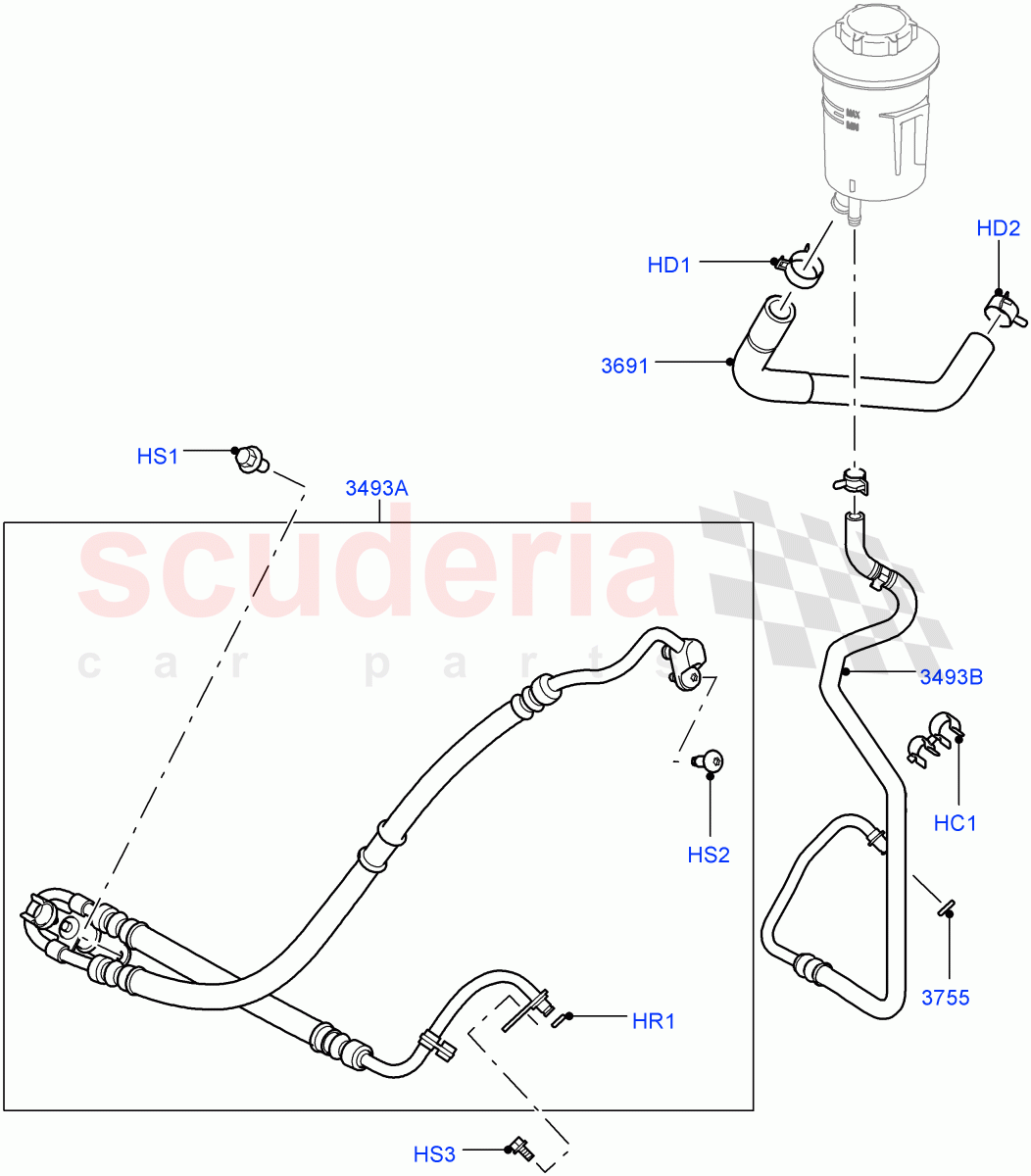

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	QGM500070	CLIP	$1.31	To Order

Photo	Part No	Description	Price (each)	Stock
	QGM000020	CLIP	$1.04	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	QGM000010	CLAMP	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR009346	O-RING	$4.01	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS108126	SCREW	$1.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYP500980	SCREW	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	QYP500110	SCREW	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020210	O-RING	$2.96	IN STOCK

...and 1 more part variants. See table on right for more details.

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	QGM500070	CLIP	QGM500070 CLIP RHD / Double / From: AA000001	$1.31	1
HD1	QGM000020	CLIP IN STOCK	QGM000020 CLIP Hose / From: AA000001 IN STOCK	$1.04	2
HD2	QGM000010	CLAMP IN STOCK	QGM000010 CLAMP Hose / From: AA000001 IN STOCK	$0.61	1
HR1	LR009346	O-RING IN STOCK	LR009346 O-RING IN STOCK	$4.01	1
HS1	FS108126	SCREW IN STOCK	FS108126 SCREW M8 x 12MM / From: AA000001 IN STOCK	$1.36	1
HS2	RYP500980	SCREW	RYP500980 SCREW M8 X 1.25 X 16MM / From: AA000001	$0.67	1
HS3	QYP500110	SCREW	QYP500110 SCREW M8 X 16MM, Torx / From: AA000001	$0.63	1
3493A	QEP501850	HOSE	QEP501850 HOSE RHD / From: AA000001	$182.14	1
3493A	QEP500901	HOSE	QEP500901 HOSE LHD / From: AA000001	$222.26	1
3493B	LR013790	HOSE	LR013790 HOSE RHD / From: AA000001 / To: EA701176	$83.99	1
3493B	QEH500690	HOSE	QEH500690 HOSE LHD / From: AA000001 / To: EA701175	$74.17	1
3493B	LR057813	HOSE - RESERVOIR TO PUMP	LR057813 HOSE - RESERVOIR TO PUMP LHD / From: EA701176	$95.79	1
3493B	LR057812	HOSE - RESERVOIR TO PUMP	LR057812 HOSE - RESERVOIR TO PUMP RHD / From: EA701177	$110.98	1
3691	LR013797	HOSE	LR013797 HOSE From: AA000001 / To: AA536980	$59.03	1
3691	LR023346	HOSE - RESERVOIR TO PUMP	LR023346 HOSE - RESERVOIR TO PUMP From: AA536981	$39.09	1
3755	LR020210	O-RING IN STOCK	LR020210 O-RING 6MM / From: AA000001 IN STOCK	$2.96	1

Supply & Return Hoses - Power Strg (Lion Diesel 2.7 V6 (140Kw)) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]
