Brake And Clutch Controls (6 Speed Man Zf S6-53) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Brake And Clutch Controls (6 Speed Man ZF S6-53) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
BH110281L BOLT $5.63 To Order
Photo Part No Description Price (each) Stock
BH110181L BOLT $2.98 To Order
Photo Part No Description Price (each) Stock
SYV000010 CLIP - RETAINING $53.42 To Order
LR038046 CLIP - RETAINING $1.41 To Order
Photo Part No Description Price (each) Stock
LR012690 CLIP $1.35 To Order
Photo Part No Description Price (each) Stock
SYA500020 GROMMET $2.74 To Order
Photo Part No Description Price (each) Stock
FN110041L NUT - HEX. $1.66 To Order
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. $2.03 To Order
Photo Part No Description Price (each) Stock
SH106121L SCREW $1.10 To Order
Photo Part No Description Price (each) Stock
SKE500020 PAD - PEDAL $11.38 To Order
Photo Part No Description Price (each) Stock
XKB500110 SWITCH - STOP LIGHT $46.35 To Order
LR072647 SWITCH - STOP LIGHT $31.38 To Order
LR116714 SWITCH - STOP LIGHT $31.46 To Order
Photo Part No Description Price (each) Stock
SUB000021PVJ PEDAL AND BRACKET $398.42 To Order
Photo Part No Description Price (each) Stock
SKB000421PVJ PEDAL - BRAKE $198.16 To Order
LR046036 PEDAL - BRAKE $467.80 To Order
Photo Part No Description Price (each) Stock
SKB500021PVJ PEDAL AND BRACKET $575.32 To Order
LR045820 PEDAL AND BRACKET $737.70 To Order
Photo Part No Description Price (each) Stock
LR061903 SHIM - BRAKE SWITCH $6.28 To Order
LR068532 SHIM - BRAKE SWITCH $2.74 To Order
LR079259 SHIM - BRAKE SWITCH $4.32 To Order
Photo Part No Description Price (each) Stock
LR015531 TUBE - CLUTCH $103.35 To Order
Photo Part No Description Price (each) Stock
LR015532 TUBE - CLUTCH $90.04 To Order
Photo Part No Description Price (each) Stock
STG500100 TUBE - CLUTCH $80.39 To Order
Photo Part No Description Price (each) Stock
STH000012 HOSE $3.47 To Order
Photo Part No Description Price (each) Stock
STH000022 HOSE $19.73 To Order
Photo Part No Description Price (each) Stock
STC500041 MASTER CYLINDER $509.58 To Order
Photo Part No Description Price (each) Stock
STC500031 MASTER CYLINDER $481.64 To Order
View All

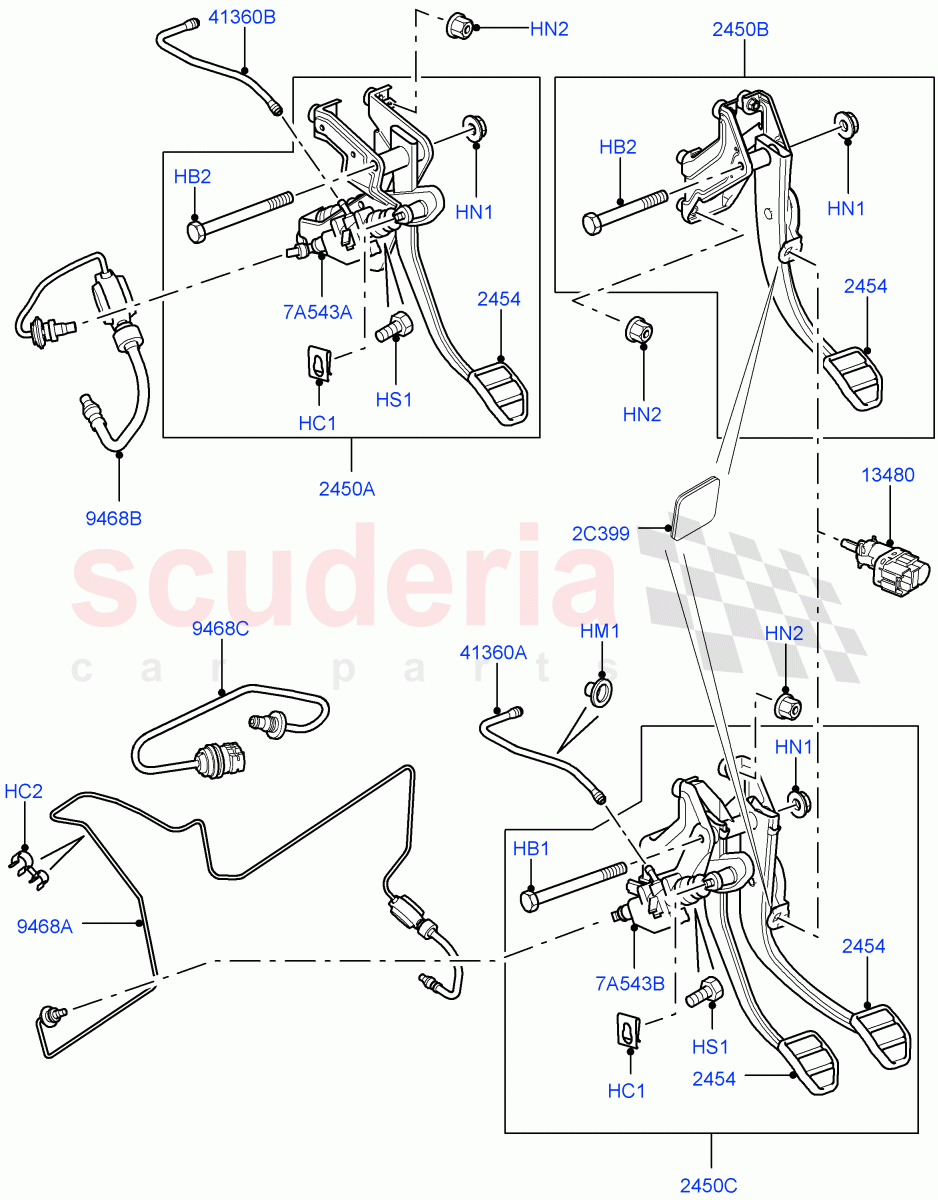

Brake And Clutch Controls (6 Speed Man ZF S6-53) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 BH110281L
BOLT
M10 x 140MM / From: AA000001 		$5.63 1
HB2 BH110181L
BOLT
M10 X 90MM / From: AA000001 		$2.98 1
HC1 SYV000010
CLIP - RETAINING
Retainer / From: AA000001 / To: CA629497 		$53.42 1
HC1 LR038046
CLIP - RETAINING
Retainer / From: CA629498 		$1.41 1
HC2 LR012690
CLIP
LHD / 4.3-5+2+8 / From: AA000001 		$1.35 1
HM1 SYA500020
GROMMET
LHD / Grommet / From: AA000001 		$2.74 1
HN1 FN110041L
NUT - HEX.
M10 / From: AA000001 		$1.66 1
HN2 FN108046
NUT - HEX.
Hexagonal Head, M8 / From: AA000001 		$2.03 10
HS1 SH106121L
SCREW
M6 x 12MM / From: AA000001 		$1.10 2
2C399 LR061903
SHIM - BRAKE SWITCH
Stop Lamp Switch / From: AA000001 / To: FA748930 		$6.28 1
2C399 LR068532
SHIM - BRAKE SWITCH
Stop Lamp Switch / From: FA748931 / To: GA784147 		$2.74 1
2C399 LR079259
SHIM - BRAKE SWITCH
Stop Lamp Switch / From: GA784148 / To: GA801063 		$4.32 1
7A543A STC500041
MASTER CYLINDER
RHD / With Sensor / From: AA000001 		$509.58 1
7A543B STC500031
MASTER CYLINDER
LHD / With Sensor / From: AA000001 		$481.64 1
2450A SUB000021PVJ
PEDAL AND BRACKET
RHD / Clutch Pedal / From: AA000001 		$398.42 1
2450B SKB000421PVJ
PEDAL - BRAKE
RHD / Brake Pedal / From: AA000001 / To: BA593843 		$198.16 1
2450B LR046036
PEDAL - BRAKE
RHD / Brake Pedal / From: BA593844 		$467.80 1
2450C SKB500021PVJ
PEDAL AND BRACKET
LHD / Brake and clutch / From: AA000001 / To: BA593843 		$575.32 1
2450C LR045820
PEDAL AND BRACKET
LHD / Brake and clutch / From: BA593844 		$737.70 1
2454 SKE500020
PAD - PEDAL
From: AA000001 		$11.38 2
9468A LR015531
TUBE - CLUTCH
LHD / From: AA000001 		$103.35 1
9468B LR015532
TUBE - CLUTCH
RHD / From: AA000001 		$90.04 1
9468C STG500100
TUBE - CLUTCH
From: AA000001 		$80.39 1
13480 XKB500110
SWITCH - STOP LIGHT
From: AA000001 / To: GA801063 		$46.35 1
13480 LR072647
SWITCH - STOP LIGHT
From: GA801064 / To: GA844492 		$31.38 1
13480 LR116714
SWITCH - STOP LIGHT
From: GA844493 		$31.46 1
41360A STH000012
HOSE
LHD / From: AA000001 		$3.47 1
41360B STH000022
HOSE
RHD / From: AA000001 		$19.73 1
