Front Panels, Aprons & Side Members ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Front Panels, Aprons & Side Members ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
ANR2224 HARDWARE - MISCELLANEOUS $2.70 To Order
ANR2224 HARDWARE - MISCELLANEOUS $2.70 To Order
ANR2224 HARDWARE - MISCELLANEOUS $2.70 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR016625 NUT $1.05 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.48 IN STOCK
FN106046 NUT - HEX. $1.48 IN STOCK
Photo Part No Description Price (each) Stock
LR106494 SCREW $2.27 IN STOCK
LR106494 SCREW $2.27 IN STOCK
Photo Part No Description Price (each) Stock
AYG500150 STUD - EARTH $4.75 To Order
Photo Part No Description Price (each) Stock
ESR0567 STUD $3.42 To Order
Photo Part No Description Price (each) Stock
AFS780041 SPACER $6.12 To Order
LR025049 SPACER $5.58 To Order
Photo Part No Description Price (each) Stock
LR007145 APRON - FRONT FENDER $434.03 To Order
LR007146 APRON - FRONT FENDER $384.85 To Order
LR051733 APRON - FRONT FENDER $1,476.93 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR014974 ISOLATOR $28.32 To Order
LR014996 ISOLATOR $30.36 To Order
Photo Part No Description Price (each) Stock
ABD780100 REINFORCEMENT $41.01 To Order
ABD780110 REINFORCEMENT $82.02 To Order
Photo Part No Description Price (each) Stock
LR016862 WHEELARCH $792.23 To Order
LR016863 WHEELARCH $792.23 To Order
Photo Part No Description Price (each) Stock
LR016841 MEMBER - SIDE $978.27 To Order
LR016842 MEMBER - SIDE $931.64 To Order
Photo Part No Description Price (each) Stock
LR016865 CROSSMEMBER - FRONT $376.58 To Order
Photo Part No Description Price (each) Stock
LR007144 PANEL - VALANCE $380.16 To Order
LR007143 PANEL - VALANCE $380.16 To Order
LR051731 PANEL - VALANCE $204.25 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR017916 PANEL - VALANCE $501.70 To Order
LR017929 PANEL - VALANCE $501.70 To Order
Photo Part No Description Price (each) Stock
LR053184 COVER - TRUNK TRAY $58.82 To Order
Photo Part No Description Price (each) Stock
AWW780022 GUSSET $146.38 To Order
AWW780032 GUSSET $146.38 To Order
LR079810 GUSSET $298.45 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR016843 FILLER - FRONT VALANCE $235.12 To Order
LR016844 FILLER - FRONT VALANCE $256.40 To Order
Photo Part No Description Price (each) Stock
LR051741 BRACKET - STOP START SYSTEM $102.39 To Order
Photo Part No Description Price (each) Stock
LR057987 BRACKET - STOP START SYSTEM $383.57 To Order
Photo Part No Description Price (each) Stock
LR051710 BRACKET - STOP START SYSTEM $19.38 To Order
LR051709 BRACKET - STOP START SYSTEM $15.70 To Order
Photo Part No Description Price (each) Stock
LR057985 BRACKET - STOP START SYSTEM $16.49 To Order
LR057986 BRACKET - STOP START SYSTEM $201.50 To Order
Photo Part No Description Price (each) Stock
CLF500253 SHIELD - SPLASH - WHEELHOUSE $103.75 To Order
LR015162 SHIELD - SPLASH - WHEELHOUSE $98.37 To Order
Photo Part No Description Price (each) Stock
LR013052 SHIELD - FENDER APRON $11.83 To Order
Photo Part No Description Price (each) Stock
LR013055 SHIELD - FENDER APRON $75.46 To Order
Photo Part No Description Price (each) Stock
LR013054 SHIELD - FENDER APRON $15.16 To Order
LR052222 SHIELD - FENDER APRON $75.77 To Order
Photo Part No Description Price (each) Stock
LR013053 SHIELD - FENDER APRON $11.83 To Order
View All

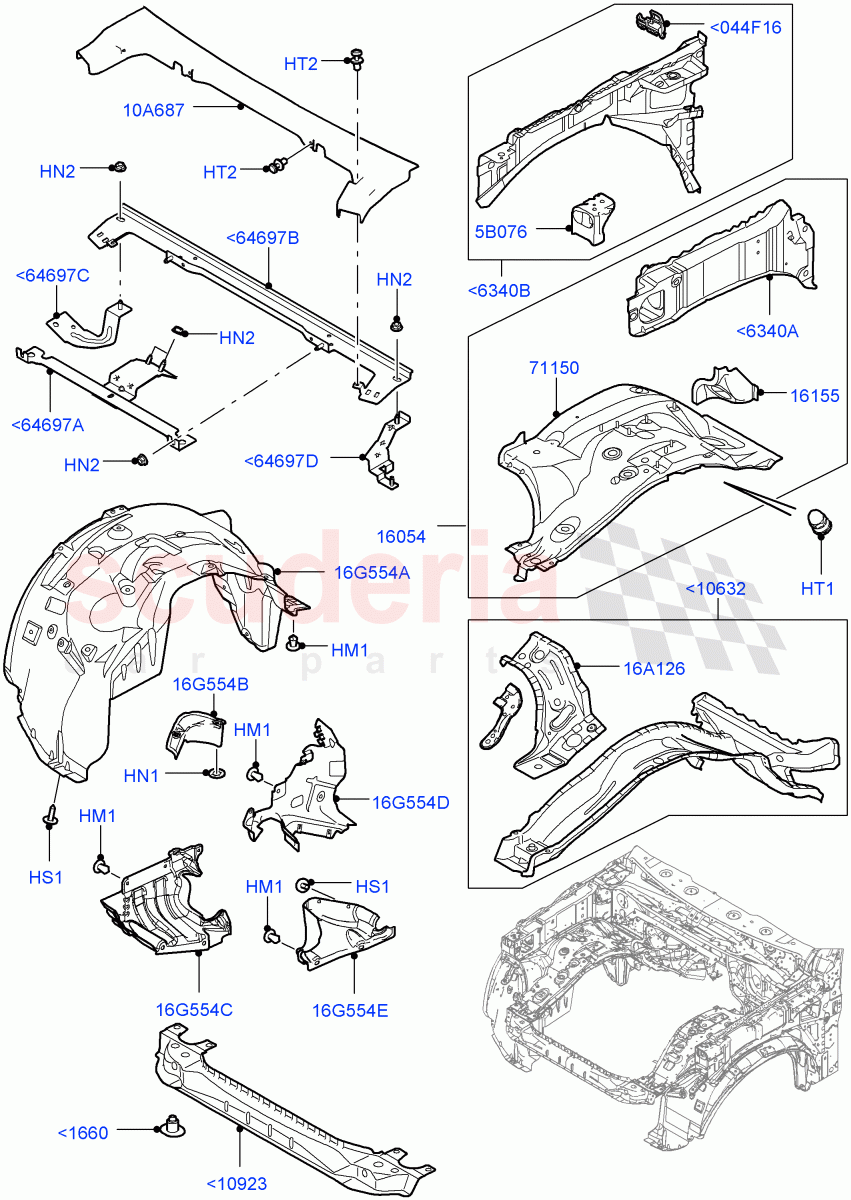

Front Panels, Aprons & Side Members ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<044F16 LR016843
FILLER - FRONT VALANCE
RH, Valance / From: AA000001 		$235.12 1
<044F16 LR016844
FILLER - FRONT VALANCE
LH, Valance / From: AA000001 		$256.40 1
<1660 AFS780041
SPACER
M10 / From: AA000001 / To: AA557667 		$6.12 2
<1660 LR025049
SPACER
M10 / From: AA557668 		$5.58 2
<6340A LR007144
PANEL - VALANCE
LH, Inner / From: AA000001 / To: DA999999 		$380.16 1
<6340A LR007143
PANEL - VALANCE
RH, Inner / From: AA000001 / To: DA999999 		$380.16 1
<6340A LR051731
PANEL - VALANCE
RH, Inner / From: EA000001 		$204.25 1
<6340A LR051732
PANEL - VALANCE
LH, Inner / From: EA000001 		$204.25 1
<6340B LR017916
PANEL - VALANCE
RH, Outer / From: AA000001 		$501.70 1
<6340B LR017929
PANEL - VALANCE
LH, Outer / From: AA000001 		$501.70 1
<10632 LR016841
MEMBER - SIDE
RH / From: AA000001 		$978.27 1
<10632 LR016842
MEMBER - SIDE
LH / From: AA000001 		$931.64 1
<10923 LR016865
CROSSMEMBER - FRONT
From: AA000001 		$376.58 1
<64697A LR051741
BRACKET - STOP START SYSTEM
Starter - Stop/Start System / Centre, Lower / From: EA000001 		$102.39 1
<64697B LR057987
BRACKET - STOP START SYSTEM
Starter - Stop/Start System / Centre, Upper / From: EA000001 		$383.57 1
<64697C LR051710
BRACKET - STOP START SYSTEM
RHD, Starter - Stop/Start System / RH, Side / From: EA000001 		$19.38 1
<64697C LR051709
BRACKET - STOP START SYSTEM
LHD, Starter - Stop/Start System / LH, Side / From: EA000001 		$15.70 1
<64697D LR057985
BRACKET - STOP START SYSTEM
RHD, Starter - Stop/Start System / LH, Side / From: EA000001 		$16.49 1
<64697D LR057986
BRACKET - STOP START SYSTEM
LHD, Starter - Stop/Start System / RH, Side / From: EA000001 		$201.50 1
HM1 ANR2224
HARDWARE - MISCELLANEOUS
8 X 20MM, Pin, Shield, Wheelarch / From: AA000001 		$2.70 7
HM1 ANR2224
HARDWARE - MISCELLANEOUS
8 X 20MM, Front, Pin, Shield / From: AA000001 		$2.70 5
HM1 ANR2224
HARDWARE - MISCELLANEOUS
8 X 20MM, Pin, Rear, Shield, Upper / From: AA000001 		$2.70 3
HM1 ANR2224
HARDWARE - MISCELLANEOUS
8 X 20MM, Lower, Pin, Rear, Shield / From: AA000001 		$2.70 2
HN1 LR016625
NUT
5.0L OHC SGDI NA V8 Petrol - AJ133 / Shield, Upper / From: AA000001 		$1.05 2
HN2 FN106046
NUT - HEX.
Starter - Stop/Start System / Bracket, Centre, Hexagonal Head, Lower, M6 / From: EA000001
IN STOCK 		$1.48 3
HN2 FN106046
NUT - HEX.
Starter - Stop/Start System / Bracket, Centre, Hexagonal Head, M6, Upper / From: EA000001
IN STOCK 		$1.48 2
HS1 LR106494
SCREW
M5 x 20MM, Self Tapping, Shield, Wheelarch / From: AA000001
IN STOCK 		$2.27 3
HS1 LR106494
SCREW
Lower, M5 x 20MM, Rear, Self Tapping, Shield / From: AA000001
IN STOCK 		$2.27 2
HT1 AYG500150
STUD - EARTH
Wheelarch / From: AA000001 		$4.75 3
HT2 ESR0567
STUD
6.2 X 3-5.8 / From: DA699647 		$3.42 4
5B076 ABD780100
REINFORCEMENT
RH / From: AA000001 		$41.01 1
5B076 ABD780110
REINFORCEMENT
LH / From: AA000001 		$82.02 1
10A687 LR053184
COVER - TRUNK TRAY
Starter - Stop/Start System / From: DA699647 		$58.82 1
16A126 AWW780022
GUSSET
RH / From: AA000001 / To: FA999999 		$146.38 1
16A126 AWW780032
GUSSET
LH / From: AA000001 / To: FA999999 		$146.38 1
16A126 LR079810
GUSSET
LH / From: GA000001 		$298.45 1
16A126 LR079813
GUSSET
RH / From: GA000001 		$40.27 1
16G554A CLF500253
SHIELD - SPLASH - WHEELHOUSE
LH, Wheelarch / From: AA000001 		$103.75 1
16G554A LR015162
SHIELD - SPLASH - WHEELHOUSE
RH, Wheelarch / From: AA000001 		$98.37 1
16G554B LR013052
SHIELD - FENDER APRON
3.0L DOHC GDI SC V6 PETROL / Centre, RH Side Only, Upper / From: AA000001 		$11.83 1
16G554C LR013055
SHIELD - FENDER APRON
3.0L DOHC GDI SC V6 PETROL / Front, RH Side Only / From: AA000001 		$75.46 1
16G554D LR013054
SHIELD - FENDER APRON
5.0L OHC SGDI NA V8 Petrol - AJ133 / Rear, RH Side Only, Upper / From: AA000001 		$15.16 1
16G554D LR052222
SHIELD - FENDER APRON
3.0L DOHC GDI SC V6 PETROL / Rear, RH Side Only, Upper / From: EA000001 		$75.77 1
16G554E LR013053
SHIELD - FENDER APRON
3.0L DOHC GDI SC V6 PETROL / Lower, Rear, RH Side Only / From: AA000001 		$11.83 1
16054 LR007145
APRON - FRONT FENDER
RH / From: AA000001 / To: DA999999 		$434.03 1
16054 LR007146
APRON - FRONT FENDER
LH / From: AA000001 / To: DA999999 		$384.85 1
16054 LR051733
APRON - FRONT FENDER
RH / From: EA000001 		$1,476.93 1
16054 LR051734
APRON - FRONT FENDER
LH / From: EA000001 		$1,550.85 1
16155 LR014974
ISOLATOR
RH, Lower / From: AA000001 		$28.32 1
16155 LR014996
ISOLATOR
LH, Lower / From: AA000001 		$30.36 1
71150 LR016862
WHEELARCH
RH / From: AA000001 		$792.23 1
71150 LR016863
WHEELARCH
LH / From: AA000001 		$792.23 1
