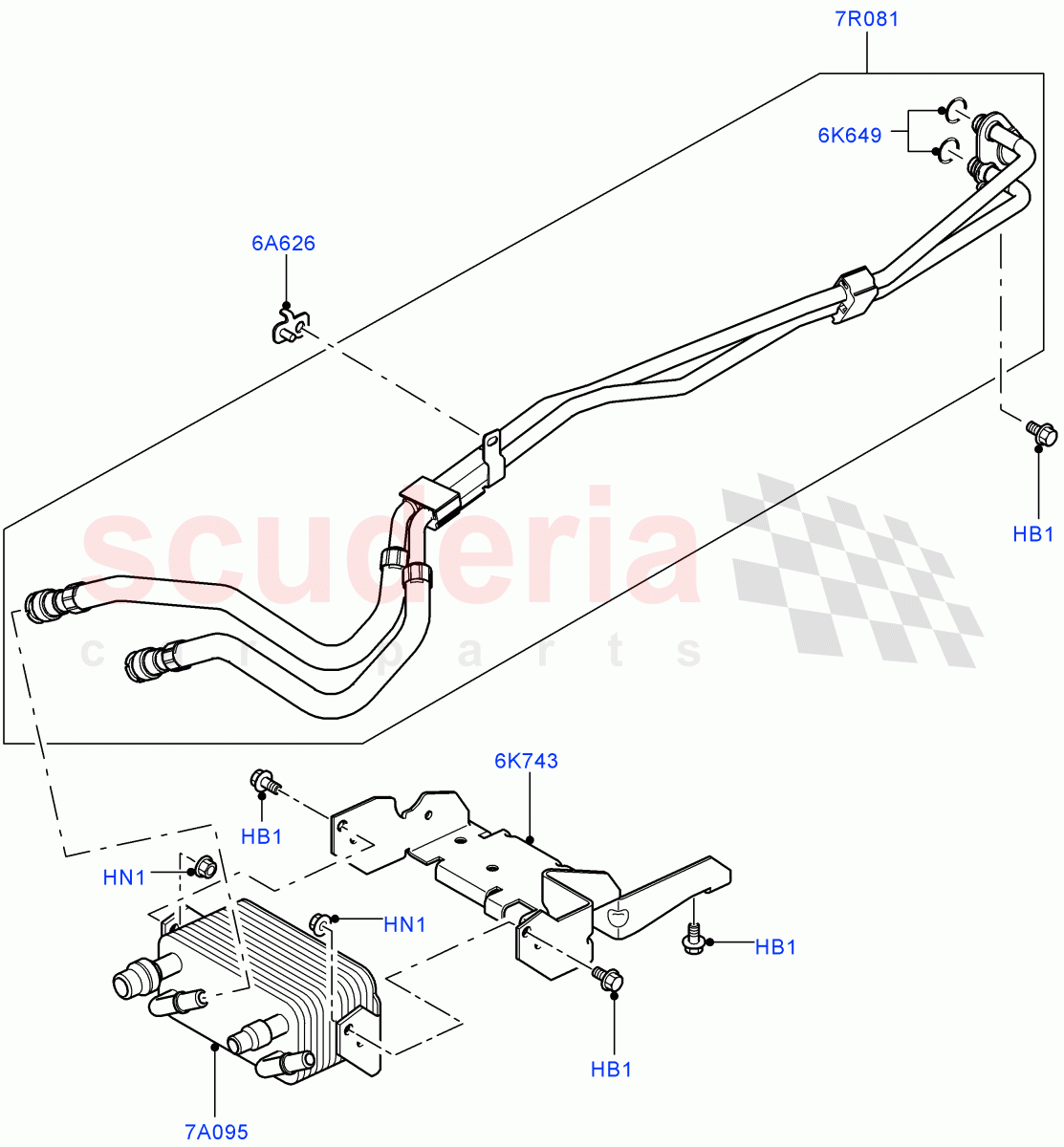

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108166	BOLT	$0.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FN108046	NUT - HEX.	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013731	BRACKET	$36.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049457	O-RING	$3.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013923	BRACKET	$83.49	To Order

Photo	Part No	Description	Price (each)	Stock
	UBC500101	OIL COOLER	$466.00	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108166	BOLT IN STOCK	FS108166 BOLT 3.0L 24V DOHC V6 TC Diesel / Hexagonal Head, M8 X 16MM / From: AA000001 IN STOCK	$0.68	6
HN1	FN108046	NUT - HEX.	FN108046 NUT - HEX. 3.0L 24V DOHC V6 TC Diesel / Hexagonal Head, M8 / From: AA000001	$1.97	4
6A626	LR013731	BRACKET	LR013731 BRACKET 3.0L 24V V6 Turbo Diesel Std Flow / From: AA000001	$36.56	1
6K649	LR049457	O-RING	LR049457 O-RING 3.0L 24V DOHC V6 TC Diesel / From: AA000001	$3.29	2
6K743	LR013923	BRACKET	LR013923 BRACKET 3.0L 24V V6 Turbo Diesel Std Flow / From: AA000001	$83.49	1
7A095	UBC500101	OIL COOLER	UBC500101 OIL COOLER 3.0L 24V V6 Turbo Diesel Std Flow / From: AA000001	$466.00	1
7R081	LR016218	TUBE - OIL COOLER	LR016218 TUBE - OIL COOLER 3.0L 24V DOHC V6 TC Diesel / Feed, Return, Transmission Cooler Line / From: AA000001 / To: CA607587	$267.04	1
7R081	LR037224	TUBE - OIL COOLER	LR037224 TUBE - OIL COOLER 3.0L 24V DOHC V6 TC Diesel / Feed, Return, Transmission Cooler Line / From: CA607588	$267.04	1
