Fuel Lines (Lion Diesel 2.7 V6 (140Kw)) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Fuel Lines (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001)

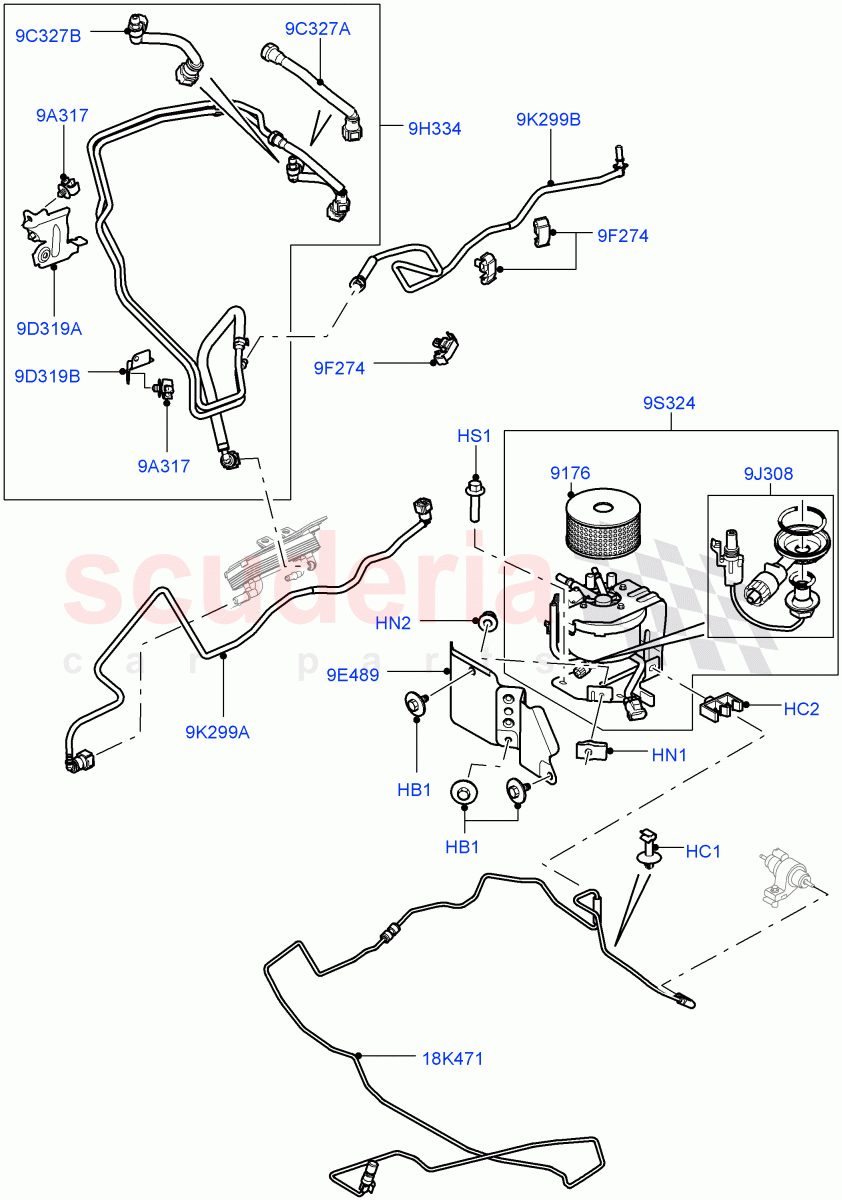

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
WYP500100 SCREW $0.78 To Order
Photo Part No Description Price (each) Stock
KYC500020 CLIP $5.94 To Order
Photo Part No Description Price (each) Stock
WYC500081 CLIP $5.35 To Order
Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED $1.62 IN STOCK
Photo Part No Description Price (each) Stock
AWR6715 NUT - SPECIAL $4.43 IN STOCK
Photo Part No Description Price (each) Stock
FS106257 Screw $0.15 To Order
Photo Part No Description Price (each) Stock
LR009705 ELEMENT - FUEL FILTER $97.30 To Order
Photo Part No Description Price (each) Stock
ESR1600 CLIP - FUEL PIPE SECURING $8.94 To Order
Photo Part No Description Price (each) Stock
WKU500090 SHIELD $15.05 To Order
Photo Part No Description Price (each) Stock
WJC500060 CLIP $5.19 To Order
Photo Part No Description Price (each) Stock
WJP502480 TUBE $254.83 To Order
Photo Part No Description Price (each) Stock
WKW500080 SENSOR - WATER DETECTOR $142.63 To Order
Photo Part No Description Price (each) Stock
LR010416 FILTER - FUEL $149.64 To Order
Photo Part No Description Price (each) Stock
WJP502050 TUBE - FUEL FEED $127.06 To Order
LR021664 TUBE - FUEL FEED $103.10 To Order
LR029671 TUBE - FUEL FEED $97.08 To Order
Photo Part No Description Price (each) Stock
WJP501980 HOSE $72.08 To Order
Photo Part No Description Price (each) Stock
WJP501960 HOSE - FUEL FEED $51.94 IN STOCK
Photo Part No Description Price (each) Stock
WJU500340 BRACKET $36.54 To Order
Photo Part No Description Price (each) Stock
WJU500350 BRACKET $34.80 To Order
Photo Part No Description Price (each) Stock
LR010352 PIPE - FUEL $187.03 To Order
Photo Part No Description Price (each) Stock
WJP502420 PIPE - FUEL $187.03 To Order
View All
Fuel Lines (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 WYP500100
SCREW
Hexagonal Head, M6 / From: AA000001 		$0.78 3
HC1 KYC500020
CLIP
With Fuel Fired Heater / For 		$5.94 7
HC2 WYC500081
CLIP
Double, For 		$5.35 1
HN1 LR000053
NUT - FLANGED
M6 / From: AA000001
IN STOCK 		$1.62 2
HN2 AWR6715
NUT - SPECIAL
M6 / From: AA000001
IN STOCK 		$4.43 2
HS1 FS106257
Screw
M6 X 25MM / From: AA000001 		$0.15 2
9A317 ESR1600
CLIP - FUEL PIPE SECURING
Double, For 		$8.94 4
9C327A WJP501980
HOSE
Return / From: AA000001 		$72.08 1
9C327B WJP501960
HOSE - FUEL FEED
Feed, Fuel Pump / From: AA000001
IN STOCK 		$51.94 1
9D319A WJU500340
BRACKET
From: AA000001 		$36.54 1
9D319B WJU500350
BRACKET
From: AA000001 		$34.80 1
9E489 WKU500090
SHIELD
From: AA000001 		$15.05 1
9F274 WJC500060
CLIP
Under Floor / From: AA000001 		$5.19 3
9H334 WJP502480
TUBE
Feed, Return, To Engine / From: AA000001 		$254.83 1
9J308 WKW500080
SENSOR - WATER DETECTOR
Sensor - Water Detector / From: AA000001 		$142.63 1
9K299A LR010352
PIPE - FUEL
From Fuel Cooler To Fuel Tank, Return / From: AA000001 		$187.03 1
9K299B WJP502420
PIPE - FUEL
Feed, From Fuel Tank To Under Floor Pipes / From: AA000001 		$187.03 1
9S324 LR010416
FILTER - FUEL
From: AA000001 		$149.64 1
18K471 WJP502050
TUBE - FUEL FEED
With Fuel Fired Heater / Supply From Pump, To Fuel Fired Heater / From: AA000001 / To: AA530094 		$127.06 1
18K471 LR021664
TUBE - FUEL FEED
With Fuel Fired Heater / Supply From Pump, To Fuel Fired Heater / From: AA530095 / To: BA999999 		$103.10 1
18K471 LR029671
TUBE - FUEL FEED
With Fuel Fired Heater / Supply From Pump, To Fuel Fired Heater / From: CA000001 		$97.08 1
9176 LR009705
ELEMENT - FUEL FILTER
Filter / From: AA000001 		$97.30 1
