Oil Pan/Oil Level Indicator (Lion Diesel 2.7 V6 (140Kw)) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Oil Pan/Oil Level Indicator (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6726224 SCREW $0.64 To Order
Photo Part No Description Price (each) Stock
4467593 BOLT - HEX.HEAD $0.70 To Order
4467593 BOLT - HEX.HEAD $0.70 To Order
Photo Part No Description Price (each) Stock
LR003718 BOLT $2.25 To Order
Photo Part No Description Price (each) Stock
1316048 TUBE - OIL PUMP INLET $89.71 To Order
Photo Part No Description Price (each) Stock
1359896 PAN - ENGINE OIL $367.26 To Order
Photo Part No Description Price (each) Stock
1365260 GASKET - OIL PAN $51.56 To Order
Photo Part No Description Price (each) Stock
LR073675 PLUG - OIL DRAIN $8.32 To Order
Photo Part No Description Price (each) Stock
LR003387 INDICATOR - OIL LEVEL $62.33 To Order
Photo Part No Description Price (each) Stock
LR003388 TUBE - OIL LEVEL INDICATOR $67.45 To Order
Photo Part No Description Price (each) Stock
1359056 SENDER - OIL TEMPERATURE $66.72 To Order
View All

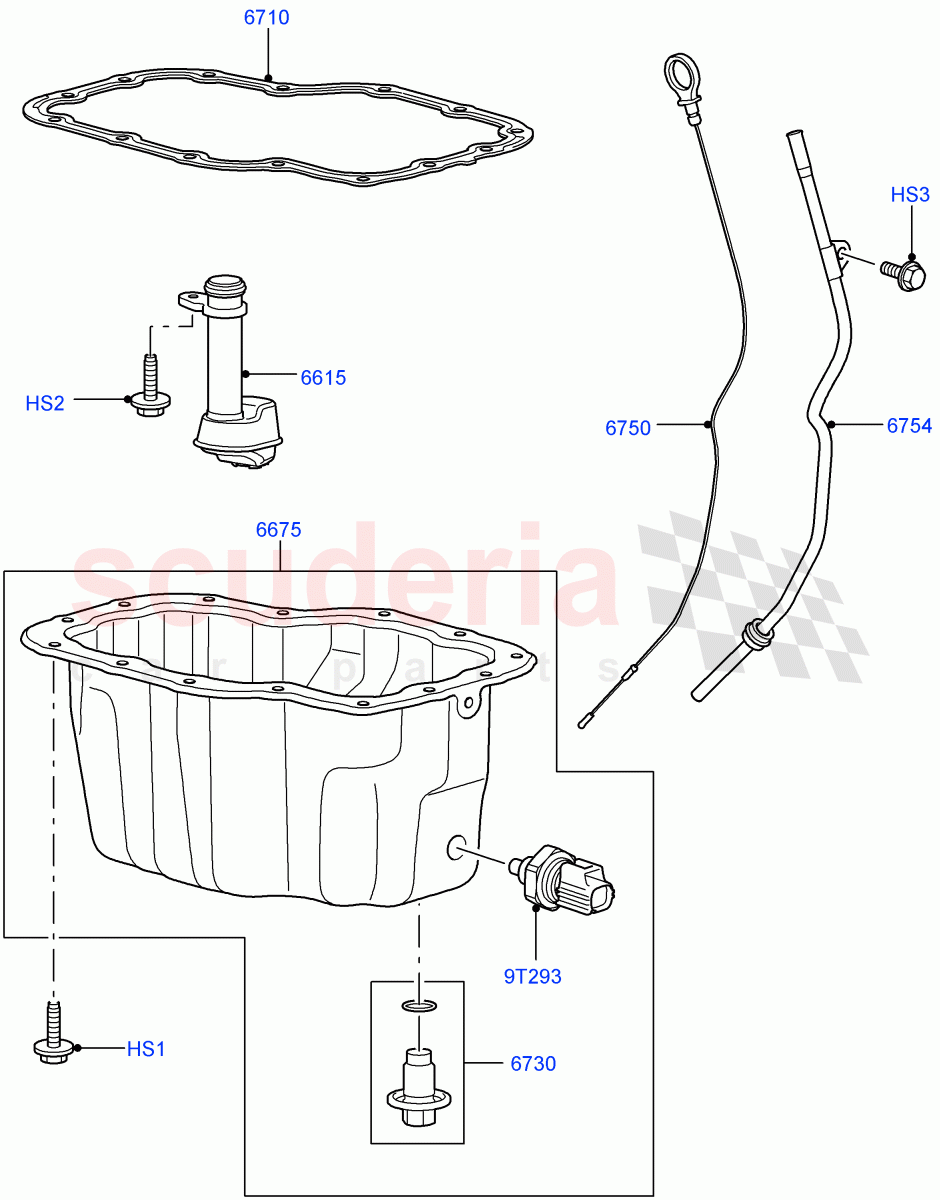

Oil Pan/Oil Level Indicator (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 6726224
SCREW
M6 X 16MM, Oil Pan / From: AA000001 		$0.64 14
HS2 4467593
BOLT - HEX.HEAD
Hexagonal Head, Inlet Tube, M6 X 20MM / From: AA000001 		$0.70 1
HS2 4467593
BOLT - HEX.HEAD
Hexagonal Head, M6 X 20MM, Water Pump / From: AA000001 		$0.70 3
HS3 LR003718
BOLT
M8 x 12MM, Tube Indicator / From: AA000001 		$2.25 1
9T293 1359056
SENDER - OIL TEMPERATURE
From: AA000001 		$66.72 1
6615 1316048
TUBE - OIL PUMP INLET
From: AA000001 		$89.71 1
6675 1359896
PAN - ENGINE OIL
From: AA000001 		$367.26 1
6710 1365260
GASKET - OIL PAN
From: AA000001 		$51.56 1
6730 LR073675
PLUG - OIL DRAIN
For Japan Only Order With LR Prefix, Head Size: 13mm, Includes Seal, M14 X 1.5 / From: AA000001 		$8.32 1
6750 LR003387
INDICATOR - OIL LEVEL
From: AA000001 		$62.33 1
6754 LR003388
TUBE - OIL LEVEL INDICATOR
From: AA000001 		$67.45 1
