Cooling System Pipes And Hoses (Lion Diesel 2.7 V6 (140Kw)) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Cooling System Pipes And Hoses (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
PYC101880 Clip $0.80 To Order
Photo Part No Description Price (each) Stock
FS106127L SCREW $2.01 To Order
Photo Part No Description Price (each) Stock
BYP500170 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
JHB501461 TUBE $36.05 To Order
Photo Part No Description Price (each) Stock
LR020009 THERMOSTAT $691.73 To Order
Photo Part No Description Price (each) Stock
PCH501072 HOSE - RADIATOR $25.13 To Order
Photo Part No Description Price (each) Stock
PIH500130 HOSE - RADIATOR $83.55 To Order
Photo Part No Description Price (each) Stock
PIH500091 HOSE - RADIATOR $36.88 To Order
Photo Part No Description Price (each) Stock
PEU500140 BRACKET $88.99 To Order
Photo Part No Description Price (each) Stock
PCH501351 HOSE - WATER OUTLET $42.52 To Order
Photo Part No Description Price (each) Stock
PIH500101 HOSE $78.51 To Order
Photo Part No Description Price (each) Stock
SYC100540L CLIP $0.77 To Order
Photo Part No Description Price (each) Stock
WAP500380 TUBE - EGR VALVE TO EXHAUST MANIFLD $248.13 To Order
Photo Part No Description Price (each) Stock
PEI500020 T-CONNECTOR $48.61 To Order
Photo Part No Description Price (each) Stock
LR006638 HOSE $139.99 To Order
Photo Part No Description Price (each) Stock
4346360 SENSOR - ENGINE COOLANT TEMPERATURE $59.82 To Order
Photo Part No Description Price (each) Stock
DYC101410 Clamp $2.72 To Order
Photo Part No Description Price (each) Stock
PYC102010 CLAMP $3.01 To Order
View All

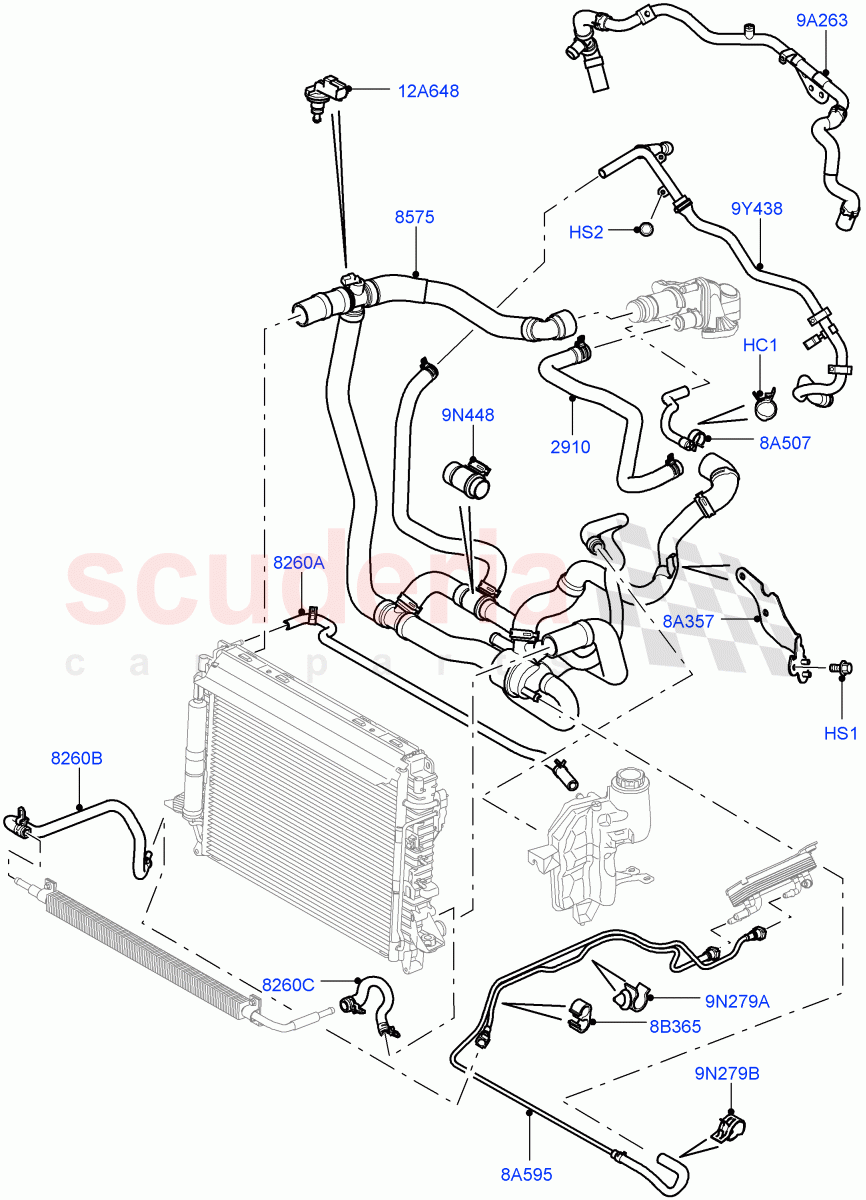

Cooling System Pipes And Hoses (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 PYC101880
Clip
23MM / From: AA000001 		$0.80 1
HS1 FS106127L
SCREW
M6 x 12MM / From: AA000001 		$2.01 1
HS2 BYP500170
SCREW
Hexagonal Head, M6 x 14MM / From: AA000001
IN STOCK 		$1.24 4
8A357 PEU500140
BRACKET
From: AA000001 		$88.99 1
8A507 PCH501351
HOSE - WATER OUTLET
Cooling System Bleed / From: AA000001 		$42.52 1
8A595 PIH500101
HOSE
For Fuel Cooler / From: AA000001 		$78.51 1
8B365 SYC100540L
CLIP
From: AA000001 		$0.77 5
9A263 WAP500380
TUBE - EGR VALVE TO EXHAUST MANIFLD
Cooled EGR, Outlet / From: AA000001 		$248.13 1
9N279A DYC101410
Clamp
From: AA000001 		$2.72 1
9N279B PYC102010
CLAMP
From: AA000001 		$3.01 1
9N448 PEI500020
T-CONNECTOR
From: AA000001 		$48.61 1
9Y438 LR006638
HOSE
Cooled EGR, Inlet / From: AA000001 		$139.99 1
12A648 4346360
SENSOR - ENGINE COOLANT TEMPERATURE
From: AA000001 		$59.82 1
2910 JHB501461
TUBE
With Fuel Fired Heater / From Engine To Fuel Fired Heater / From: AA000001 		$36.05 1
8260A PCH501072
HOSE - RADIATOR
From Reservoir To Radiator / From: AA000001 		$25.13 1
8260B PIH500130
HOSE - RADIATOR
RH / From: AA000001 		$83.55 1
8260C PIH500091
HOSE - RADIATOR
LH / From: AA000001 		$36.88 1
8575 LR020009
THERMOSTAT
Bottom, Engine To Radiator / From: AA000001 		$691.73 1
