Steering Column (Solihull Plant Build) ((V) Fromha000001)

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Steering Column (Solihull Plant Build) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
QYG500090 BOLT - HEX.HEAD $0.59 To Order
Photo Part No Description Price (each) Stock
LR033655 BOLT $2.25 IN STOCK
Photo Part No Description Price (each) Stock
LR020995 BOLT - SPECIAL $7.09 To Order
Photo Part No Description Price (each) Stock
RYH500570 NUT - ADJUSTING $2.85 To Order
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. $3.10 IN STOCK
Photo Part No Description Price (each) Stock
FYP500770 SCREW $2.10 To Order
FYP500770 SCREW $2.10 To Order
Photo Part No Description Price (each) Stock
LR106818 SCREW AND WASHER - HEX HEAD $2.85 To Order
Photo Part No Description Price (each) Stock
LR081618 LOCK - STEERING COLUMN $324.79 To Order
Photo Part No Description Price (each) Stock
LR033654 SHAFT - STEERING $191.40 To Order
Photo Part No Description Price (each) Stock
LR033647 JOINT - DOUBLE CRUCIFORM $266.71 To Order
LR033648 JOINT - DOUBLE CRUCIFORM $266.71 To Order
Photo Part No Description Price (each) Stock
LR033649 SEAL - STEERING COLUMN $89.87 To Order
LR033650 SEAL - STEERING COLUMN $93.47 To Order
Photo Part No Description Price (each) Stock
LR081615 STEERING COLUMN $3,142.27 To Order
LR081616 STEERING COLUMN $1,730.49 To Order
Photo Part No Description Price (each) Stock
LR074628 STEERING COLUMN $2,261.99 To Order
LR096518 STEERING COLUMN $1,768.75 To Order
Photo Part No Description Price (each) Stock
LR113399 STEERING COLUMN $2,352.63 To Order
View All

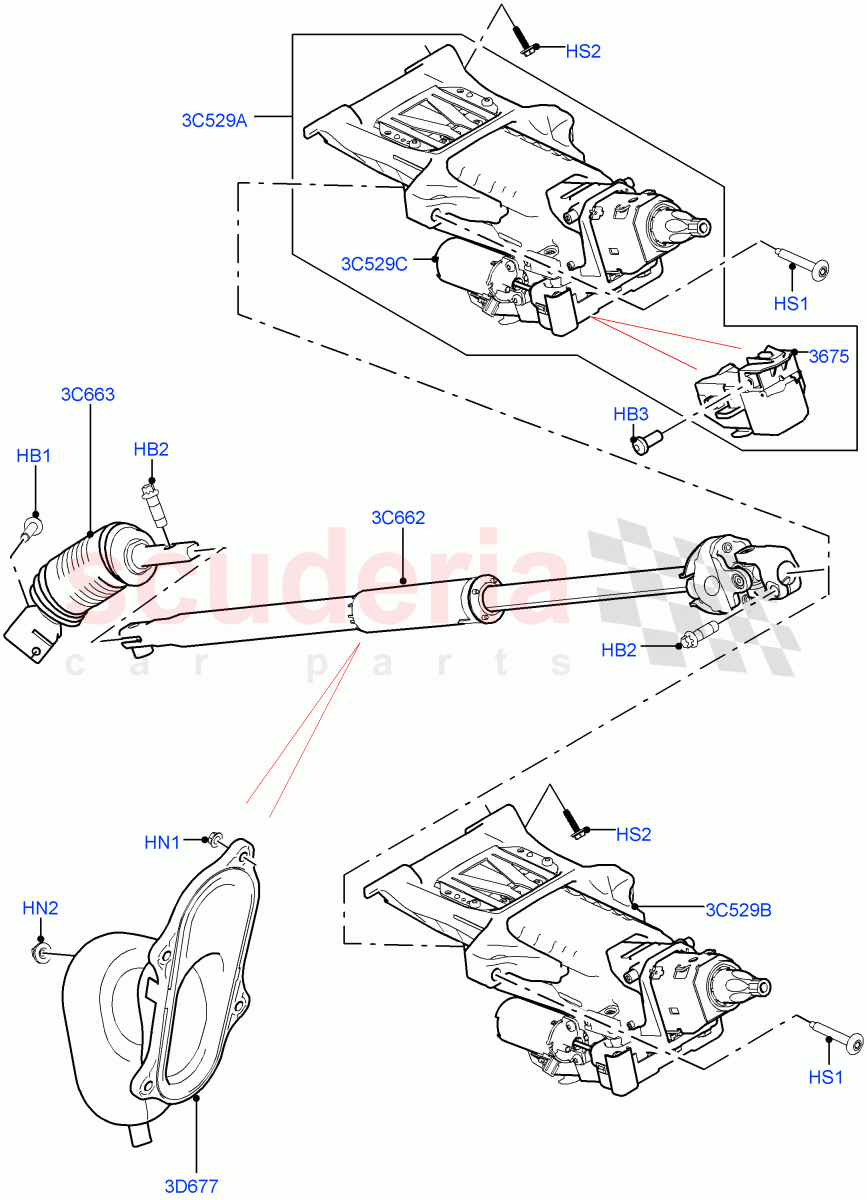

Steering Column (Solihull Plant Build) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 QYG500090
BOLT - HEX.HEAD
Hexagonal Head, M8 X 30 		$0.59 1
HB2 LR033655
BOLT
External Torx Head, M10 X 30MM
IN STOCK 		$2.25 2
HB3 LR020995
BOLT - SPECIAL
With Locking Steering Column, With Manual Tilt & Reach Adj Column / M6 X 14MM, Torx 		$7.09 2
HN1 RYH500570
NUT - ADJUSTING
M6 		$2.85 4
HN2 RYH500310
NUT AND WASHER - HEX.
Hexagonal Head, M6, Nut And Washer
IN STOCK 		$3.10 2
HS1 FYP500770
SCREW
M8 X 51MM, Torx / To: HA999999 		$2.10 4
HS1 FYP500770
SCREW
M8 X 51MM, Torx / From: JA000001 		$2.10 2
HS2 LR106818
SCREW AND WASHER - HEX HEAD
M8 x 32MM / From: JA000001 		$2.85 2
3C529A LR081615
STEERING COLUMN
Elec. Tilt & Reach Adj Strng Colmn, With Locking Steering Column / Upper 		$3,142.27 1
3C529A LR081616
STEERING COLUMN
With Locking Steering Column, With Manual Tilt & Reach Adj Column / Upper 		$1,730.49 1
3C529B LR074628
STEERING COLUMN
Elec. Tilt & Reach Adj Strng Colmn, Less Steering Column Lock / Upper 		$2,261.99 1
3C529B LR096518
STEERING COLUMN
Less Steering Column Lock, With Manual Tilt & Reach Adj Column / Upper 		$1,768.75 1
3C529C LR113399
STEERING COLUMN
With Locking Steering Column, With Manual Tilt & Reach Adj Column / Less Steering Column Lock 		$2,352.63 1
3C662 LR033654
SHAFT - STEERING
Lower, Steering Column 		$191.40 1
3C663 LR033647
JOINT - DOUBLE CRUCIFORM
LHD 		$266.71 1
3C663 LR033648
JOINT - DOUBLE CRUCIFORM
RHD 		$266.71 1
3D677 LR033649
SEAL - STEERING COLUMN
LHD 		$89.87 1
3D677 LR033650
SEAL - STEERING COLUMN
RHD 		$93.47 1
3675 LR081618
LOCK - STEERING COLUMN
With Locking Steering Column 		$324.79 1
