Name: Load Compartment Trim (Solihull Plant Build, Floor) ((V) FROMHA000001)
Rating: 5.0 (1 reviews)

View All

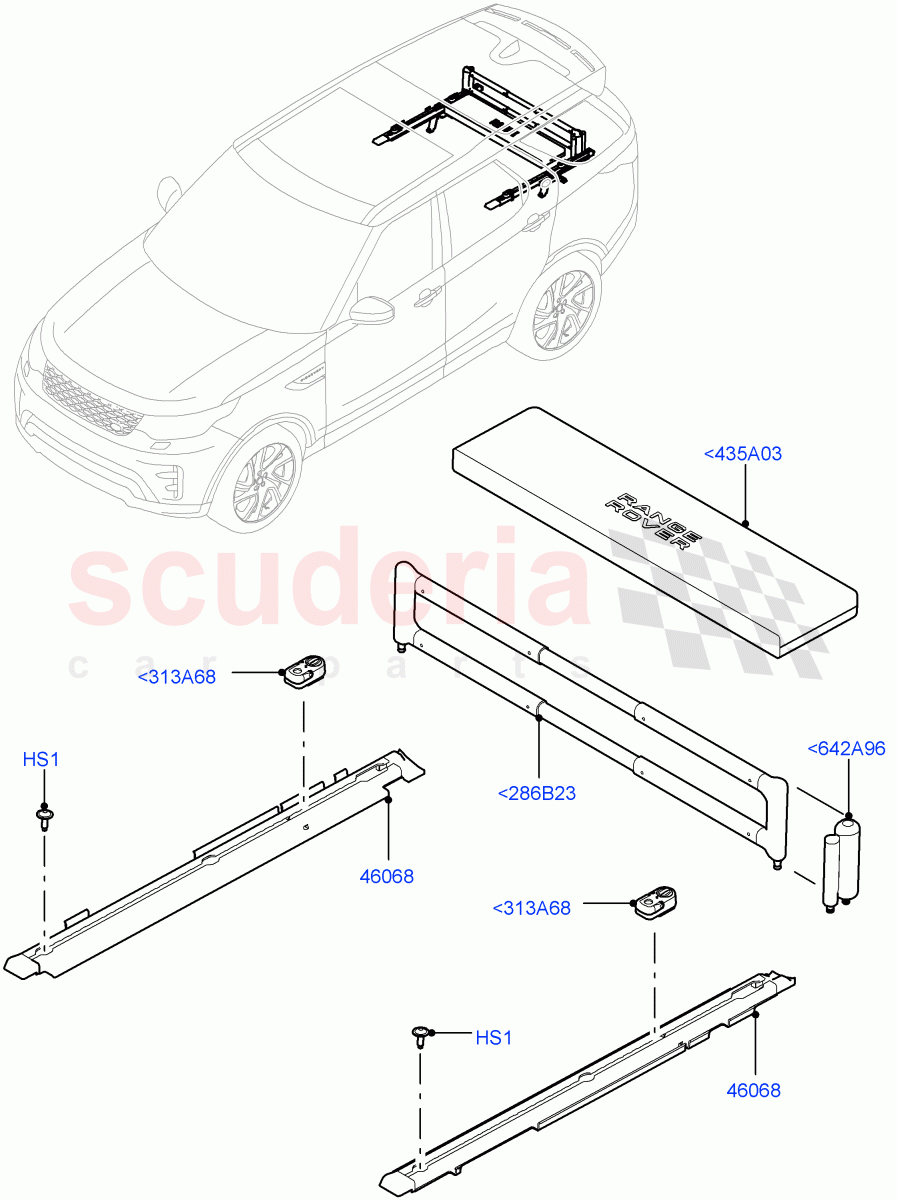

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR028301	SCREW	$1.24	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR038146	SUPPORT - LUGGAGE NET	$327.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038108	HOOK-LUGGAGE COMPARTMENT-TIE DOWN	$57.74	To Order
	LR038108	HOOK-LUGGAGE COMPARTMENT-TIE DOWN	$57.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095903	BAG - LUGGAGE HOLD DOWN	$177.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038145	STRAP - LUGGAGE HOLD DOWN	$183.57	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<286B23	LR038146	SUPPORT - LUGGAGE NET	LR038146 SUPPORT - LUGGAGE NET Luggage Hold Down	$327.00	1
<313A68	LR038108	HOOK-LUGGAGE COMPARTMENT-TIE DOWN	LR038108 HOOK-LUGGAGE COMPARTMENT-TIE DOWN Load Retainer Luggage Rails, With 5 Seat Configuration / To: KA999999	$57.74	1
<313A68	LR038108	HOOK-LUGGAGE COMPARTMENT-TIE DOWN	LR038108 HOOK-LUGGAGE COMPARTMENT-TIE DOWN From: LA000001	$57.74	1
<435A03	LR095903	BAG - LUGGAGE HOLD DOWN	LR095903 BAG - LUGGAGE HOLD DOWN Luggage Hold Down	$177.10	1
<642A96	LR038145	STRAP - LUGGAGE HOLD DOWN	LR038145 STRAP - LUGGAGE HOLD DOWN Luggage Hold Down	$183.57	1
HS1	LR028301	SCREW	LR028301 SCREW M8 X 21MM, Pan Head	$1.24	6
46068	LR082581	LUGGAGE RAILS	LR082581 LUGGAGE RAILS Load Retainer Luggage Rails, With 5 Seat Configuration / RH / To: KA999999	$523.22	1
46068	LR082582	LUGGAGE RAILS	LR082582 LUGGAGE RAILS Load Retainer Luggage Rails, With 5 Seat Configuration / LH / To: KA999999	$523.22	1
46068	LR082581	LUGGAGE RAILS	LR082581 LUGGAGE RAILS RH / From: LA000001	$523.22	1
46068	LR082582	LUGGAGE RAILS	LR082582 LUGGAGE RAILS LH / From: LA000001	$523.22	1

Load Compartment Trim (Solihull Plant Build, Floor) ((V) Fromha000001)

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6]
