Name: Auxiliary Fuel Fired Pre-Heater (Solihull Plant Build) (3.0 V6 D Low MT ROW, Fuel Heater W/Pk Heat With Remote, 3.0 V6 D Gen2 Mono Turbo, Fuel Fired Heater With Park Heat, 2.0L I4 DSL MID DOHC AJ200, 2.0L I4 DSL HIGH DOHC AJ200, 3.0 V6 D Gen2 Twin Turbo) ((V) FROMKA000001)
Rating: 4.6 (1 reviews)

Auxiliary Fuel Fired Pre-Heater (Solihull Plant Build) (3.0 V6 D Low MT ROW, Fuel Heater W/Pk Heat With Remote, 3.0 V6 D Gen2 Mono Turbo, Fuel Fired Heater With Park Heat, 2.0L I4 DSL MID DOHC AJ200, 2.0L I4 DSL HIGH DOHC AJ200, 3.0 V6 D Gen2 Twin Turbo) ((V) FROMKA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Auxiliary Fuel Fired Pre-Heater (Solihull Plant Build) (3.0 V6 D Low MT ROW, Fuel Heater W/Pk Heat...

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4147433	BOLT	$1.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FN106042	NUT	$1.08	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG501590	SCREW	$1.01	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR102051	PIPE - EXHAUST	$310.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101348	PUMP - WATER	$232.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR102052	HOSE - AUXILIARY HEATER OUTLET	$69.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117170	VALVE - HEATER WATER	$242.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101349	SEAL - HEATER	$12.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079262	TUBE - AUXILIARY HEATER EXHAUST	$240.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101347	TUBE - AUXILIARY HEATER SUPPLY	$51.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101420	HEATER - AUXILIARY	$1,010.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101424	WIRING - HEATER	$41.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117181	HEATER - AUXILIARY	$1,894.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101423	KIT - AUXILIARY HEATR - ADDIT.PARTS	$53.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101419	TUBE - AIR INLET	$51.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101422	BRACKET - HEATER MOUNTING	$38.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR102053	BRACKET - HEATER MOUNTING	$38.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR099636	BRACKET - TUBE	$8.47	To Order

View All

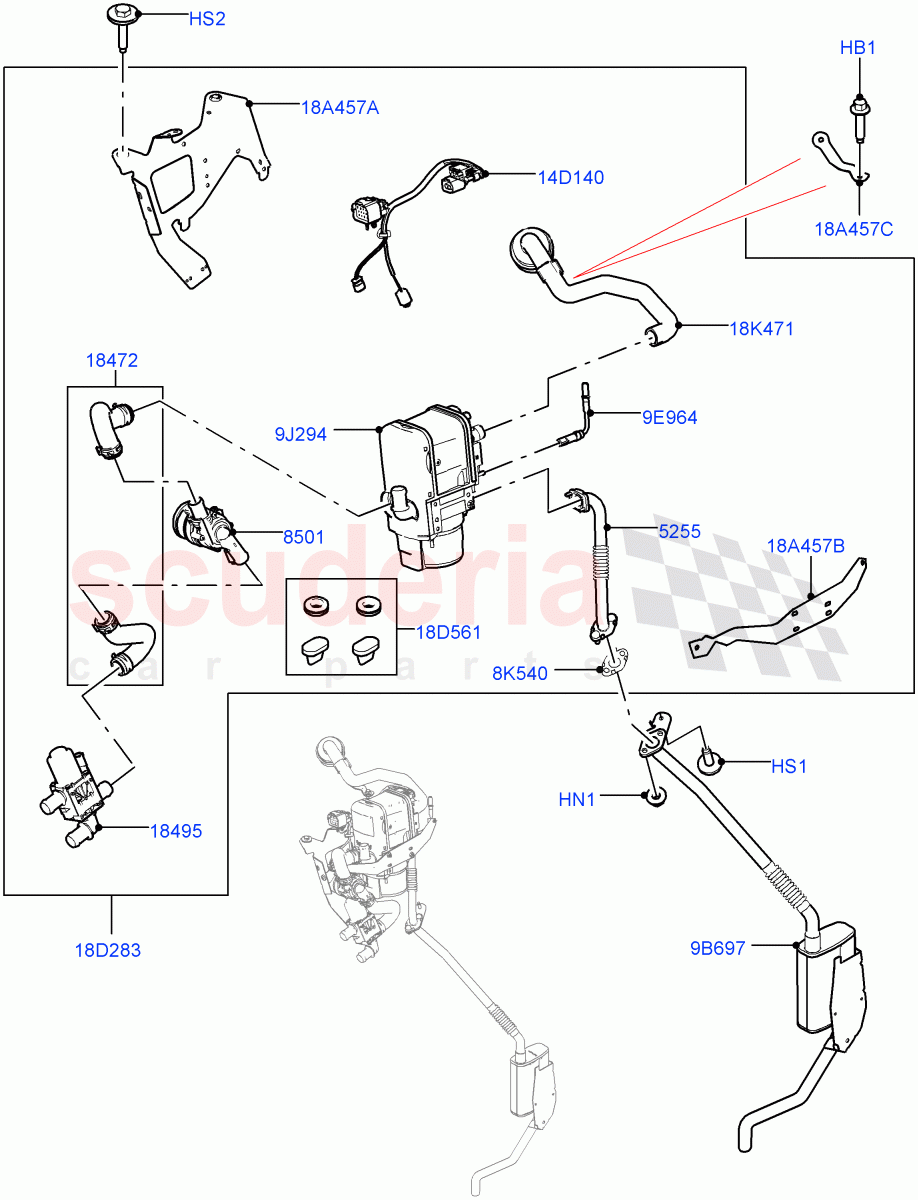

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	4147433	BOLT IN STOCK	4147433 BOLT M6 X 25MM / From: KA000001 IN STOCK	$1.70	1
HN1	FN106042	NUT IN STOCK	FN106042 NUT Hexagonal Head, M6 / From: KA000001 IN STOCK	$1.08	2
HS1	RYG501590	SCREW	RYG501590 SCREW Hexagonal Head, M6 X 20MM / From: KA000001	$1.01	1
HS2	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30 / From: KA000001	$4.27	2
8K540	LR101349	SEAL - HEATER	LR101349 SEAL - HEATER From: KA000001	$12.03	1
9B697	LR079262	TUBE - AUXILIARY HEATER EXHAUST	LR079262 TUBE - AUXILIARY HEATER EXHAUST From: KA000001	$240.03	1
9E964	LR101347	TUBE - AUXILIARY HEATER SUPPLY	LR101347 TUBE - AUXILIARY HEATER SUPPLY From: KA000001	$51.70	1
9J294	LR101420	HEATER - AUXILIARY	LR101420 HEATER - AUXILIARY From: KA000001	$1,010.83	1
14D140	LR101424	WIRING - HEATER	LR101424 WIRING - HEATER From: KA000001	$41.53	1
18A457A	LR101422	BRACKET - HEATER MOUNTING	LR101422 BRACKET - HEATER MOUNTING Main / From: KA000001	$38.53	1
18A457B	LR102053	BRACKET - HEATER MOUNTING	LR102053 BRACKET - HEATER MOUNTING Water Pump / From: KA000001	$38.16	1
18A457C	LR099636	BRACKET - TUBE	LR099636 BRACKET - TUBE Air Intake Hose / From: KA000001	$8.47	1
18D283	LR117181	HEATER - AUXILIARY	LR117181 HEATER - AUXILIARY Complete Assembly / From: KA000001	$1,894.39	1
18D561	LR101423	KIT - AUXILIARY HEATR - ADDIT.PARTS	LR101423 KIT - AUXILIARY HEATR - ADDIT.PARTS From: KA000001	$53.39	1
18K471	LR101419	TUBE - AIR INLET	LR101419 TUBE - AIR INLET From: KA000001	$51.80	1
5255	LR102051	PIPE - EXHAUST	LR102051 PIPE - EXHAUST From: KA000001	$310.87	1
8501	LR101348	PUMP - WATER	LR101348 PUMP - WATER From: KA000001	$232.19	1
18472	LR102052	HOSE - AUXILIARY HEATER OUTLET	LR102052 HOSE - AUXILIARY HEATER OUTLET From: KA000001	$69.61	1
18495	LR117170	VALVE - HEATER WATER	LR117170 VALVE - HEATER WATER From: KA000001	$242.41	1

Auxiliary Fuel Fired Pre-Heater (Solihull Plant Build) (3.0 V6 D Low Mt Row, Fuel Heater W/Pk Heat...

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6]

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Auxiliary Fuel Fired Pre-Heater (Solihull Plant Build) (3.0 V6 D Low MT ROW, Fuel Heater W/Pk Heat...
