Name: Anti-Lock Braking System (ABS Modulator, Nitra Plant Build) ((V) FROMK2000001, (V) TOL2999999)
Rating: 5.0 (1 reviews)

View All

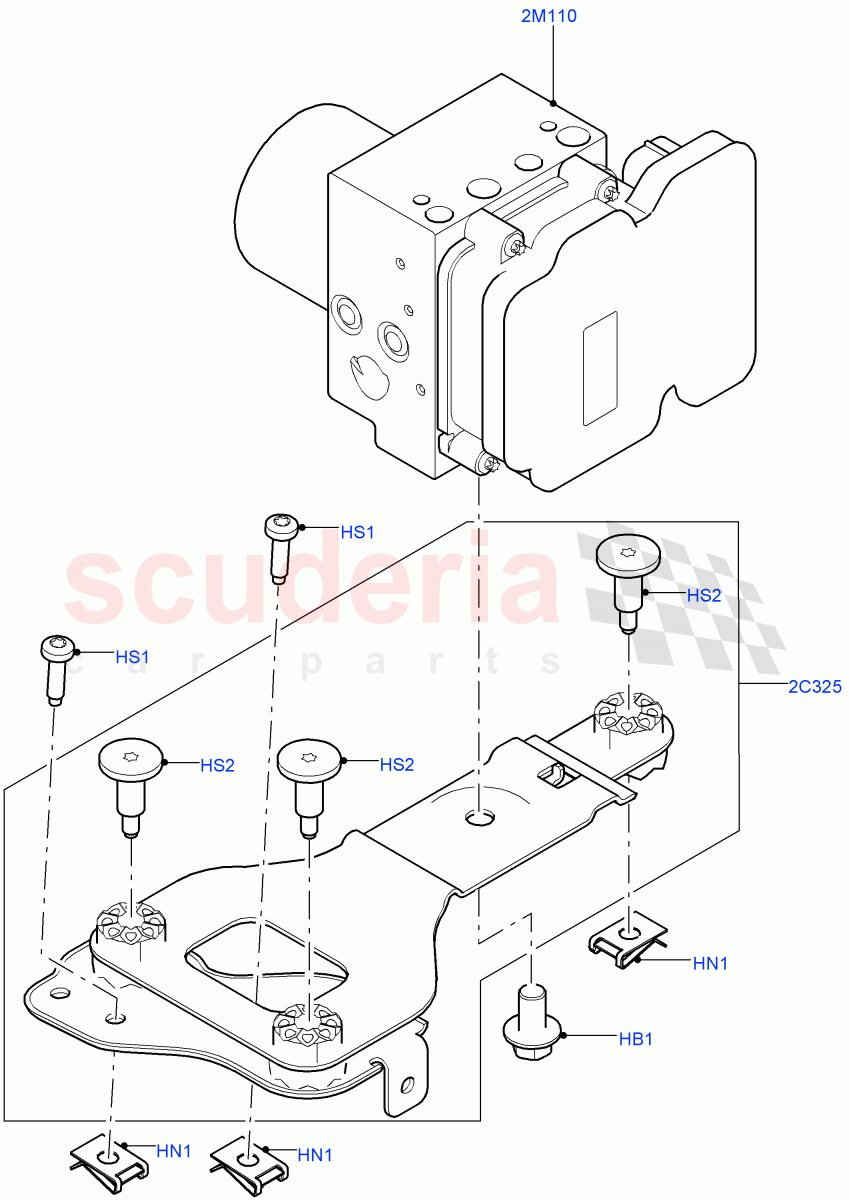

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR033469	BOLT	$1.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027995	NUT	$1.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4648959	SCREW	$4.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011889	SCREW	$4.04	To Order

...and 4 more part variants. See table on right for more details.

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR033469	BOLT	LR033469 BOLT Hexagonal Head, M10 X 17 / From: K2000001	$1.56	1
HN1	LR027995	NUT IN STOCK	LR027995 NUT M6 X 0.7 - 4, Nut "U" Spring / From: K2000001 IN STOCK	$1.02	3
HS1	4648959	SCREW	4648959 SCREW M6 X 20MM, Torx / From: K2000001	$4.12	2
HS2	LR011889	SCREW	LR011889 SCREW M6 x 29MM, Torx / From: K2000001	$4.04	3
2C325	LR033466	BRACKET - ABS MODULATOR	LR033466 BRACKET - ABS MODULATOR LHD / From: K2000001	$44.81	1
2C325	LR033467	BRACKET - ABS MODULATOR	LR033467 BRACKET - ABS MODULATOR RHD / From: K2000001	$42.98	1
2M110	LR117873	MODULATOR - ABS	LR117873 MODULATOR - ABS ABS / From: K2000001 / To: K2408538	$2,412.07	1
2M110	LR133113	MODULATOR - ABS	LR133113 MODULATOR - ABS ABS / From: L2000001 / To: L2438930	$2,749.14	1
2M110	LR140560	MODULATOR - ABS	LR140560 MODULATOR - ABS ABS / From: K2408539 / To: K2414538	$2,297.23	1
2M110	LR143019	MODULATOR - ABS	LR143019 MODULATOR - ABS ABS / From: L2438931 / To: L2446339	$2,415.84	1
2M110	LR154220	MODULATOR - ABS	LR154220 MODULATOR - ABS ABS / From: K2414539 / To: K2999999	$2,792.63	1
2M110	LR149365	MODULATOR - ABS	LR149365 MODULATOR - ABS ABS / From: L2446340 / To: L2448339	$3,054.97	1
2M110	LR159944	MODULATOR - ABS	LR159944 MODULATOR - ABS ABS / From: L2448340	$2,751.06	1

Anti-Lock Braking System (Abs Modulator, Nitra Plant Build) ((V) Fromk2000001, (V) Tol2999999)

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6]
