Name: Auto Trans Assy & Speedometer Drive (Nitra Plant Build) (3.0L AJ20D6 Diesel High, 8 Speed Auto Trans ZF 8HP76) ((V) FROMM2000001)
Rating: 5.0 (1 reviews)

Auto Trans Assy & Speedometer Drive (Nitra Plant Build) (3.0L AJ20D6 Diesel High, 8 Speed Auto Trans ZF 8HP76) ((V) FROMM2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Auto Trans Assy & Speedometer Drive (Nitra Plant Build) (3.0L AJ20D6 Diesel High, 8 Speed Auto...

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FB110156	BOLT - HEX.HEAD	$2.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR148891	CLIP	$3.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078426	FASTENER - COVER	$1.45	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500040	FASTENER	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR027995	NUT	$1.01	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR042472	SCREW	$0.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017279	STUD	$2.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125283	AUTOMATIC TRANSMISSION	$12,218.19	To Order
	LR159573	AUTOMATIC TRANSMISSION	$15,975.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135017	HEAT SHIELD - TRANSMISSION	$25.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155054	HEAT SHIELD - TRANSMISSION	$73.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123854	GROMMET - CONVERTER ACCESS	$7.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142018	TUBE - TRANSMISSION VENTILATION	$62.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142020	TUBE - TRANSMISSION VENTILATION	$44.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125280	INSULATOR - TRANSMISSION	$183.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125281	INSULATOR - TRANSMISSION	$183.55	To Order

View All

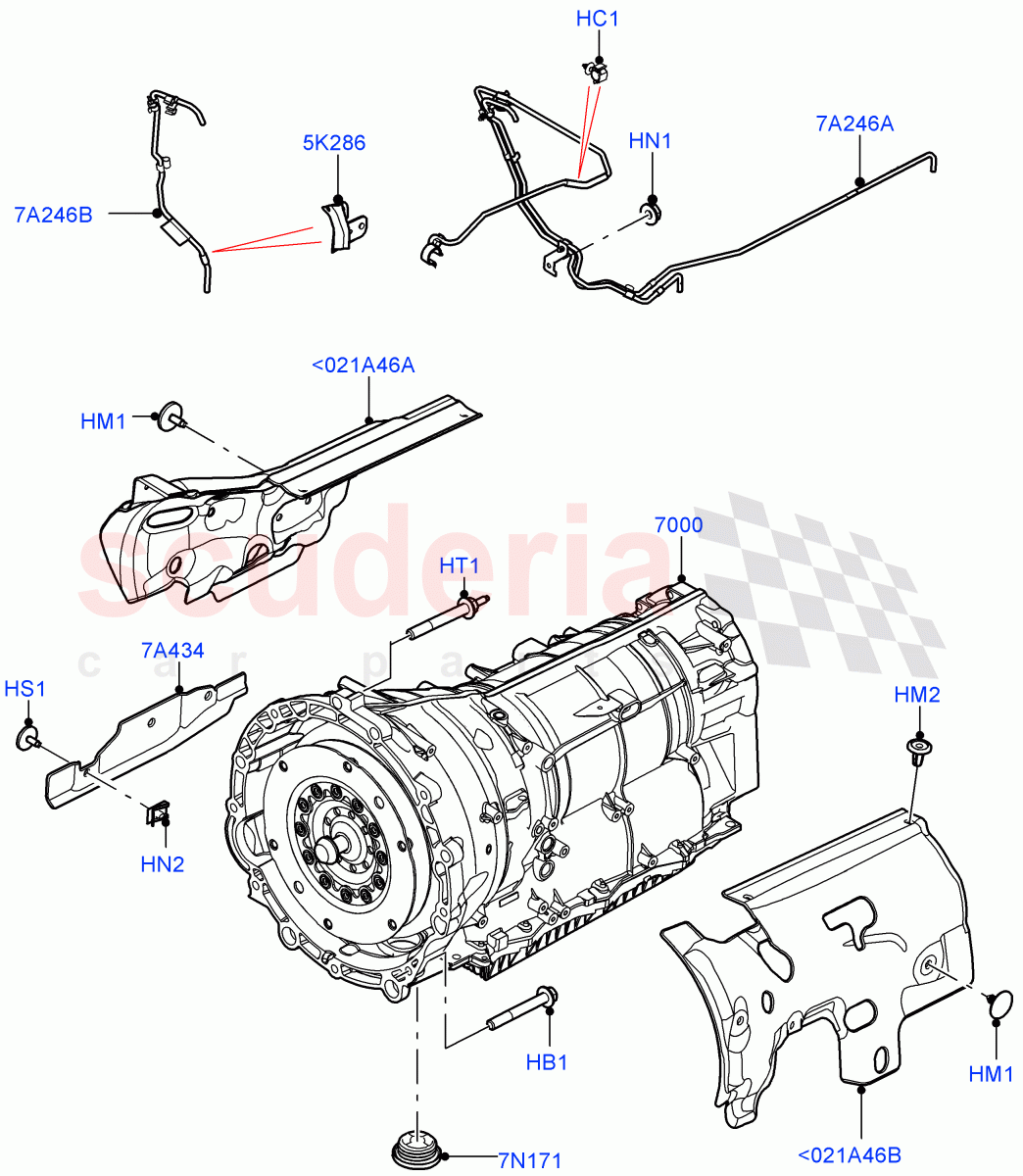

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<021A46A	LR125280	INSULATOR - TRANSMISSION	LR125280 INSULATOR - TRANSMISSION Thermal Encapsulation Covers / RH / From: M2000001	$183.55	1
<021A46B	LR125281	INSULATOR - TRANSMISSION	LR125281 INSULATOR - TRANSMISSION Thermal Encapsulation Covers / LH / From: M2000001	$183.55	1
HB1	FB110156	BOLT - HEX.HEAD IN STOCK	FB110156 BOLT - HEX.HEAD Hexagonal Head, M10 x 75MM, Transmission To Engine / From: M2000001 IN STOCK	$2.69	5
HC1	LR148891	CLIP	LR148891 CLIP Breather Pipe / From: MA000001	$3.32	1
HM1	LR078426	FASTENER - COVER	LR078426 FASTENER - COVER Thermal Encapsulation Covers / 4.75 x 0.76 - 7.9 / From: M2000001	$1.45	5
HM2	RYQ500040	FASTENER IN STOCK	RYQ500040 FASTENER Thermal Encapsulation Covers / 6.25 x 1.6/6MM / From: M2000001 IN STOCK	$0.61	2
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Breather, Hexagonal Head, M6 / From: M2000001 IN STOCK	$1.47	1
HN2	LR027995	NUT IN STOCK	LR027995 NUT Proconve L6 Emissions / M6 X 0.7 - 4, Nut "U" Spring / From: M2000001 IN STOCK	$1.01	1
HS1	LR042472	SCREW	LR042472 SCREW Proconve L6 Emissions / Hexagonal Head, M6 X 16MM / From: M2000001	$0.99	3
HT1	LR017279	STUD	LR017279 STUD M10 x 75MM, M6 X 16MM, Transmission To Engine / From: M2000001	$2.21	3
5K286	LR135017	HEAT SHIELD - TRANSMISSION	LR135017 HEAT SHIELD - TRANSMISSION Breather Pipe / From: M2000001	$25.30	1
7A246A	LR142018	TUBE - TRANSMISSION VENTILATION	LR142018 TUBE - TRANSMISSION VENTILATION Includes Bracket / From: M2000001	$62.15	1
7A246B	LR142020	TUBE - TRANSMISSION VENTILATION	LR142020 TUBE - TRANSMISSION VENTILATION Bell Housing / From: M2000001	$44.30	1
7A434	LR155054	HEAT SHIELD - TRANSMISSION	LR155054 HEAT SHIELD - TRANSMISSION Euro Stage 4 Emissions / RH Lower / From: M2000001	$73.10	1
7N171	LR123854	GROMMET - CONVERTER ACCESS	LR123854 GROMMET - CONVERTER ACCESS Converter Drain Access / From: M2000001	$7.38	1
7000	LR125283	AUTOMATIC TRANSMISSION	LR125283 AUTOMATIC TRANSMISSION Includes Converter / From: M2000001 / To: M2999999	$12,218.19	1
7000	LR159573	AUTOMATIC TRANSMISSION	LR159573 AUTOMATIC TRANSMISSION Includes Converter / From: N2000001	$15,975.43	1
