Fuel Tank & Related Parts (Nitra Plant Build) (3.0L Aj20P6 Petrol High) ((V) Fromm2000001)

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Fuel Tank & Related Parts (Nitra Plant Build) (3.0L AJ20P6 Petrol High) ((V) FROMM2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR093364 BOLT $2.81 To Order
Photo Part No Description Price (each) Stock
LR093365 CLIP $2.05 To Order
Photo Part No Description Price (each) Stock
LR094032 CLIP - HOSE $4.40 To Order
Photo Part No Description Price (each) Stock
LR061655 CLAMP - FUEL SUPPLY TUBE $6.10 To Order
Photo Part No Description Price (each) Stock
RYG500900 SCREW $4.20 To Order
Photo Part No Description Price (each) Stock
LR136780 TANK - FUEL $1,248.82 To Order
Photo Part No Description Price (each) Stock
LR138718 CAP - FUEL TANK FILLER $39.20 To Order
LR138720 CAP - FUEL TANK FILLER $39.20 To Order
Photo Part No Description Price (each) Stock
LR082767 PIPE - FUEL FILLER $330.67 To Order
LR082768 PIPE - FUEL FILLER $354.40 To Order
Photo Part No Description Price (each) Stock
LR082775 HOSE - FILLER PIPE $146.74 To Order
LR082774 HOSE - FILLER PIPE $146.93 To Order
Photo Part No Description Price (each) Stock
LR148067 SHIELD $658.34 To Order
Photo Part No Description Price (each) Stock
LR125885 TUBE - FUEL $35.79 To Order
Photo Part No Description Price (each) Stock
LR082442 TUBE - VENTILATION $96.23 To Order
LR138423 TUBE - VENTILATION $166.11 To Order
View All

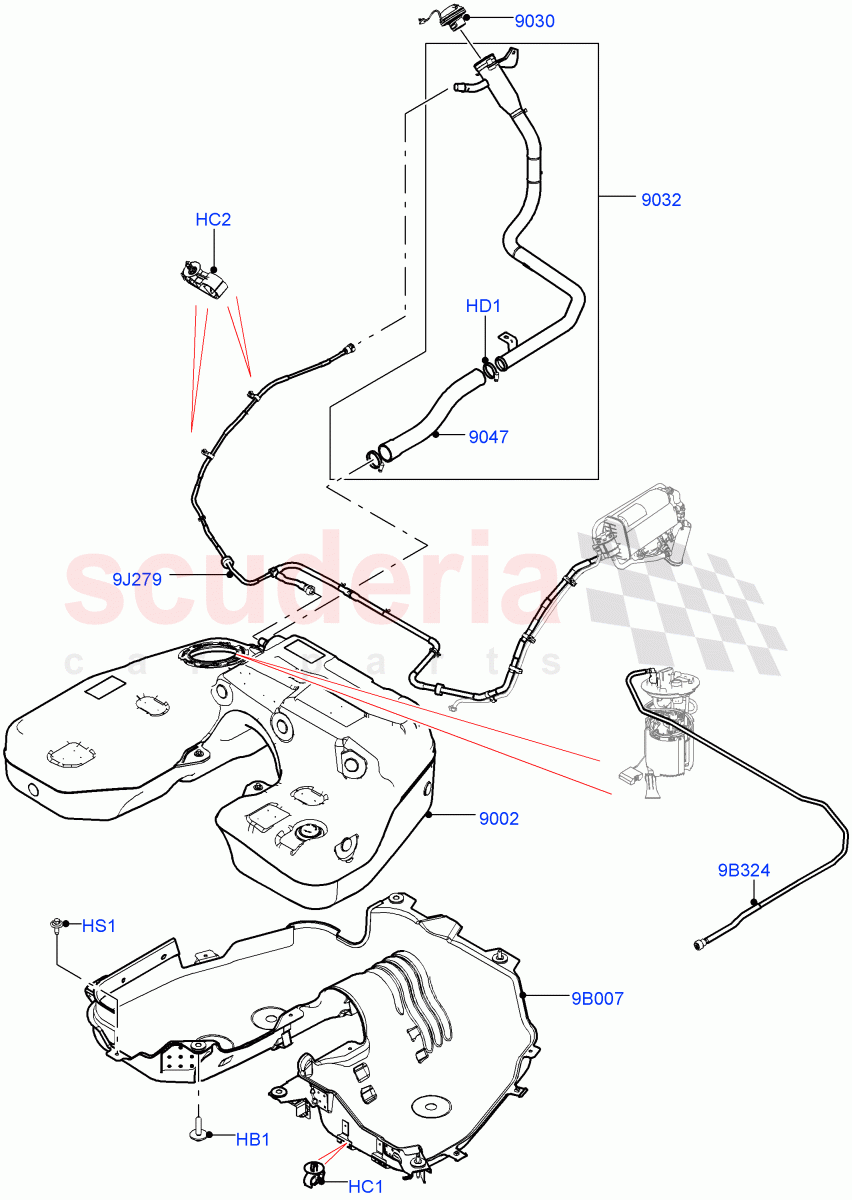

Fuel Tank & Related Parts (Nitra Plant Build) (3.0L AJ20P6 Petrol High) ((V) FROMM2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR093364
BOLT
Hexagonal Head, M10 X 50MM, To Body / From: M2000001 		$2.81 7
HC1 LR093365
CLIP
Shield / From: M2000001 		$2.05 2
HC2 LR094032
CLIP - HOSE
Breather Pipe, Plastic / From: M2000001 		$4.40 2
HD1 LR061655
CLAMP - FUEL SUPPLY TUBE
35-50 x 9 / From: M2000001 		$6.10 1
HS1 RYG500900
SCREW
Bolt And Washer, Hexagonal Head, M6X30 / From: M2000001 		$4.20 5
9B007 LR148067
SHIELD
From: M2000001 		$658.34 1
9B324 LR125885
TUBE - FUEL
Feed / From: M2000001 		$35.79 1
9J279 LR082442
TUBE - VENTILATION
Fuel Tank Filler Neck - Unleaded / From: M2000001 		$96.23 1
9J279 LR138423
TUBE - VENTILATION
Narrow Filler Neck - Unleaded / From: M2000001 		$166.11 1
9002 LR136780
TANK - FUEL
From: M2000001 		$1,248.82 1
9030 LR138718
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Unleaded / From: M2000001 		$39.20 1
9030 LR138720
CAP - FUEL TANK FILLER
Narrow Filler Neck - Unleaded / From: M2000001 		$39.20 1
9032 LR082767
PIPE - FUEL FILLER
Fuel Tank Filler Neck - DMTL / From: M2000001 		$330.67 1
9032 LR082768
PIPE - FUEL FILLER
Fuel Tank Filler Neck - Unleaded / From: M2000001 		$354.40 1
9047 LR082775
HOSE - FILLER PIPE
Fuel Tank Filler Neck - Unleaded / From: M2000001 		$146.74 1
9047 LR082774
HOSE - FILLER PIPE
Narrow Filler Neck - Unleaded / From: M2000001 		$146.93 1
