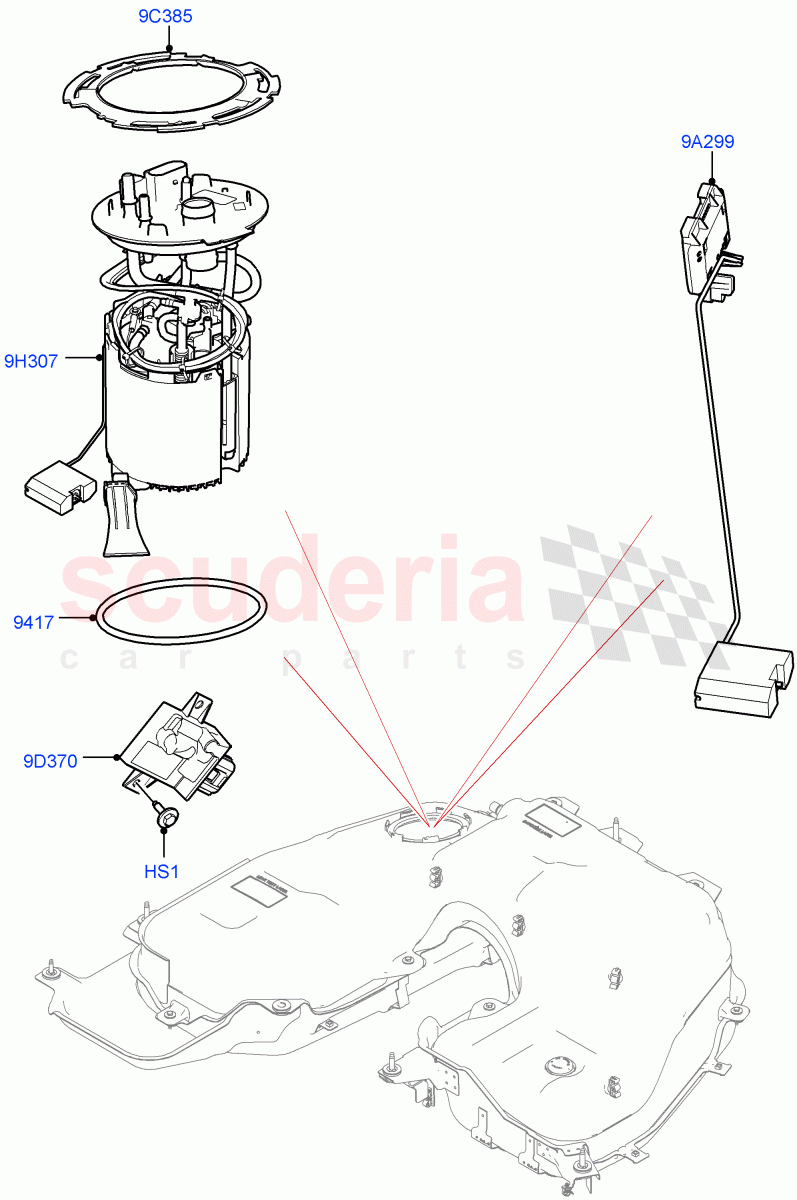

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR066438	SCREW	$3.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117476	GASKET	$10.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR125195	SENDER - FUEL TANK	$142.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117478	RING - RETAINING	$33.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR187425	CONTROL - FUEL PUMP DRIVE	$268.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082740	PUMP - FUEL	$637.08	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR066438	SCREW	LR066438 SCREW Hexagonal Head, M6 X 20MM / From: M2000001	$3.06	2
9A299	LR125195	SENDER - FUEL TANK	LR125195 SENDER - FUEL TANK LH / From: M2000001	$142.76	1
9C385	LR117478	RING - RETAINING	LR117478 RING - RETAINING From: M2000001	$33.68	1
9D370	LR187425	CONTROL - FUEL PUMP DRIVE	LR187425 CONTROL - FUEL PUMP DRIVE From: M2000001	$268.67	1
9H307	LR082740	PUMP - FUEL	LR082740 PUMP - FUEL RH / From: M2000001	$637.08	1
9417	LR117476	GASKET IN STOCK	LR117476 GASKET O-Ring / From: M2000001 IN STOCK	$10.53	1
