Name: Rear Exhaust System (Nitra Plant Build) (3.0L AJ20P6 Petrol High) ((V) FROMM2000001)
Rating: 5.0 (1 reviews)

Rear Exhaust System (Nitra Plant Build) (3.0L AJ20P6 Petrol High) ((V) FROMM2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Rear Exhaust System (Nitra Plant Build) (3.0L AJ20P6 Petrol High) ((V) FROMM2000001)

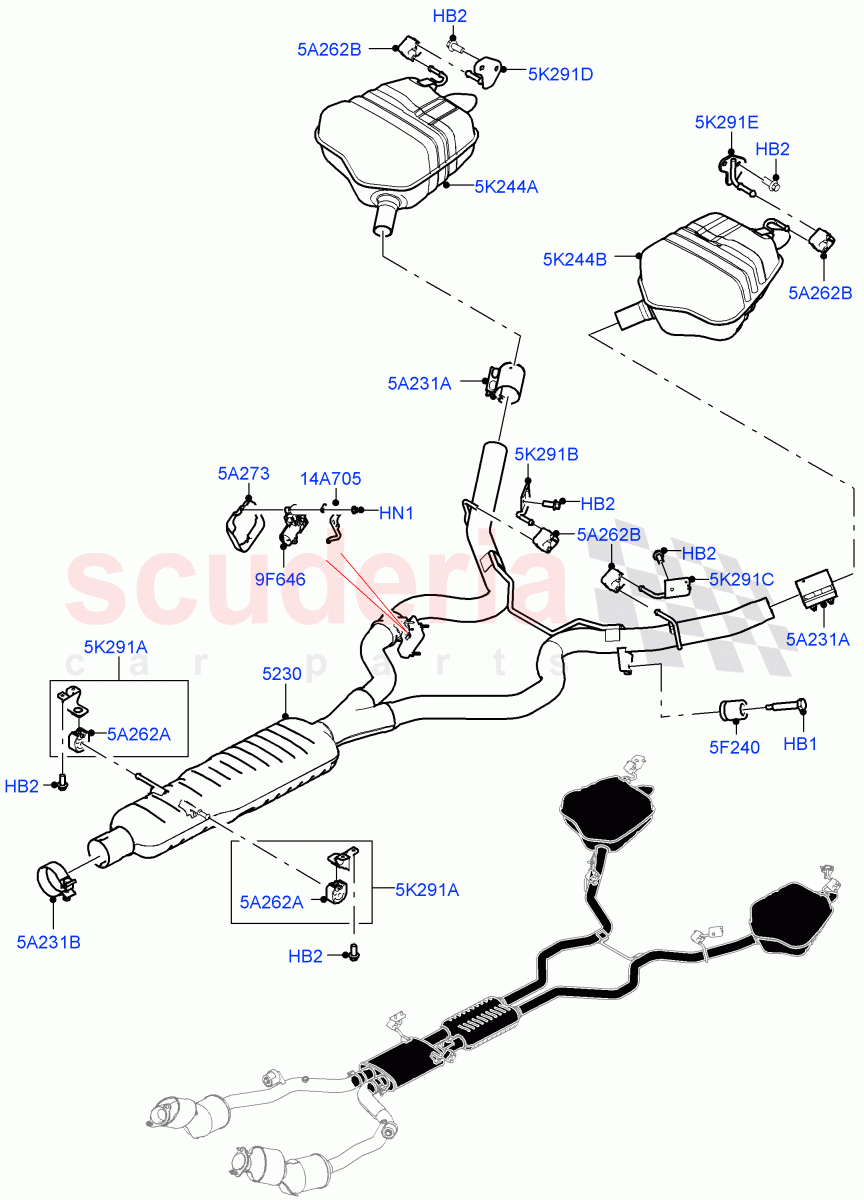

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	WYG500060	BOLT	$2.64	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR142475	NUT - HEX.	$1.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR143216	MUFFLER - CENTRE	$1,509.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR143219	HEAT SHIELD - EXHAUST DAMPER	$33.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR144897	DAMPER - EXHAUST SYSTEM	$76.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139396	ACTUATOR - ELECTRONIC EXHAUST VALVE	$231.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR143220	BRACKET - WIRING	$12.06	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500040	CLAMP - EXHAUST	$87.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125187	CLAMP	$32.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093418	INSULATOR - RUBBER	$36.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	$24.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR143214	MUFFLER - REAR	$1,366.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR143213	MUFFLER - REAR	$1,366.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110248	BRACKET - REAR MUFFLER	$47.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088295	BRACKET - EXHAUST	$30.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088302	BRACKET - EXHAUST	$30.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082704	BRACKET - REAR MUFFLER	$49.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082707	BRACKET - REAR MUFFLER	$49.19	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	WYG500060	BOLT	WYG500060 BOLT M8 X 70 - 8.8, Self Locking / From: M2000001	$2.64	1
HB2	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM / From: M2000001 IN STOCK	$2.29	10
HN1	LR142475	NUT - HEX.	LR142475 NUT - HEX. Actuator, Hexagonal Head, M5 X 0.8 / From: M2000001	$1.39	3
5A231A	WCL500040	CLAMP - EXHAUST	WCL500040 CLAMP - EXHAUST 60MM, For Rear Muffler / From: M2000001	$87.51	2
5A231B	LR125187	CLAMP	LR125187 CLAMP 75MM, Front / From: M2000001	$32.77	1
5A262A	LR093418	INSULATOR - RUBBER	LR093418 INSULATOR - RUBBER RESONATOR, RH And LH / From: M2000001	$36.56	2
5A262B	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER From: M2000001	$24.15	4
5A273	LR143219	HEAT SHIELD - EXHAUST DAMPER	LR143219 HEAT SHIELD - EXHAUST DAMPER Actuator / From: M2000001	$33.93	1
5F240	LR144897	DAMPER - EXHAUST SYSTEM	LR144897 DAMPER - EXHAUST SYSTEM LH / From: M2000001	$76.18	1
5K244A	LR143214	MUFFLER - REAR	LR143214 MUFFLER - REAR RH / From: M2000001	$1,366.16	1
5K244B	LR143213	MUFFLER - REAR	LR143213 MUFFLER - REAR LH / From: M2000001	$1,366.16	1
5K291A	LR110248	BRACKET - REAR MUFFLER	LR110248 BRACKET - REAR MUFFLER RESONATOR, RH And LH / From: M2000001	$47.41	2
5K291B	LR088295	BRACKET - EXHAUST	LR088295 BRACKET - EXHAUST RH Centre / From: M2000001	$30.53	1
5K291C	LR088302	BRACKET - EXHAUST	LR088302 BRACKET - EXHAUST LH Centre / From: M2000001	$30.53	1
5K291D	LR082704	BRACKET - REAR MUFFLER	LR082704 BRACKET - REAR MUFFLER RH Rear / From: M2000001	$49.19	1
5K291E	LR082707	BRACKET - REAR MUFFLER	LR082707 BRACKET - REAR MUFFLER LH Rear / From: M2000001	$49.19	1
9F646	LR139396	ACTUATOR - ELECTRONIC EXHAUST VALVE	LR139396 ACTUATOR - ELECTRONIC EXHAUST VALVE From: M2000001	$231.19	1
14A705	LR143220	BRACKET - WIRING	LR143220 BRACKET - WIRING Actuator / From: M2000001	$12.06	1
5230	LR143216	MUFFLER - CENTRE	LR143216 MUFFLER - CENTRE From: M2000001	$1,509.13	1

Rear Exhaust System (Nitra Plant Build) (3.0L Aj20P6 Petrol High) ((V) Fromm2000001)

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6]

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Rear Exhaust System (Nitra Plant Build) (3.0L AJ20P6 Petrol High) ((V) FROMM2000001)
