Name: Cooling System Pipes And Hoses (Nitra Plant Build) (3.0L AJ20P6 Petrol High) ((V) FROMM2000001)
Rating: 4.2 (1 reviews)

Cooling System Pipes And Hoses (Nitra Plant Build) (3.0L AJ20P6 Petrol High) ((V) FROMM2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Cooling System Pipes And Hoses (Nitra Plant Build) (3.0L AJ20P6 Petrol High) ((V) FROMM2000001)

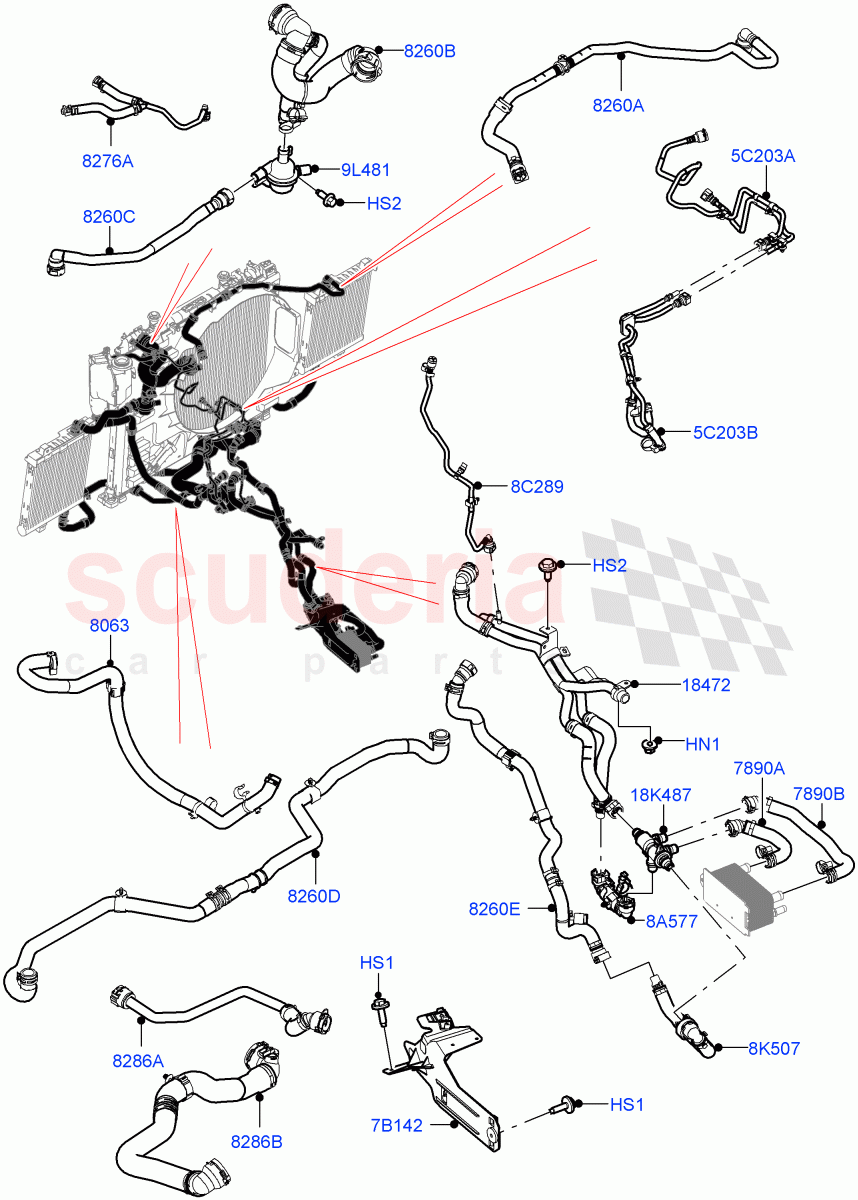

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FX106046	NUT - FLANGED	$0.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR066438	SCREW	$3.06	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500160	SCREW	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123076	HOSE - WATER	$121.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140702	TUBE - HEATER WATER	$241.21	To Order
	LR155132	TUBE - HEATER WATER	$245.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR144619	HOSE - OIL COOLER	$100.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123724	HOSE - OIL COOLER	$100.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129573	BRACKET - OIL COOLER	$29.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123062	HOSE - RADIATOR	$53.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137873	HOSE - RADIATOR	$180.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123063	HOSE - WATER	$53.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123061	HOSE - WATER	$56.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123077	HOSE - COOLING SYSTEM	$109.81	To Order

Photo	Part No	Description	Price (each)	Stock
	104123735	HOSE - COOLANT BLEED	$107.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139058	HOSE - RADIATOR	$52.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139054	HOSE - RADIATOR	$159.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133667	HOSE - COOLING SYSTEM	$133.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123064	HOSE - RADIATOR	$71.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123725	HOSE	$74.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123060	SEPARATOR - COOLANT DEGAS	$114.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129397	VALVE - COOLANT FLOW CONTROL	$137.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137425	HOSE - WATER	$59.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123079	HOSE - WATER	$142.82	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	FX106046	NUT - FLANGED IN STOCK	FX106046 NUT - FLANGED Hexagonal Head, M6 / From: M2000001 IN STOCK	$0.60	1
HS1	LR066438	SCREW	LR066438 SCREW Bracket, Hexagonal Head, M6 X 20MM / From: M2000001	$3.06	2
HS2	RYG500160	SCREW	RYG500160 SCREW Hexagonal Head, M6 X 14MM / From: M2000001	$0.63	2
5C203A	LR137425	HOSE - WATER	LR137425 HOSE - WATER RH, Engine Control Module (ECM) / From: M2000001	$59.73	1
5C203B	LR123079	HOSE - WATER	LR123079 HOSE - WATER RH, Engine Control Module (ECM) / From: M2000001	$142.82	1
7B142	LR129573	BRACKET - OIL COOLER	LR129573 BRACKET - OIL COOLER From: M2000001	$29.50	1
8A577	LR133667	HOSE - COOLING SYSTEM	LR133667 HOSE - COOLING SYSTEM Inlet Pipe, Valve To Low Temperature Radiator / From: M2000001	$133.27	1
8C289	LR123064	HOSE - RADIATOR	LR123064 HOSE - RADIATOR Engine Ventilation / From: M2000001	$71.78	1
8K507	LR123725	HOSE	LR123725 HOSE Lower, To Cylinder Head / From: M2000001	$74.33	1
9L481	LR123060	SEPARATOR - COOLANT DEGAS	LR123060 SEPARATOR - COOLANT DEGAS From: M2000001	$114.45	1
18K487	LR129397	VALVE - COOLANT FLOW CONTROL	LR129397 VALVE - COOLANT FLOW CONTROL 5 Way / From: M2000001	$137.41	1
7890A	LR144619	HOSE - OIL COOLER	LR144619 HOSE - OIL COOLER Inlet Pipe / From: M2000001	$100.81	1
7890B	LR123724	HOSE - OIL COOLER	LR123724 HOSE - OIL COOLER Outlet pipe / From: M2000001	$100.81	1
8063	LR123076	HOSE - WATER	LR123076 HOSE - WATER From Engine To Expansion Tank / From: M2000001	$121.61	1
8260A	LR123062	HOSE - RADIATOR	LR123062 HOSE - RADIATOR Auxiliary Radiator, Inlet / From: M2000001	$53.29	1
8260B	LR137873	HOSE - RADIATOR	LR137873 HOSE - RADIATOR Radiator, Top / From: M2000001	$180.22	1
8260C	LR123063	HOSE - WATER	LR123063 HOSE - WATER Auxiliary Radiator, Outlet / From: M2000001	$53.22	1
8260D	LR123061	HOSE - WATER	LR123061 HOSE - WATER Auxiliary Radiator, Bottom / From: M2000001	$56.09	1
8260E	LR123077	HOSE - COOLING SYSTEM	LR123077 HOSE - COOLING SYSTEM To Cylinder Head, Upper / From: M2000001	$109.81	1
8276A	104123735	HOSE - COOLANT BLEED	104123735 HOSE - COOLANT BLEED From Engine To Expansion Tank, Radiator To Expansion Tank Bleed / From: M2000001	$107.28	1
8286A	LR139058	HOSE - RADIATOR	LR139058 HOSE - RADIATOR LH, Attaches To Bottom Of Radiator / From: M2000001	$52.03	1
8286B	LR139054	HOSE - RADIATOR	LR139054 HOSE - RADIATOR RH, Attaches To Bottom Of Radiator / From: M2000001	$159.25	1
18472	LR140702	TUBE - HEATER WATER	LR140702 TUBE - HEATER WATER 5 Way / From: M2000001 / To: M2453895	$241.21	1
18472	LR155132	TUBE - HEATER WATER	LR155132 TUBE - HEATER WATER 5 Way / From: M2453896	$245.18	1

Cooling System Pipes And Hoses (Nitra Plant Build) (3.0L Aj20P6 Petrol High) ((V) Fromm2000001)

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6]

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Cooling System Pipes And Hoses (Nitra Plant Build) (3.0L AJ20P6 Petrol High) ((V) FROMM2000001)
