Name: Intercooler/Air Ducts And Hoses (Nitra Plant Build) (3.0L AJ20P6 Petrol High) ((V) FROMM2000001)
Rating: 5.0 (1 reviews)

View All

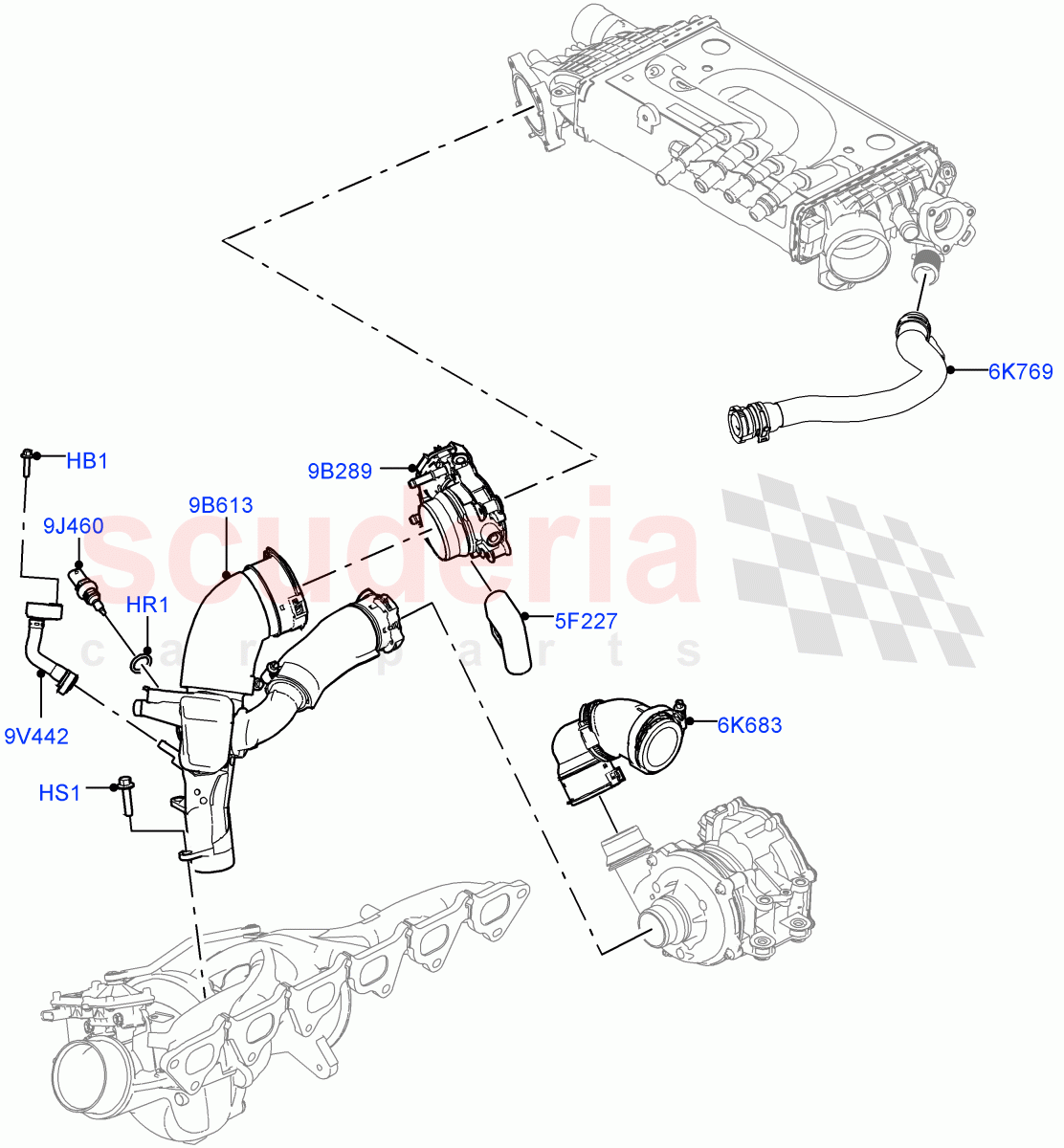

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR121117	BOLT	$1.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095785	O-RING	$5.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	$1.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123928	HEAT SHIELD - CONNECTOR	$37.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122696	HOSE - COMPRESSED AIR	$152.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR148286	HOSE - AIR	$105.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121780	VALVE - NON RETURN	$377.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122695	HOSE - INTERCOOLER	$250.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075629	SENSOR - TEMPERATURE	$48.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132638	SENSOR - AIR CHARGE	$42.20	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR121117	BOLT	LR121117 BOLT M6 X 25MM / From: M2000001	$1.24	1
HR1	LR095785	O-RING IN STOCK	LR095785 O-RING 11.3 x 2.5MM, Sensor / From: M2000001 IN STOCK	$5.12	1
HS1	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM / From: M2000001	$1.34	2
5F227	LR123928	HEAT SHIELD - CONNECTOR	LR123928 HEAT SHIELD - CONNECTOR Flexible / From: M2000001	$37.62	1
6K683	LR122696	HOSE - COMPRESSED AIR	LR122696 HOSE - COMPRESSED AIR Turbocharger / From: M2000001	$152.76	1
6K769	LR148286	HOSE - AIR	LR148286 HOSE - AIR Electronic Compressor Bypass Valve / From: M2000001	$105.21	1
9B289	LR121780	VALVE - NON RETURN	LR121780 VALVE - NON RETURN From: M2000001	$377.94	1
9B613	LR122695	HOSE - INTERCOOLER	LR122695 HOSE - INTERCOOLER Turbocharger Outlet / From: M2000001	$250.69	1
9J460	LR075629	SENSOR - TEMPERATURE	LR075629 SENSOR - TEMPERATURE Temperature / From: M2000001	$48.09	1
9V442	LR132638	SENSOR - AIR CHARGE	LR132638 SENSOR - AIR CHARGE From: M2000001	$42.20	1

Intercooler/Air Ducts And Hoses (Nitra Plant Build) (3.0L Aj20P6 Petrol High) ((V) Fromm2000001)

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6]
