Cylinder Block And Plugs (Nitra Plant Build) (3.0L Aj20P6 Petrol High) ((V) Froml2000001)

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Cylinder Block And Plugs (Nitra Plant Build) (3.0L AJ20P6 Petrol High) ((V) FROML2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR125667 CLIP - TRIM $1.68 To Order
Photo Part No Description Price (each) Stock
LR073637 DOWEL - PIN $2.48 To Order
Photo Part No Description Price (each) Stock
LR163109 PLUG - ENGINE $6.88 To Order
Photo Part No Description Price (each) Stock
LR163197 PLUG - ENGINE $10.60 To Order
Photo Part No Description Price (each) Stock
LR163194 PLUG - ENGINE $11.28 To Order
Photo Part No Description Price (each) Stock
LR095786 O-RING $4.68 IN STOCK
Photo Part No Description Price (each) Stock
LR170968 O-RING $4.56 IN STOCK
Photo Part No Description Price (each) Stock
LR073666 SCREW $1.43 To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.60 IN STOCK
Photo Part No Description Price (each) Stock
LR073649 SCREW $2.52 To Order
Photo Part No Description Price (each) Stock
LR126158 SCREW $4.85 To Order
Photo Part No Description Price (each) Stock
LR128484 STUD $1.84 To Order
Photo Part No Description Price (each) Stock
LR163208 WASHER - SEALING $3.51 To Order
Photo Part No Description Price (each) Stock
LR138831 COVER - CYLINDER FRONT $124.71 To Order
Photo Part No Description Price (each) Stock
LR135718 SWITCH - OIL PRESSURE $61.10 To Order
Photo Part No Description Price (each) Stock
LR073684 VALVE - PISTON OIL COOLNG $198.75 IN STOCK
Photo Part No Description Price (each) Stock
LR115083 SENSOR - CYLINDER HEAD TEMPERATURE $49.98 To Order
LR155114 SENSOR - CYLINDER HEAD TEMPERATURE $63.32 To Order
Photo Part No Description Price (each) Stock
LR121757 SEAL - CRANKSHAFT OIL - FRONT $67.95 To Order
Photo Part No Description Price (each) Stock
LR121240 PLUG - INSPECTION OPENING $42.50 To Order
Photo Part No Description Price (each) Stock
LR121831 TUBE $20.58 To Order
Photo Part No Description Price (each) Stock
LR155117 SENSOR - ENGINE KNOCK $142.26 To Order
LR155117 SENSOR - ENGINE KNOCK $142.26 To Order
Photo Part No Description Price (each) Stock
LR123367 CLIP - WIRING $1.96 To Order
Photo Part No Description Price (each) Stock
LR121743 BRACKET - WIRING $9.62 To Order
Photo Part No Description Price (each) Stock
LR121354 TUBE - VACUUM $53.33 To Order
Photo Part No Description Price (each) Stock
LR057802 DOWEL - PIN $3.52 IN STOCK
Photo Part No Description Price (each) Stock
LR121754 INSULATOR - ENGINE COMPARTMENT $72.85 To Order
Photo Part No Description Price (each) Stock
LR121235 INSULATOR - ENGINE COMPARTMENT $98.93 To Order
Photo Part No Description Price (each) Stock
LR121239 INSULATOR PAD - CYLINDER BLOCK $119.66 To Order
Photo Part No Description Price (each) Stock
LR121237 INSULATOR PAD - CYLINDER BLOCK $69.95 To Order
View All

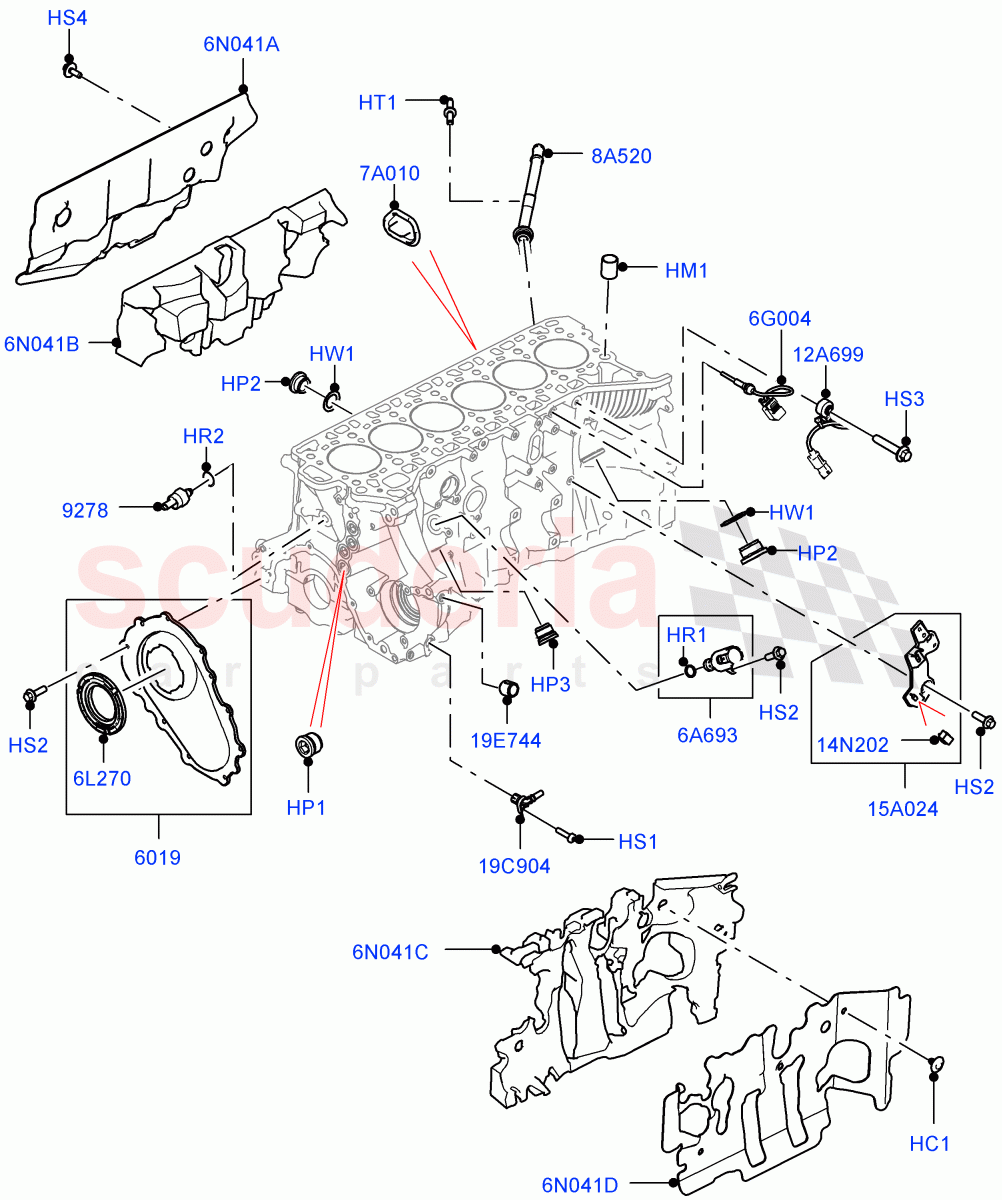

Cylinder Block And Plugs (Nitra Plant Build) (3.0L AJ20P6 Petrol High) ((V) FROML2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR125667
CLIP - TRIM
5.8 X 4.5-8, Insulator / From: M2000001 		$1.68 2
HM1 LR073637
DOWEL - PIN
16.5 x 20, Pin - Dowell / From: M2000001 		$2.48 2
HP1 LR163109
PLUG - ENGINE
M22x1.5 x 13 mm / From: M2000001 		$6.88 4
HP2 LR163197
PLUG - ENGINE
M30 x 12 mm / From: M2000001 		$10.60 2
HP3 LR163194
PLUG - ENGINE
LH Side, M14 x 9 mm / From: M2000001 		$11.28 1
HR1 LR095786
O-RING
15.3MM, Valve - piston oil cooling / From: M2000001
IN STOCK 		$4.68 1
HR2 LR170968
O-RING
Sensor - Oil Pressure / From: M2000001
IN STOCK 		$4.56 1
HS1 LR073666
SCREW
M5 x 20MM, Vacuum Connector / From: M2000001 		$1.43 1
HS2 LR073655
SCREW
Hexagonal Head, M6 X 20MM / From: M2000001
IN STOCK 		$1.60 13
HS3 LR073649
SCREW
Anti-Knock Sensor, M8 x 40MM / From: M2000001 		$2.52 3
HS4 LR126158
SCREW
M8 X 25MM / From: M2000001 		$4.85 2
HT1 LR128484
STUD
M6 x 20 + M6 x 20 / From: M2000001 		$1.84 1
HW1 LR163208
WASHER - SEALING
33 x 39.13 x 3.7 / From: M2000001 		$3.51 2
6A693 LR073684
VALVE - PISTON OIL COOLNG
From: M2000001
IN STOCK 		$198.75 1
6G004 LR115083
SENSOR - CYLINDER HEAD TEMPERATURE
Temperature / From: M2000001 / To: M2448275 		$49.98 1
6G004 LR155114
SENSOR - CYLINDER HEAD TEMPERATURE
Temperature / From: M2448276 		$63.32 1
6L270 LR121757
SEAL - CRANKSHAFT OIL - FRONT
From: M2000001 		$67.95 1
6N041A LR121754
INSULATOR - ENGINE COMPARTMENT
RH - Outer / From: M2000001 		$72.85 1
6N041B LR121235
INSULATOR - ENGINE COMPARTMENT
RH - Inner / From: M2000001 		$98.93 1
6N041C LR121239
INSULATOR PAD - CYLINDER BLOCK
LH - Inner / From: M2000001 		$119.66 1
6N041D LR121237
INSULATOR PAD - CYLINDER BLOCK
LH - Outer / From: M2000001 		$69.95 1
7A010 LR121240
PLUG - INSPECTION OPENING
Plug; Converter Inspection Hole In Block / From: M2000001 		$42.50 1
8A520 LR121831
TUBE
Electric Pump Coolant Inlet / From: M2000001 		$20.58 1
12A699 LR155117
SENSOR - ENGINE KNOCK
From: M2000001 / To: M2448275 		$142.26 3
12A699 LR155117
SENSOR - ENGINE KNOCK
From: M2448276 		$142.26 3
14N202 LR123367
CLIP - WIRING
Anti-Knock Sensor / From: M2000001 		$1.96 3
15A024 LR121743
BRACKET - WIRING
Anti-Knock Sensor / From: M2000001 		$9.62 1
19C904 LR121354
TUBE - VACUUM
From: M2000001 		$53.33 1
19E744 LR057802
DOWEL - PIN
Air Conditioning Compressor Bracket,
IN STOCK 		$3.52 2
6019 LR138831
COVER - CYLINDER FRONT
Engine Front, Includes Seal / From: M2000001 		$124.71 1
9278 LR135718
SWITCH - OIL PRESSURE
Sensor / From: M2000001 		$61.10 1
