Name: Rear Seat Base (Solihull Plant Build, Row 3) (Version - Core, With 7 Seat Configuration) ((V) FROMHA000001)
Rating: 5.0 (1 reviews)

Rear Seat Base (Solihull Plant Build, Row 3) (Version - Core, With 7 Seat Configuration) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Rear Seat Base (Solihull Plant Build, Row 3) (Version - Core, With 7 Seat Configuration) ((V)...

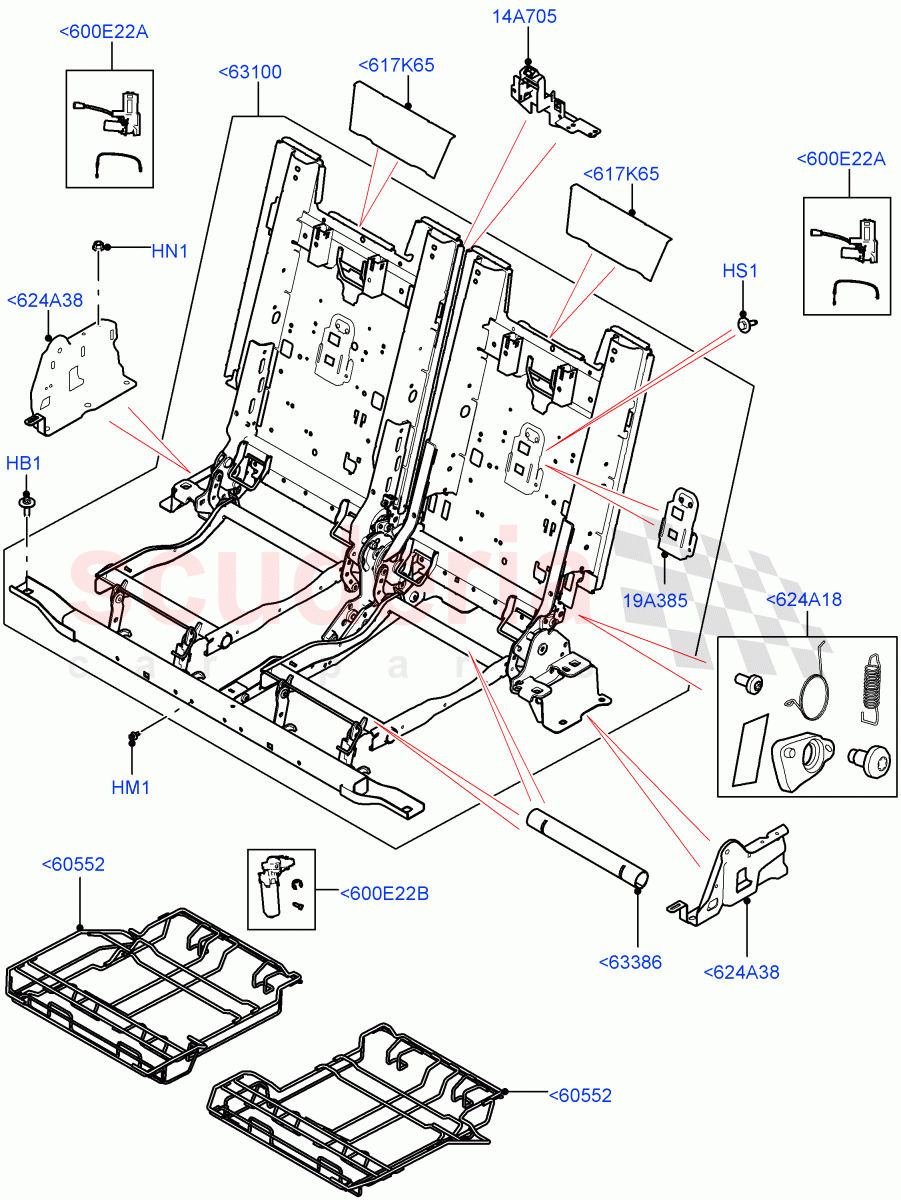

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR083355	BOLT AND WASHER - HEX.HEAD	$2.29	To Order
	LR095024	BOLT AND WASHER - HEX.HEAD	$2.44	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500040	FASTENER	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FN110046	NUT - HEX.	$0.69	To Order

Photo	Part No	Description	Price (each)	Stock
	HYP500080	SCREW	$1.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR080997	SUPPORT - REAR SEAT CUSHION	$637.33	To Order
	LR081000	SUPPORT - REAR SEAT CUSHION	$571.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR080995	FRAME - REAR SEAT BACK RETAINING	$1,964.11	To Order
	LR080996	FRAME - REAR SEAT BACK RETAINING	$1,854.46	To Order
	LR110338	FRAME - REAR SEAT BACK RETAINING	$1,888.14	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR117697	COVER - PROTECTIVE	$19.50	To Order
	LR117696	COVER - PROTECTIVE	$19.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR080815	BRACKET - SEAT CUSHION	$41.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093887	JUNCTION BOX	$77.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR080953	FINISHER - SEAT BACKBOARD	$44.86	To Order
	LR080954	FINISHER - SEAT BACKBOARD	$41.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123774	KIT - LATCH	$46.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR080993	BRACKET - SEAT MOUNTING	$274.97	To Order
	LR080994	BRACKET - SEAT MOUNTING	$274.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159407	KIT - SEAT MOTOR	$276.18	To Order
	LR159408	KIT - SEAT MOTOR	$253.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159409	KIT - SEAT MOTOR	$272.78	To Order
	LR159410	KIT - SEAT MOTOR	$272.78	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<600E22A	LR159407	KIT - SEAT MOTOR	LR159407 KIT - SEAT MOTOR RH, Actuator, For Seat Back	$276.18	1
<600E22A	LR159408	KIT - SEAT MOTOR	LR159408 KIT - SEAT MOTOR LH, Actuator, For Seat Back	$253.85	1
<600E22B	LR159409	KIT - SEAT MOTOR	LR159409 KIT - SEAT MOTOR RH, For Seat Cushion, Seat Folding	$272.78	1
<600E22B	LR159410	KIT - SEAT MOTOR	LR159410 KIT - SEAT MOTOR LH, For Seat Cushion, Seat Folding	$272.78	1
<617K65	LR080953	FINISHER - SEAT BACKBOARD	LR080953 FINISHER - SEAT BACKBOARD Interior Espresso Carpet	$44.86	2
<617K65	LR080954	FINISHER - SEAT BACKBOARD	LR080954 FINISHER - SEAT BACKBOARD Int Ebony Carpet	$41.10	2
<624A18	LR123774	KIT - LATCH	LR123774 KIT - LATCH With Third Row Power Folding Seat / Repair Kit	$46.93	1
<624A38	LR080993	BRACKET - SEAT MOUNTING	LR080993 BRACKET - SEAT MOUNTING RH	$274.97	1
<624A38	LR080994	BRACKET - SEAT MOUNTING	LR080994 BRACKET - SEAT MOUNTING LH	$274.97	1
<60552	LR080997	SUPPORT - REAR SEAT CUSHION	LR080997 SUPPORT - REAR SEAT CUSHION RH	$637.33	1
<60552	LR081000	SUPPORT - REAR SEAT CUSHION	LR081000 SUPPORT - REAR SEAT CUSHION LH	$571.01	1
<63100	LR080995	FRAME - REAR SEAT BACK RETAINING	LR080995 FRAME - REAR SEAT BACK RETAINING With 3rd Row Double Seat / Frame Assy / To: HA999999	$1,964.11	1
<63100	LR080996	FRAME - REAR SEAT BACK RETAINING	LR080996 FRAME - REAR SEAT BACK RETAINING With Third Row Power Folding Seat / Frame Assy / To: HA999999	$1,854.46	1
<63100	LR110338	FRAME - REAR SEAT BACK RETAINING	LR110338 FRAME - REAR SEAT BACK RETAINING With 3rd Row Double Seat / Frame Assy / From: JA000001	$1,888.14	1
<63100	LR110339	FRAME - REAR SEAT BACK RETAINING	LR110339 FRAME - REAR SEAT BACK RETAINING With Third Row Power Folding Seat / Frame Assy / From: JA000001	$2,077.41	1
<63386	LR117697	COVER - PROTECTIVE	LR117697 COVER - PROTECTIVE Front / From: JA000001	$19.50	2
<63386	LR117696	COVER - PROTECTIVE	LR117696 COVER - PROTECTIVE Rear / From: JA000001	$19.50	2
HB1	LR083355	BOLT AND WASHER - HEX.HEAD	LR083355 BOLT AND WASHER - HEX.HEAD M10 X 30MM / To: HA030694	$2.29	10
HB1	LR095024	BOLT AND WASHER - HEX.HEAD	LR095024 BOLT AND WASHER - HEX.HEAD M10 X 30MM / From: HA030695	$2.44	10
HM1	RYQ500040	FASTENER IN STOCK	RYQ500040 FASTENER 6.25 x 1.6/6MM IN STOCK	$0.61	2
HN1	FN110046	NUT - HEX.	FN110046 NUT - HEX. M10	$0.69	6
HS1	HYP500080	SCREW	HYP500080 SCREW Torx	$1.79	4
14A705	LR080815	BRACKET - SEAT CUSHION	LR080815 BRACKET - SEAT CUSHION	$41.26	1
19A385	LR093887	JUNCTION BOX	LR093887 JUNCTION BOX With 3rd Row Double Seat, With 7 Seat Configuration / Cointains Seat Release Strap	$77.52	1

Rear Seat Base (Solihull Plant Build, Row 3) (Version - Core, With 7 Seat Configuration) ((V)...

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Rear Seat Base (Solihull Plant Build, Row 3) (Version - Core, With 7 Seat Configuration) ((V)...
