Instrument Panel (Internal Components, Nitra Plant Build) ((V) Fromk2000001)

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Instrument Panel (Internal Components, Nitra Plant Build) ((V) FROMK2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR111110 BOLT $1.85 To Order
LR111110 BOLT $1.85 To Order
LR111110 BOLT $1.85 To Order
Photo Part No Description Price (each) Stock
LR118182 SCREW AND WASHER $3.32 To Order
Photo Part No Description Price (each) Stock
LR109936 CLIP $2.03 To Order
LR109936 CLIP $2.03 To Order
Photo Part No Description Price (each) Stock
DBP6286 Hardware - Miscellaneous Enquire To Order
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. $3.13 IN STOCK
Photo Part No Description Price (each) Stock
LR036724 NUT - SPRING $3.50 To Order
Photo Part No Description Price (each) Stock

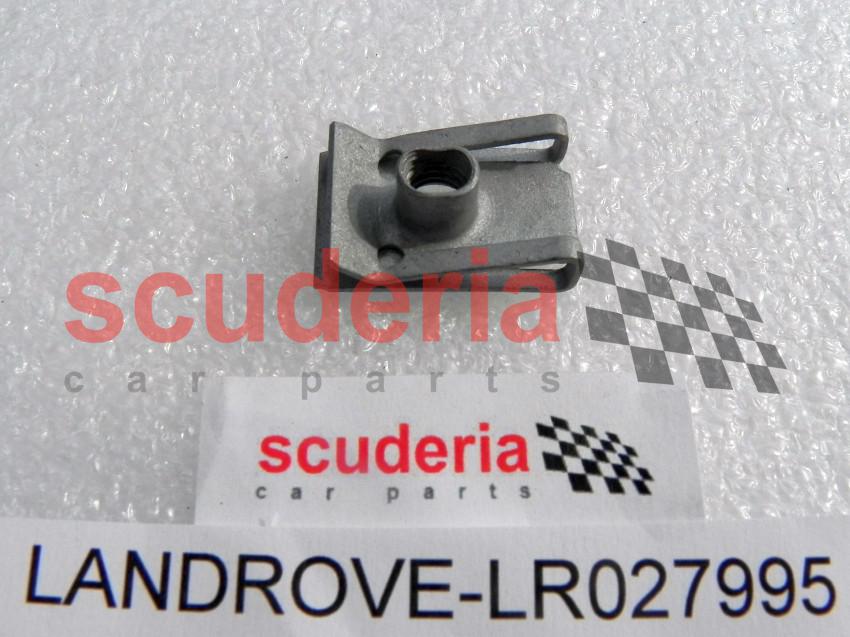

LR027995 NUT $1.02 IN STOCK
Photo Part No Description Price (each) Stock
AYP500031 SCREW $1.60 To Order
Photo Part No Description Price (each) Stock
LR036723 SCREW - OVAL HEAD $2.59 To Order
LR036723 SCREW - OVAL HEAD $2.59 To Order
Photo Part No Description Price (each) Stock
LR036722 SCREW - FLAT ROUND HEAD $5.15 To Order
Photo Part No Description Price (each) Stock

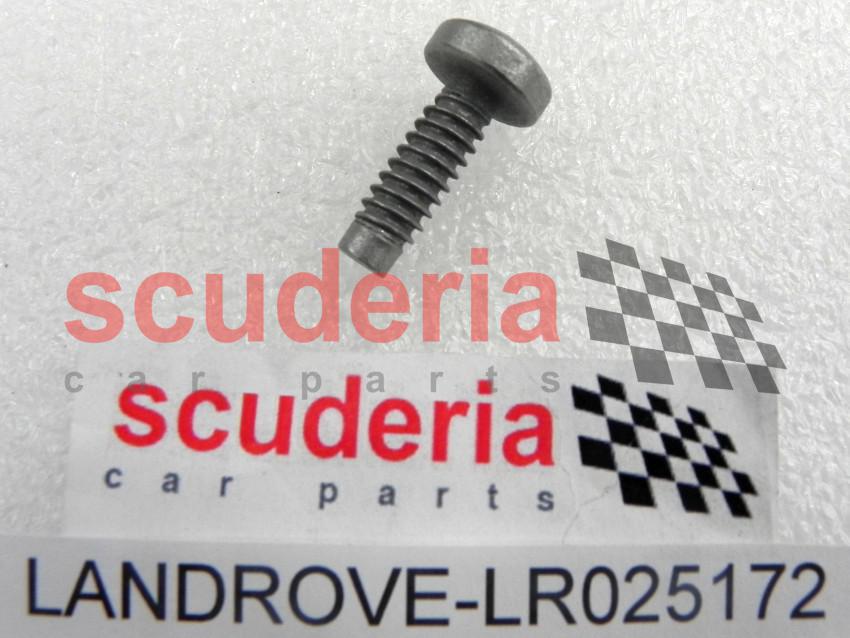

LR025172 SCREW $1.25 IN STOCK
Photo Part No Description Price (each) Stock
LR007312 SCREW 4.2 X 19 $0.77 IN STOCK
Photo Part No Description Price (each) Stock
LR132558 SCREW $0.86 To Order
Photo Part No Description Price (each) Stock
LR142526 MOULDING - INSTRUMENT PANEL $62.95 To Order
LR142527 MOULDING - INSTRUMENT PANEL $59.64 To Order
Photo Part No Description Price (each) Stock
LR036717 BRACKET - ENERGY ABSORBER $49.73 To Order
Photo Part No Description Price (each) Stock
LR109131 MOULDING - INSTRUMENT PANEL $173.22 To Order
LR129160 MOULDING - INSTRUMENT PANEL $181.49 To Order
LR142494 MOULDING - INSTRUMENT PANEL $140.02 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR081202 MOULDING - INSTRUMENT PANEL $142.53 To Order
LR081202 MOULDING - INSTRUMENT PANEL $142.53 To Order
LR133557 MOULDING - INSTRUMENT PANEL $261.51 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR117225 REINFORCEMENT - INSTRUMENT PANEL $554.03 To Order
LR117224 REINFORCEMENT - INSTRUMENT PANEL $554.03 To Order
Photo Part No Description Price (each) Stock
LR036716 BRACKET - INSTRUMENT PANEL $25.66 To Order
Photo Part No Description Price (each) Stock
LR142528 BRACKET - INSTRUMENT PANEL $106.55 To Order
View All
Instrument Panel (Internal Components, Nitra Plant Build) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<017B44 LR036717
BRACKET - ENERGY ABSORBER
(+)"CDN/MEX/USA" / From: K2000001 		$49.73 2
<018B68A LR036716
BRACKET - INSTRUMENT PANEL
Lower / From: K2000001 		$25.66 1
<018B68B LR142528
BRACKET - INSTRUMENT PANEL
From: M2000001 		$106.55 1
<060B64 LR117225
REINFORCEMENT - INSTRUMENT PANEL
LHD / From: K2000001 		$554.03 1
<060B64 LR117224
REINFORCEMENT - INSTRUMENT PANEL
RHD / From: K2000001 		$554.03 1
<04269 LR142526
MOULDING - INSTRUMENT PANEL
LHD / From: M2000001 		$62.95 1
<04269 LR142527
MOULDING - INSTRUMENT PANEL
RHD / From: M2000001 		$59.64 1
<04480A LR109131
MOULDING - INSTRUMENT PANEL
Centre Stack Bracket / From: K2000001 / To: K2413054 		$173.22 1
<04480A LR129160
MOULDING - INSTRUMENT PANEL
Centre Stack Bracket / From: K2413055 / To: L2999999 		$181.49 1
<04480A LR142494
MOULDING - INSTRUMENT PANEL
Centre Stack Bracket / From: M2000001 / To: M2446800 		$140.02 1
<04480A LR155959
MOULDING - INSTRUMENT PANEL
Centre Stack Bracket / From: M2446801 / To: N2461766 		$135.53 1
<04480A LR166728
MOULDING - INSTRUMENT PANEL
Centre Stack Bracket / From: N2461767 		$131.49 1
<04480B LR081202
MOULDING - INSTRUMENT PANEL
Hidden Central IP Stowage, With Standard Glove Box / From: K2000001 / To: K2999999 		$142.53 1
<04480B LR081202
MOULDING - INSTRUMENT PANEL
Hidden Central IP Stowage, With DVD Player, With Standard Glove Box / From: L2000001 / To: L2438903 		$142.53 1
<04480B LR133557
MOULDING - INSTRUMENT PANEL
Hidden Central IP Stowage, Less DVD Player, With Standard Glove Box / From: L2000001 / To: L2441516 		$261.51 1
<04480B LR141182
MOULDING - INSTRUMENT PANEL
Hidden Central IP Stowage, Less DVD Player, With Standard Glove Box / From: L2441517 / To: L2999999 		$218.41 1
<04480B LR142493
MOULDING - INSTRUMENT PANEL
From: M2000001 / To: N2464202 		$201.77 1
<04480B LR140657
MOULDING - INSTRUMENT PANEL
Hidden Central IP Stowage, With DVD Player, With Standard Glove Box / From: L2438904 / To: L2999999 		$190.07 1
<04480B LR171953
MOULDING - INSTRUMENT PANEL
From: N2464203 		$204.57 1
HB1 LR111110
BOLT
Hidden Central IP Stowage / M4 x 9MM, Moulding / From: K2000001 / To: L2999999 		$1.85 4
HB1 LR111110
BOLT
M4 x 9MM, Moulding / From: M2000001 		$1.85 4
HB1 LR111110
BOLT
Bracket, M4 x 9MM / From: M2000001 		$1.85 -
HB2 LR118182
SCREW AND WASHER
Frame To Body, M8 x 41.5MM, Rear, RH And LH, Side / From: K2000001 		$3.32 4
HC1 LR109936
CLIP
Hidden Central IP Stowage, With Standard Glove Box / From: K2000001 / To: K2999999 		$2.03 3
HC1 LR109936
CLIP
Hidden Central IP Stowage, With DVD Player, With Standard Glove Box / From: L2000001 / To: L2999999 		$2.03 3
HM1 DBP6286
Hardware - Miscellaneous 		- 4 Enquire
HN1 RYH500310
NUT AND WASHER - HEX.
Bracket, Hexagonal Head, Lower, M6, Nut And Washer / From: K2000001
IN STOCK 		$3.13 2
HN2 LR036724
NUT - SPRING
Attaches Moulding, Centre Stack Bracket, Inner, M4.2 / From: K2000001 		$3.50 1
HN3 LR027995
NUT
Attaches Moulding, Centre Stack Bracket, M6 X 0.7 - 4, Nut "U" Spring, Outer / From: K2000001
IN STOCK 		$1.02 4
HS1 AYP500031
SCREW
Centre, Frame To Body, M8 X 25MM, Rear / From: K2000001 		$1.60 1
HS2 LR036723
SCREW - OVAL HEAD
6 X 1.42 X 16, Rear, Upper / From: K2000001 		$2.59 4
HS2 LR036723
SCREW - OVAL HEAD
6 X 1.42 X 16, Bracket to frame, Lower / From: K2000001 		$2.59 2
HS3 LR036722
SCREW - FLAT ROUND HEAD
Frame To Body, HEX Flange, M8 X 30, Rear, Upper / From: K2000001 		$5.15 2
HS4 LR025172
SCREW
Bracket to frame, Energy Absorber, M6 X 16MM / From: K2000001
IN STOCK 		$1.25 4
HS5 LR007312
SCREW 4.2 X 19
4.2 X 19MM / From: M2000001
IN STOCK 		$0.77 2
HS6 LR132558
SCREW
4 x 10MM, Torx / From: M2000001 		$0.86 4
