Name: Anti-Lock Braking System (ABS Modulator, Solihull Plant Build) ((V) FROMHA000001)
Rating: 4.0 (1 reviews)

View All

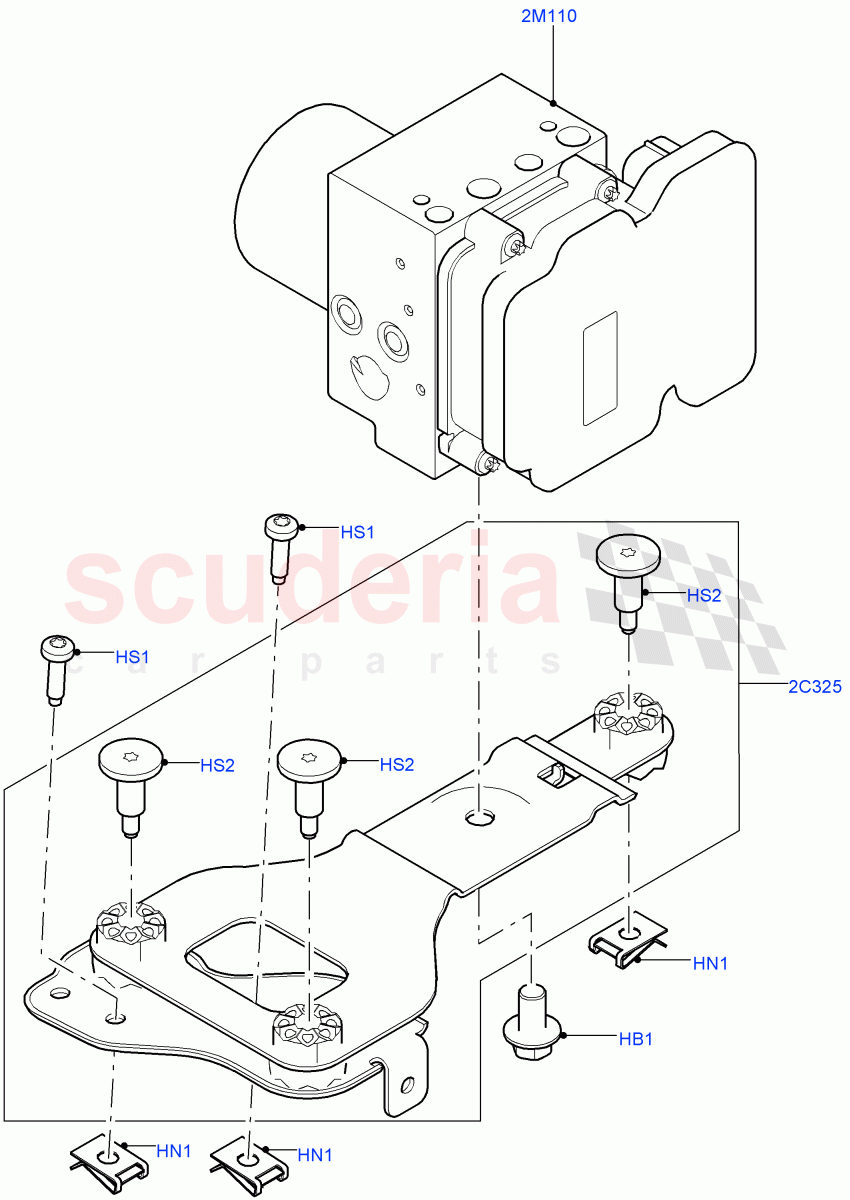

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR033469	BOLT	$1.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027995	NUT	$1.01	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4648959	SCREW	$4.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011889	SCREW	$4.00	To Order

...and 4 more part variants. See table on right for more details.

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR033469	BOLT	LR033469 BOLT Hexagonal Head, M10 X 17	$1.57	1
HN1	LR027995	NUT IN STOCK	LR027995 NUT M6 X 0.7 - 4, Nut "U" Spring IN STOCK	$1.01	3
HS1	4648959	SCREW	4648959 SCREW M6 X 20MM, Torx	$4.25	2
HS2	LR011889	SCREW	LR011889 SCREW M6 x 29MM, Torx	$4.00	3
2C325	LR033467	BRACKET - ABS MODULATOR	LR033467 BRACKET - ABS MODULATOR RHD	$44.62	1
2C325	LR033466	BRACKET - ABS MODULATOR	LR033466 BRACKET - ABS MODULATOR LHD	$46.50	1
2M110	LR084561	MODULATOR - ABS	LR084561 MODULATOR - ABS ABS / To: HA016981	$3,681.18	1
2M110	LR115165	MODULATOR - ABS	LR115165 MODULATOR - ABS ABS / From: JA000001 / To: JA064622	$2,609.70	1
2M110	LR117873	MODULATOR - ABS	LR117873 MODULATOR - ABS ABS / From: KA000001	$2,396.99	1
2M110	LR126763	MODULATOR - ABS	LR126763 MODULATOR - ABS ABS / From: JA064623 / To: JA074622	$2,609.70	1
2M110	LR126764	MODULATOR - ABS	LR126764 MODULATOR - ABS ABS / From: HA022282 / To: HA999999	$3,351.37	1
2M110	LR100363	MODULATOR - ABS	LR100363 MODULATOR - ABS ABS / From: HA016982 / To: HA022281	$3,254.00	1
2M110	LR143166	MODULATOR - ABS	LR143166 MODULATOR - ABS ABS / From: JA074623 / To: JA999999	$2,832.05	1

Anti-Lock Braking System (Abs Modulator, Solihull Plant Build) ((V) Fromha000001)

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]
