Name: Engine Harness (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001)
Rating: 5.0 (1 reviews)

Engine Harness (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Engine Harness (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001)

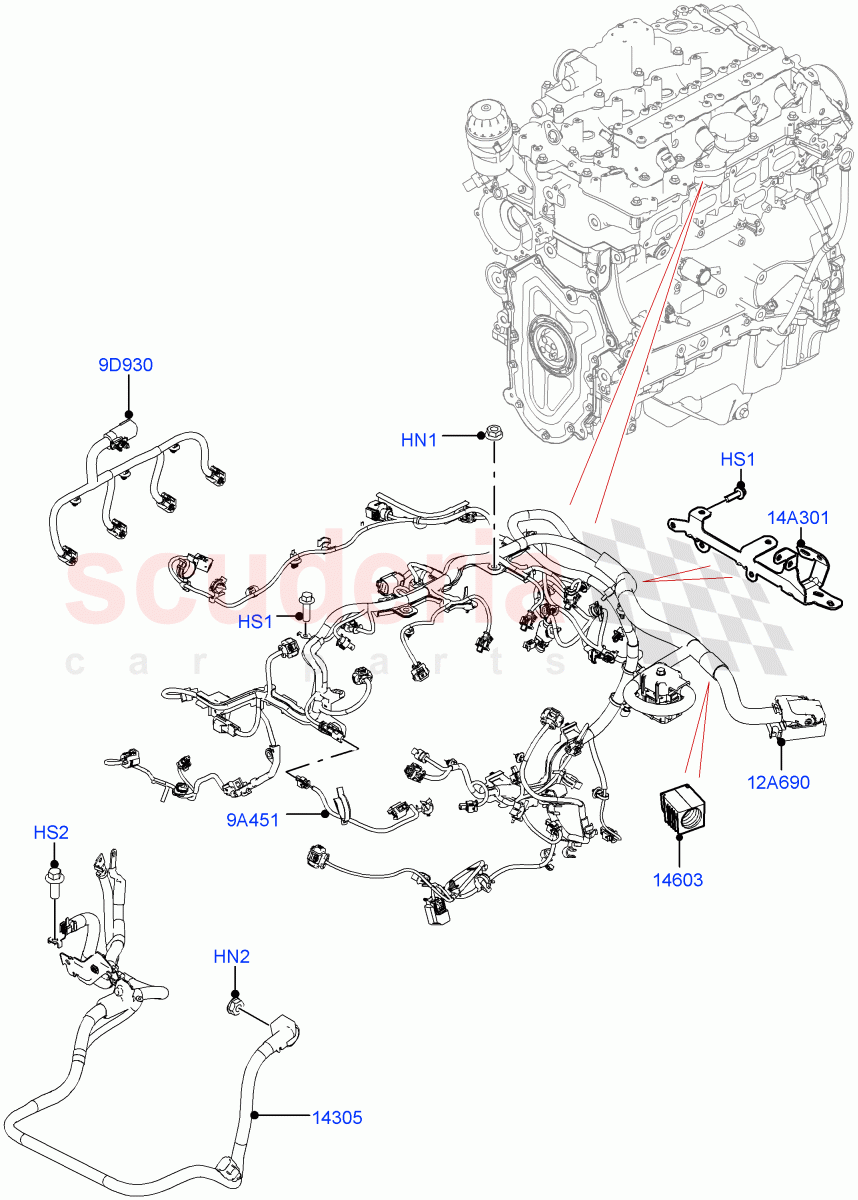

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR087242	NUT - HEX.	$1.47	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500340	NUT AND WASHER - HEX.	$1.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FA108202	SCREW	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR102639	WIRING - ALTERNATOR	$246.74	To Order
	LR120983	WIRE - ALTERNATOR	$241.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141820	PLUG - BLANKING	$5.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093809	WIRING - STARTER MOTOR	$31.88	To Order
	LR113349	WIRING - STARTER MOTOR	$73.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR099966	WIRING - FUEL INJECTORS	$123.51	To Order
	LR116490	WIRING - FUEL INJECTORS	$134.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101431	WIRING - ENGINE	$938.81	To Order
	LR112882	WIRING - ENGINE	$938.81	To Order
	LR116342	WIRING - ENGINE	$938.81	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR138653	BRACKET	$23.50	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	LR087242	NUT - HEX.	LR087242 NUT - HEX. M6 / From: JA000001	$1.47	2
HN2	RYH500340	NUT AND WASHER - HEX.	RYH500340 NUT AND WASHER - HEX. M8, Nut And Washer / From: JA000001	$1.07	1
HS1	LR073655	SCREW IN STOCK	LR073655 SCREW Hexagonal Head, M6 X 20MM / From: JA000001 IN STOCK	$1.60	9
HS2	FA108202	SCREW	FA108202 SCREW Hexagonal Head, M8 X 20MM, Taptite / From: JA000001	$1.36	1
9A451	LR093809	WIRING - STARTER MOTOR	LR093809 WIRING - STARTER MOTOR Alternator / From: JA000001 / To: JA999999	$31.88	1
9A451	LR113349	WIRING - STARTER MOTOR	LR113349 WIRING - STARTER MOTOR Alternator / From: KA000001	$73.62	1
9D930	LR099966	WIRING - FUEL INJECTORS	LR099966 WIRING - FUEL INJECTORS Injector Harness / From: JA000001 / To: JA059933	$123.51	1
9D930	LR116490	WIRING - FUEL INJECTORS	LR116490 WIRING - FUEL INJECTORS Injector Harness / From: JA059934	$134.29	1
12A690	LR101431	WIRING - ENGINE	LR101431 WIRING - ENGINE Engine / From: JA000001 / To: JA057901	$938.81	1
12A690	LR112882	WIRING - ENGINE	LR112882 WIRING - ENGINE Engine / From: JA057902 / To: JA999999	$938.81	1
12A690	LR116342	WIRING - ENGINE	LR116342 WIRING - ENGINE Engine / From: KA000001 / To: KA093826	$938.81	1
12A690	LR125828	WIRING - ENGINE	LR125828 WIRING - ENGINE Engine / From: KA093827	$1,711.99	1
14A301	LR138653	BRACKET	LR138653 BRACKET Engine Rear / From: JA000001	$23.50	1
14305	LR102639	WIRING - ALTERNATOR	LR102639 WIRING - ALTERNATOR From: JA000001 / To: JA999999	$246.74	1
14305	LR120983	WIRE - ALTERNATOR	LR120983 WIRE - ALTERNATOR From: KA000001	$241.00	1
14603	LR141820	PLUG - BLANKING	LR141820 PLUG - BLANKING Engine Harness / From: JA000001	$5.42	1
