Front Knuckle And Hub (Nitra Plant Build) ((V) Fromk2000001, (V) Tol2999999)

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Front Knuckle And Hub (Nitra Plant Build) ((V) FROMK2000001, (V) TOL2999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
KYG000230 BOLT $3.22 IN STOCK
Photo Part No Description Price (each) Stock
RUE000010 CIRCLIP $8.35 To Order
Photo Part No Description Price (each) Stock
FY110056 NUT $4.25 IN STOCK
Photo Part No Description Price (each) Stock
LR024151 NUT AND WASHER - HEX. $10.17 IN STOCK
Photo Part No Description Price (each) Stock
LR043873 SCREW - PAN - TORX $1.10 IN STOCK
Photo Part No Description Price (each) Stock
LR081538 HUB - WHEEL $219.55 To Order
Photo Part No Description Price (each) Stock
LR077894 BEARING - WHEEL HUB $147.42 To Order
LR122585 BEARING - WHEEL HUB $119.75 IN STOCK
Photo Part No Description Price (each) Stock
LR115104 KNUCKLE - FRONT WHEEL $1,052.98 To Order
LR155538 KNUCKLE - FRONT WHEEL $999.36 To Order
LR115101 KNUCKLE - FRONT WHEEL $892.25 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR048131 DUCT - BRAKE DISC COOLING $18.79 To Order
LR048132 DUCT - BRAKE DISC COOLING $42.81 To Order
Photo Part No Description Price (each) Stock
LR118247 DUCT - BRAKE CALIPER COOLING $119.75 To Order
LR118248 DUCT - BRAKE CALIPER COOLING $30.17 To Order
View All

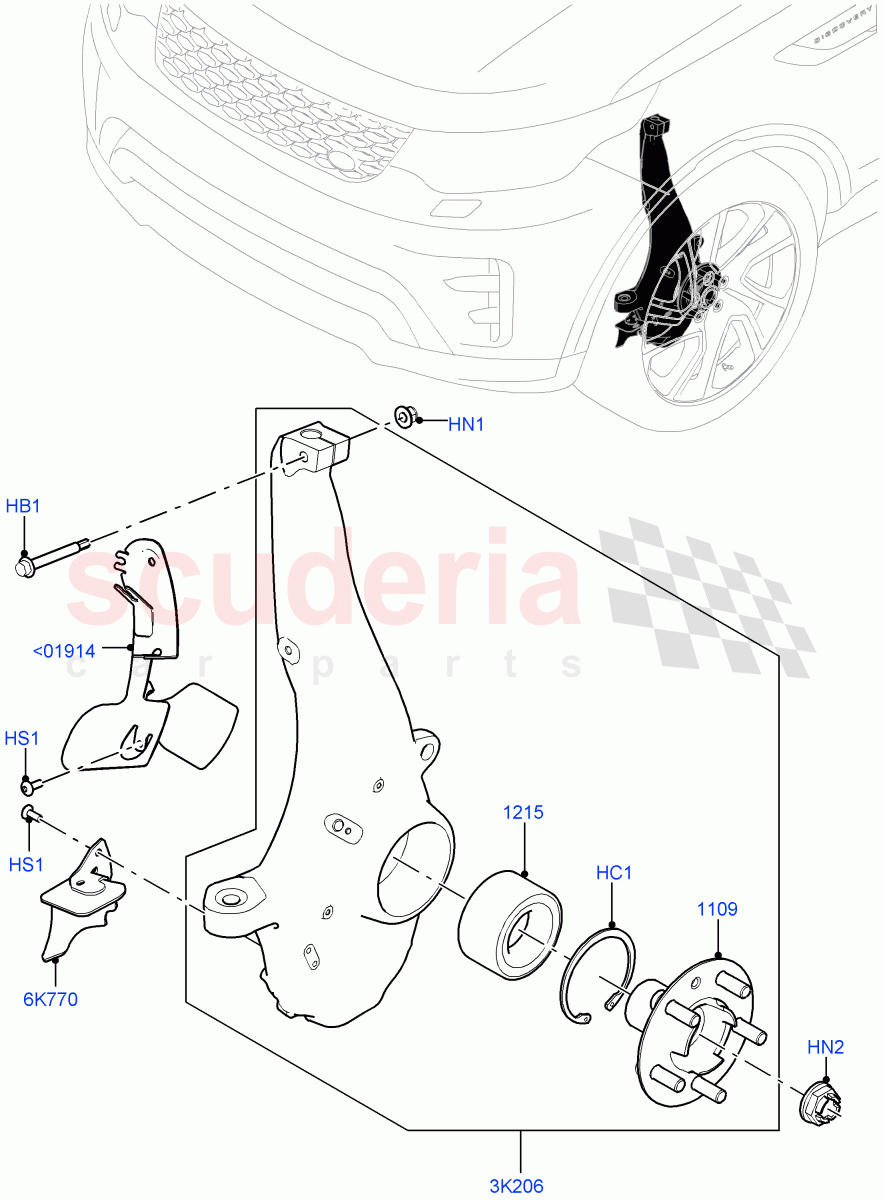

Front Knuckle And Hub (Nitra Plant Build) ((V) FROMK2000001, (V) TOL2999999) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<01914 LR118247
DUCT - BRAKE CALIPER COOLING
RH / From: K2000001 		$119.75 1
<01914 LR118248
DUCT - BRAKE CALIPER COOLING
LH / From: K2000001 		$30.17 1
HB1 KYG000230
BOLT
Hexagonal Head, M10 x 70MM / From: K2000001
IN STOCK 		$3.22 2
HC1 RUE000010
CIRCLIP 		$8.35 2
HN1 FY110056
NUT
M10 / From: K2000001
IN STOCK 		$4.25 2
HN2 LR024151
NUT AND WASHER - HEX.
M24X2.0, RH/LH / From: K2000001
IN STOCK 		$10.17 2
HS1 LR043873
SCREW - PAN - TORX
M6 X 16MM, Torx / From: K2000001
IN STOCK 		$1.10 4
3K206 LR115104
KNUCKLE - FRONT WHEEL
Less Adaptive Damping / RH / From: K2000001 / To: L2434338 		$1,052.98 1
3K206 LR155538
KNUCKLE - FRONT WHEEL
Less Adaptive Damping / LH / From: K2000001 / To: L2434338 		$999.36 1
3K206 LR115101
KNUCKLE - FRONT WHEEL
With Continuous Variable Damping / RH / From: K2000001 / To: L2434338 		$892.25 1
3K206 LR115105
KNUCKLE - FRONT WHEEL
With Continuous Variable Damping / LH / From: K2000001 / To: L2434338 		$892.25 1
3K206 LR134930
KNUCKLE - FRONT WHEEL
Less Adaptive Damping / RH / From: L2434339 / To: L2445339 		$1,032.33 1
3K206 LR134931
KNUCKLE - FRONT WHEEL
Less Adaptive Damping / LH / From: L2434339 / To: L2445339 		$1,032.33 1
3K206 LR134929
KNUCKLE - FRONT WHEEL
With Continuous Variable Damping / LH / From: L2434339 / To: L2445339 		$892.25 1
3K206 LR134928
KNUCKLE - FRONT WHEEL
With Continuous Variable Damping / RH / From: L2434339 / To: L2445339 		$892.25 1
3K206 LR155539
KNUCKLE - FRONT WHEEL
Less Adaptive Damping / RH / From: L2445340 		$999.36 1
3K206 LR155538
KNUCKLE - FRONT WHEEL
Less Adaptive Damping / LH / From: L2445340 		$999.36 1
3K206 LR155540
KNUCKLE - FRONT WHEEL
With Continuous Variable Damping / RH / From: L2445340 		$892.25 1
3K206 LR155541
KNUCKLE - FRONT WHEEL
With Continuous Variable Damping / LH / From: L2445340 		$892.25 1
6K770 LR048131
DUCT - BRAKE DISC COOLING
RH, Disc - Brake / From: K2000001 		$18.79 1
6K770 LR048132
DUCT - BRAKE DISC COOLING
LH, Disc - Brake / From: K2000001 		$42.81 1
1109 LR081538
HUB - WHEEL
RH/LH / From: K2000001 		$219.55 2
1215 LR077894
BEARING - WHEEL HUB
RH/LH / From: K2000001 / To: K2413156 		$147.42 2
1215 LR122585
BEARING - WHEEL HUB
RH/LH / From: K2413157
IN STOCK 		$119.75 2
