Timing Gear (Nitra Plant Build) (3.0L Aj20D6 Diesel High) ((V) Fromm2000001)

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Timing Gear (Nitra Plant Build) (3.0L AJ20D6 Diesel High) ((V) FROMM2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR123057 BOLT $2.53 IN STOCK
Photo Part No Description Price (each) Stock
LR125588 BOLT $3.76 To Order
Photo Part No Description Price (each) Stock
LR125589 BOLT $3.75 IN STOCK
Photo Part No Description Price (each) Stock
LR073648 SCREW $2.67 IN STOCK
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.60 IN STOCK
Photo Part No Description Price (each) Stock
LR073744 SPROCKET - CAMSHAFT $146.46 To Order
Photo Part No Description Price (each) Stock
LR125575 CHAIN - TIMING $90.44 To Order
Photo Part No Description Price (each) Stock
LR125576 CHAIN - TIMING $122.35 To Order
Photo Part No Description Price (each) Stock
LR125581 TENSIONER - TIMING CHAIN $134.58 To Order
Photo Part No Description Price (each) Stock
LR125580 TENSIONER - TIMING CHAIN $98.82 To Order
Photo Part No Description Price (each) Stock
LR125587 IDLER - DRIVE CHAIN $80.00 To Order
Photo Part No Description Price (each) Stock
LR125346 JET - CHAIN LUBRICATING $22.12 To Order
Photo Part No Description Price (each) Stock
LR125584 BLADE - TENSIONER $28.56 To Order
Photo Part No Description Price (each) Stock
LR125582 GUIDE - TIMING CHAIN $71.29 To Order
Photo Part No Description Price (each) Stock
LR125583 GUIDE - TIMING CHAIN $72.68 To Order
Photo Part No Description Price (each) Stock
LR125585 BLADE - TENSIONER $35.32 To Order
LR164805 BLADE - TENSIONER $38.20 To Order
View All

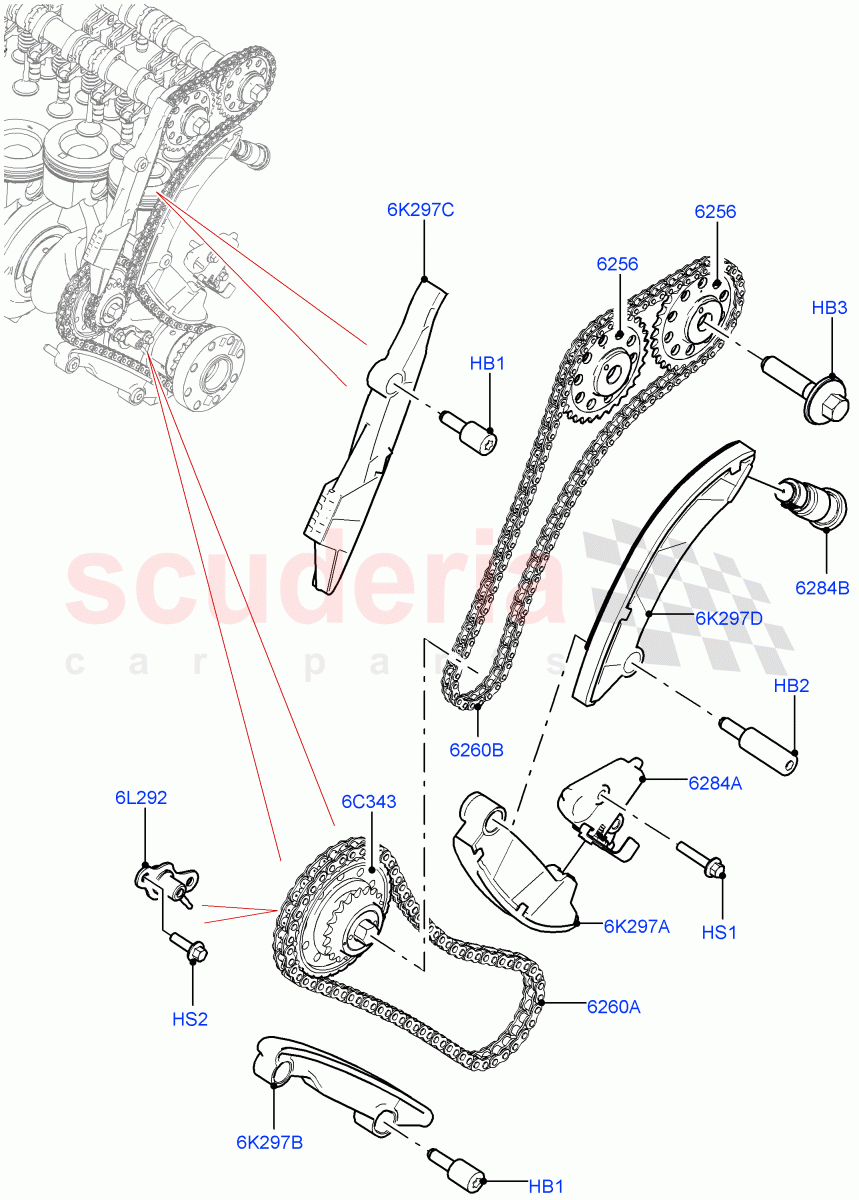

Timing Gear (Nitra Plant Build) (3.0L AJ20D6 Diesel High) ((V) FROMM2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR123057
BOLT
Chain Guide, M8 X 23MM, Short / From: M2000001
IN STOCK 		$2.53 3
HB2 LR125588
BOLT
Chain Guide, Long, M8 X 23MM / From: M2000001 		$3.76 1
HB3 LR125589
BOLT
Camshaft Sprocket, M12 x 1.5 x 55 / From: M2000001
IN STOCK 		$3.75 2
HS1 LR073648
SCREW
Hexagonal Head, M6 x 30MM, Tensioner / From: M2000001
IN STOCK 		$2.67 2
HS2 LR073655
SCREW
Hexagonal Head, M6 X 20MM, Oil Lubrication Jet / From: M2000001
IN STOCK 		$1.60 2
6C343 LR125587
IDLER - DRIVE CHAIN
Intermediate / From: M2000001 		$80.00 1
6K297A LR125584
BLADE - TENSIONER
RH, Primary / From: M2000001 		$28.56 1
6K297B LR125582
GUIDE - TIMING CHAIN
LH, Primary / From: M2000001 		$71.29 1
6K297C LR125583
GUIDE - TIMING CHAIN
LH, Secondary / From: M2000001 		$72.68 1
6K297D LR125585
BLADE - TENSIONER
RH, Secondary / From: M2000001 / To: N2461057 		$35.32 1
6K297D LR164805
BLADE - TENSIONER
RH, Secondary / From: N2461058 		$38.20 1
6L292 LR125346
JET - CHAIN LUBRICATING
Oil / From: M2000001 		$22.12 1
6256 LR073744
SPROCKET - CAMSHAFT
From: M2000001 		$146.46 2
6260A LR125575
CHAIN - TIMING
Lower, Primary / From: M2000001 		$90.44 1
6260B LR125576
CHAIN - TIMING
Secondary, Upper / From: M2000001 		$122.35 1
6284A LR125581
TENSIONER - TIMING CHAIN
Primary / From: M2000001 		$134.58 1
6284B LR125580
TENSIONER - TIMING CHAIN
Secondary / From: M2000001 		$98.82 1
