Fuel Lines (Nitra Plant Build) (3.0L Aj20D6 Diesel High) ((V) Fromm2000001)

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Fuel Lines (Nitra Plant Build) (3.0L AJ20D6 Diesel High) ((V) FROMM2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106206 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
RYG500900 SCREW $4.21 To Order
Photo Part No Description Price (each) Stock
LR071774 SCREW $2.31 To Order
Photo Part No Description Price (each) Stock
LR125292 FILTER - FUEL - PRIMARY $95.28 To Order
Photo Part No Description Price (each) Stock
LR125289 BRACKET - FUEL FILTER $44.23 To Order
Photo Part No Description Price (each) Stock
LR125290 TUBE - FUEL $54.33 To Order
Photo Part No Description Price (each) Stock
LR154872 TUBE $50.86 To Order
Photo Part No Description Price (each) Stock
LR144912 TUBE - FUEL FILTER TO FUEL PUMP $80.12 To Order
Photo Part No Description Price (each) Stock
LR125509 PIPE - FUEL $43.33 To Order
Photo Part No Description Price (each) Stock
LR125294 TUBE - FUEL FEED $42.89 To Order
Photo Part No Description Price (each) Stock
LR082765 TUBE - FUEL $38.49 To Order
Photo Part No Description Price (each) Stock
LR142296 PIPE - FUEL $156.68 To Order
Photo Part No Description Price (each) Stock
LR142125 TUBE - FUEL SUPPLY AND VAPOUR $281.03 To Order
Photo Part No Description Price (each) Stock
LR125301 FILTER - FUEL - PRIMARY $230.78 To Order
Photo Part No Description Price (each) Stock
LR081530 GROMMET - FUEL FILTER $11.05 To Order
Photo Part No Description Price (each) Stock
LR125505 BRACKET - FUEL TUBE SUPPORT $57.37 To Order
Photo Part No Description Price (each) Stock
LR125507 BRACKET - FUEL TUBE SUPPORT $39.21 To Order
View All

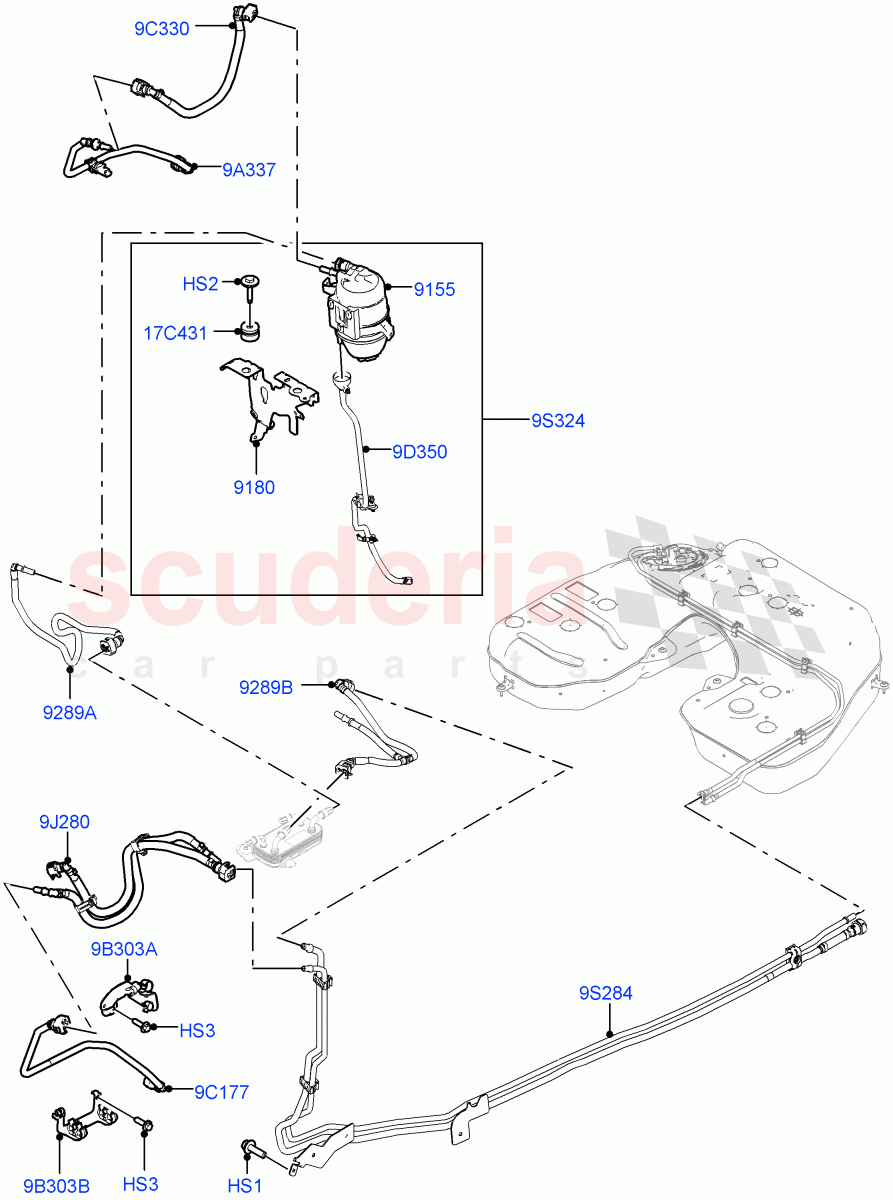

Fuel Lines (Nitra Plant Build) (3.0L AJ20D6 Diesel High) ((V) FROMM2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 FS106206
SCREW
Hexagonal Head, M6 X 20MM / From: M2000001
IN STOCK 		$0.96 2
HS2 RYG500900
SCREW
Bolt And Washer, Hexagonal Head, M6X30 / From: M2000001 		$4.21 2
HS3 LR071774
SCREW
Hexagonal Head, M6 X 20MM / From: M2000001 		$2.31 4
9A337 LR144912
TUBE - FUEL FILTER TO FUEL PUMP
To Fuel Pump / From: M2000001 		$80.12 1
9B303A LR125505
BRACKET - FUEL TUBE SUPPORT
Upper / From: M2000001 		$57.37 1
9B303B LR125507
BRACKET - FUEL TUBE SUPPORT
Lower / From: M2000001 		$39.21 1
9C177 LR125509
PIPE - FUEL
From: M2000001 		$43.33 1
9C330 LR125294
TUBE - FUEL FEED
Front, Single / From: M2000001 		$42.89 1
9D350 LR082765
TUBE - FUEL
Drain / From: M2000001 		$38.49 1
9J280 LR142296
PIPE - FUEL
Front / From: M2000001 		$156.68 1
9S284 LR142125
TUBE - FUEL SUPPLY AND VAPOUR
Rear / From: M2000001 		$281.03 1
9S324 LR125301
FILTER - FUEL - PRIMARY
Assembly / From: M2000001 		$230.78 1
17C431 LR081530
GROMMET - FUEL FILTER
From: M2000001 		$11.05 2
9155 LR125292
FILTER - FUEL - PRIMARY
With Bracket / From: M2000001 		$95.28 1
9180 LR125289
BRACKET - FUEL FILTER
From: M2000001 		$44.23 1
9289A LR125290
TUBE - FUEL
Fuel Cooler To Filter Tube / From: M2000001 		$54.33 1
9289B LR154872
TUBE
From Fuel Cooler / From: M2000001 		$50.86 1
