Name: Oil Pump (Nitra Plant Build) (3.0L AJ20D6 Diesel High) ((V) FROMM2000001)
Rating: 4.5 (1 reviews)

View All

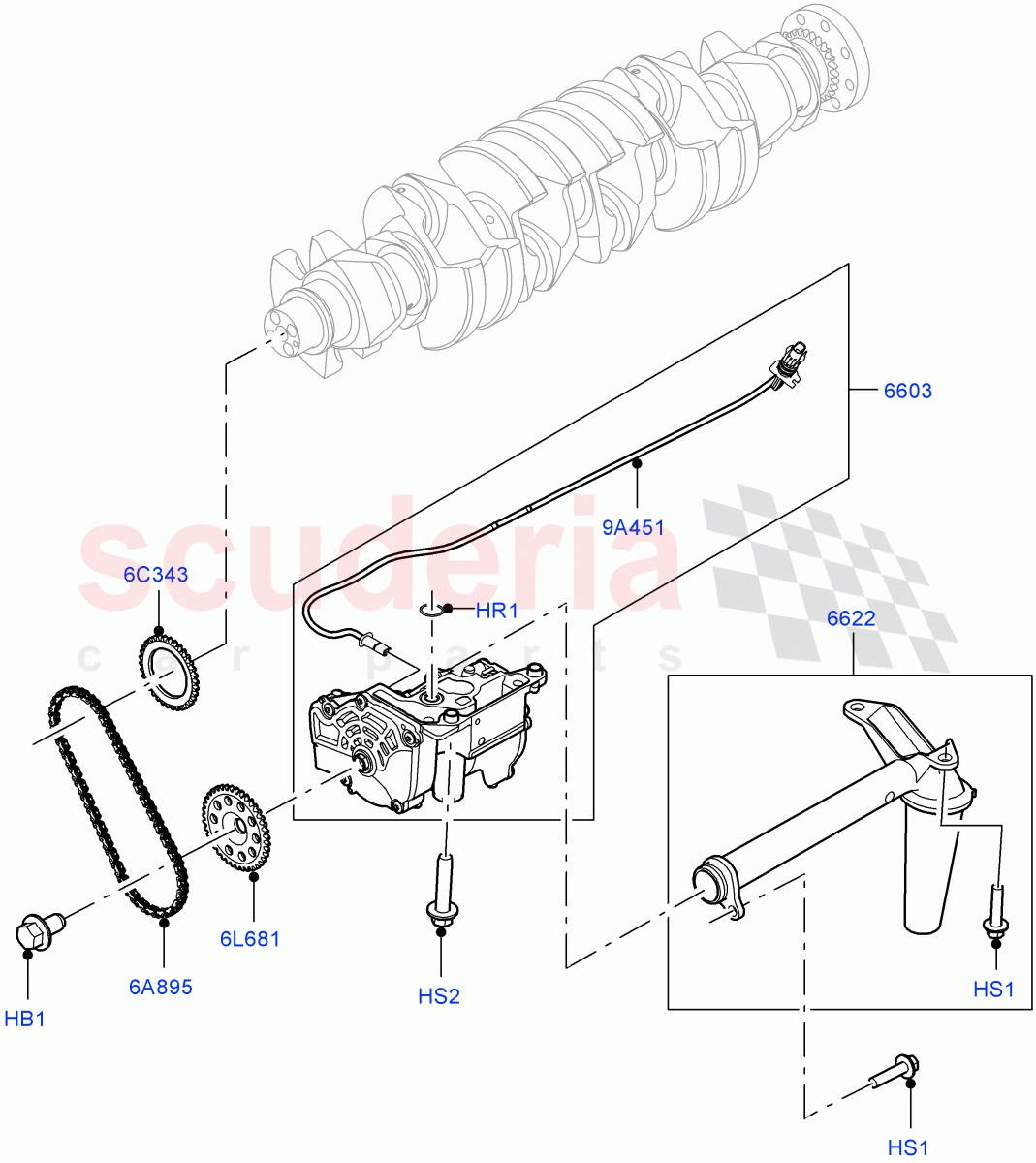

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR121808	BOLT	$1.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR133725	RING - SEALING	$29.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073676	SCREW	$2.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121353	TUBE - OIL PUMP INLET	$83.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073751	CHAIN - OIL PUMP DRIVE	$139.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125579	SPROCKET - CRANKSHAFT	$107.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125586	SPROCKET - OIL PUMP DRIVE	$81.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133727	WIRE - JUMPER	$39.67	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR121808	BOLT IN STOCK	LR121808 BOLT M10 x 18MM / From: M2000001 IN STOCK	$1.96	1
HR1	LR133725	RING - SEALING	LR133725 RING - SEALING	$29.62	1
HS1	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM, Pickup Pipe, To Engine / From: M2000001	$1.35	2
HS1	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM, Pickup Pipe, To Pump / From: M2000001	$1.35	1
HS2	LR073676	SCREW	LR073676 SCREW M8 x 35mm, Oil Pump, To Engine / From: M2000001	$2.35	3
6A895	LR073751	CHAIN - OIL PUMP DRIVE	LR073751 CHAIN - OIL PUMP DRIVE From: M2000001	$139.93	1
6C343	LR125579	SPROCKET - CRANKSHAFT	LR125579 SPROCKET - CRANKSHAFT Crankshaft / From: M2000001	$107.01	1
6L681	LR125586	SPROCKET - OIL PUMP DRIVE	LR125586 SPROCKET - OIL PUMP DRIVE Oil Pump / From: M2000001	$81.58	1
9A451	LR133727	WIRE - JUMPER	LR133727 WIRE - JUMPER From: M2000001	$39.67	1
6603	LR148861	PUMP - OIL & VACUUM	LR148861 PUMP - OIL & VACUUM From: M2000001 / To: N2460273	$675.06	1
6603	LR164063	PUMP - OIL & VACUUM	LR164063 PUMP - OIL & VACUUM From: N2460274	$754.34	1
6622	LR121353	TUBE - OIL PUMP INLET	LR121353 TUBE - OIL PUMP INLET From: M2000001	$83.59	1

Oil Pump (Nitra Plant Build) (3.0L Aj20D6 Diesel High) ((V) Fromm2000001)

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]
