Load Compartment Trim (Solihull Plant Build, Floor) (With 7 Seat Configuration) ((V) Fromha000001)

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Load Compartment Trim (Solihull Plant Build, Floor) (With 7 Seat Configuration) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR095024 BOLT AND WASHER - HEX.HEAD $2.44 To Order
Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED $0.60 IN STOCK
Photo Part No Description Price (each) Stock
FN110046 NUT - HEX. $0.69 To Order
Photo Part No Description Price (each) Stock
LR028301 SCREW $1.24 To Order
Photo Part No Description Price (each) Stock
PYP500140 SCREW $0.77 IN STOCK
Photo Part No Description Price (each) Stock
LR082104 CARPET - FLOOR - LOADING COMP. $358.02 To Order
LR082105 CARPET - FLOOR - LOADING COMP. $358.02 To Order
LR096438 CARPET - FLOOR - LOADING COMP. $358.02 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR081292 RAIL - LUGGAGE COMPARTMENT - INSERT $184.51 To Order
LR081296 RAIL - LUGGAGE COMPARTMENT - INSERT $184.51 To Order
Photo Part No Description Price (each) Stock
LR082863 BRACKET - LOAD FLOOR $14.34 To Order
Photo Part No Description Price (each) Stock
LR088967 SEAL - COVER $3.63 IN STOCK
Photo Part No Description Price (each) Stock
LR082834 PLATE - TAILGATE RECLINE $165.22 To Order
LR082836 PLATE - TAILGATE RECLINE $175.54 To Order
LR082828 PLATE - TAILGATE RECLINE $175.54 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR088865 HOOK-LUGGAGE COMPARTMENT-TIE DOWN $52.55 To Order
LR088865 HOOK-LUGGAGE COMPARTMENT-TIE DOWN $52.55 To Order
LR088865 HOOK-LUGGAGE COMPARTMENT-TIE DOWN $52.55 To Order
Photo Part No Description Price (each) Stock
LR082120 FOAM PAD - LOADFLOOR $303.92 To Order
LR082121 FOAM PAD - LOADFLOOR $297.96 To Order
LR082122 FOAM PAD - LOADFLOOR $303.92 To Order
Photo Part No Description Price (each) Stock
LR105996 FOAM PAD - LOADFLOOR $79.17 To Order
Photo Part No Description Price (each) Stock
LR088767 COVER - LATCH $33.44 To Order
LR088769 COVER - LATCH $36.56 To Order
LR088766 COVER - LATCH $36.55 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR138284 STUD - BALL $6.48 To Order
Photo Part No Description Price (each) Stock
LR082129 BRACKET - LUGGAGE RAILS SUPPORT $66.56 To Order
LR082134 BRACKET - LUGGAGE RAILS SUPPORT $58.26 To Order
LR098308 BRACKET - LUGGAGE RAILS SUPPORT $63.80 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR082130 BRACKET - LUGGAGE RAILS SUPPORT $36.91 To Order
LR082136 BRACKET - LUGGAGE RAILS SUPPORT $35.17 To Order
Photo Part No Description Price (each) Stock
LR082131 BRACKET - LUGGAGE RAILS SUPPORT $16.49 To Order
LR082137 BRACKET - LUGGAGE RAILS SUPPORT $16.49 To Order
LR101964 BRACKET - LUGGAGE RAILS SUPPORT $15.78 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR087353 BRACKET - LUGGAGE RAILS SUPPORT $20.51 To Order
LR087354 BRACKET - LUGGAGE RAILS SUPPORT $20.51 To Order
LR125132 BRACKET - LUGGAGE RAILS SUPPORT $12.00 To Order
...and 1 more part variants. See table on right for more details.
View All

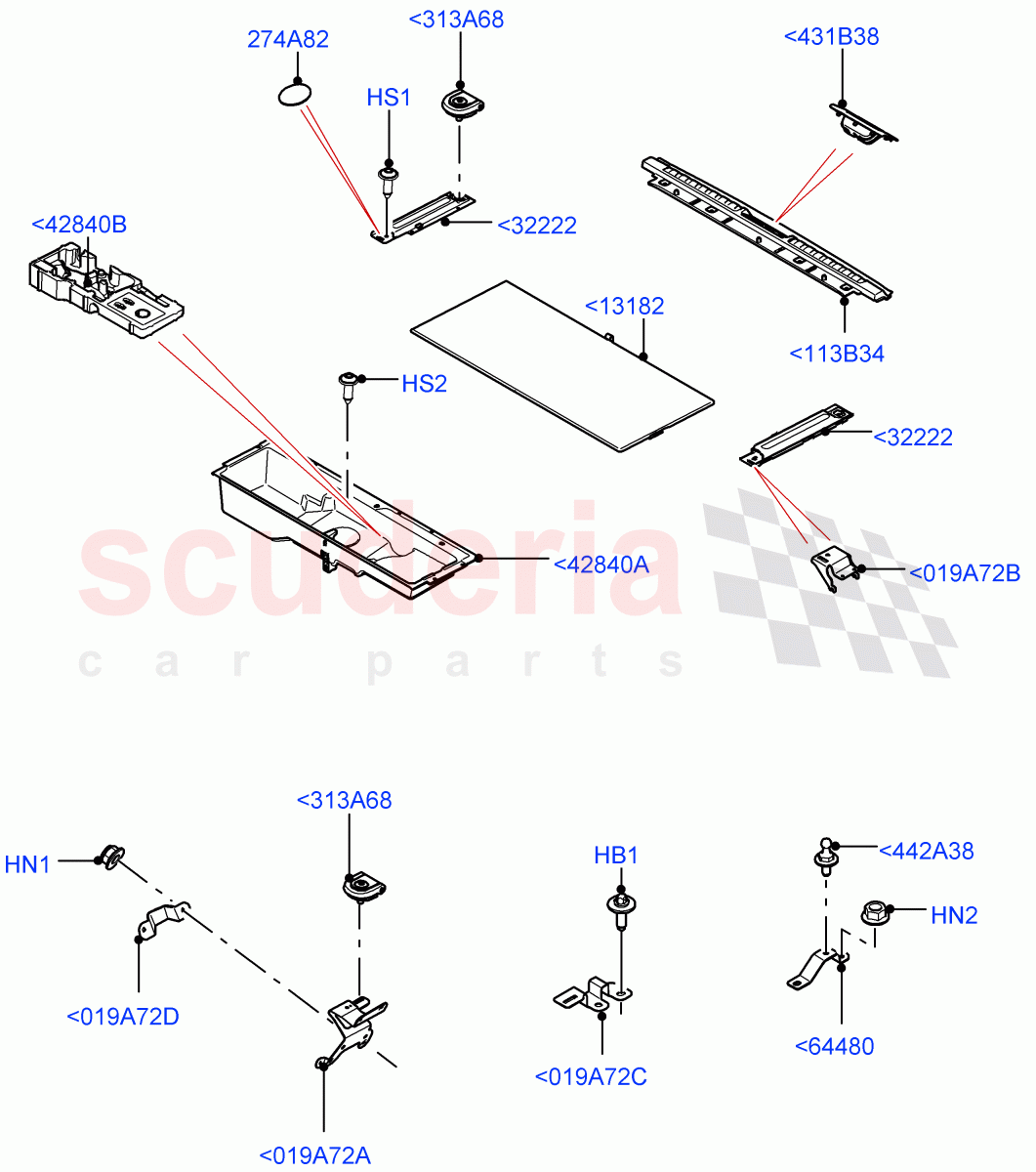

Load Compartment Trim (Solihull Plant Build, Floor) (With 7 Seat Configuration) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<019A72A LR082129
BRACKET - LUGGAGE RAILS SUPPORT
RH, Cargo Retention / To: HA005371 		$66.56 1
<019A72A LR082134
BRACKET - LUGGAGE RAILS SUPPORT
LH, Cargo Retention / To: HA005371 		$58.26 1
<019A72A LR098308
BRACKET - LUGGAGE RAILS SUPPORT
RH, Cargo Retention / From: HA005372 / To: HA016352 		$63.80 1
<019A72A LR098309
BRACKET - LUGGAGE RAILS SUPPORT
LH, Cargo Retention / From: HA005372 / To: HA016352 		$63.83 1
<019A72A LR101963
BRACKET - LUGGAGE RAILS SUPPORT
RH, Cargo Retention / From: HA016353 		$63.80 1
<019A72A LR101965
BRACKET - LUGGAGE RAILS SUPPORT
LH, Cargo Retention / From: HA016353 		$63.83 1
<019A72B LR082130
BRACKET - LUGGAGE RAILS SUPPORT
RH, Support Bracket 		$36.91 1
<019A72B LR082136
BRACKET - LUGGAGE RAILS SUPPORT
LH, Support Bracket 		$35.17 1
<019A72C LR082131
BRACKET - LUGGAGE RAILS SUPPORT
RH, Infill Panel / To: HA009189 		$16.49 1
<019A72C LR082137
BRACKET - LUGGAGE RAILS SUPPORT
LH, Infill Panel / To: HA009189 		$16.49 1
<019A72C LR101964
BRACKET - LUGGAGE RAILS SUPPORT
RH, Infill Panel / From: HA009190 		$15.78 1
<019A72C LR101966
BRACKET - LUGGAGE RAILS SUPPORT
LH, Infill Panel / From: HA009190 		$15.78 1
<019A72D LR087353
BRACKET - LUGGAGE RAILS SUPPORT
RH, "C" Pillar, Fixing / To: KA095921 		$20.51 1
<019A72D LR087354
BRACKET - LUGGAGE RAILS SUPPORT
LH, "C" Pillar, Fixing / To: KA095921 		$20.51 1
<019A72D LR125132
BRACKET - LUGGAGE RAILS SUPPORT
RH, "C" Pillar, Fixing / From: KA095922 		$12.00 1
<019A72D LR125134
BRACKET - LUGGAGE RAILS SUPPORT
LH, "C" Pillar, Fixing / From: KA095922 		$12.00 1
<113B34 LR082834
PLATE - TAILGATE RECLINE
Inner Tailgate - Powered, Interior Espresso Carpet / To: HA027808 		$165.22 1
<113B34 LR082836
PLATE - TAILGATE RECLINE
Inner Tailgate - Powered, Int Ebony Carpet / To: HA027808 		$175.54 1
<113B34 LR082828
PLATE - TAILGATE RECLINE
Interior Espresso Carpet, Load Floor - Standard / To: HA027808 		$175.54 1
<113B34 LR082829
PLATE - TAILGATE RECLINE
Int Ebony Carpet, Load Floor - Standard / To: HA027808 		$175.54 1
<113B34 LR107515
PLATE - TAILGATE RECLINE
Interior Espresso Carpet, Load Floor - Standard / From: HA027809 		$175.54 1
<113B34 LR107516
PLATE - TAILGATE RECLINE
Int Ebony Carpet, Load Floor - Standard / From: HA027809 		$175.54 1
<113B34 LR107513
PLATE - TAILGATE RECLINE
Inner Tailgate - Powered, Interior Espresso Carpet / From: HA027809 		$165.13 1
<113B34 LR107514
PLATE - TAILGATE RECLINE
Inner Tailgate - Powered, Int Ebony Carpet / From: HA027809 		$168.74 1
<313A68 LR088865
HOOK-LUGGAGE COMPARTMENT-TIE DOWN
Load Retainer Luggage Rails / To: KA999999 		$52.55 2
<313A68 LR088865
HOOK-LUGGAGE COMPARTMENT-TIE DOWN
Less Load Retainer Luggage / To: KA999999 		$52.55 4
<313A68 LR088865
HOOK-LUGGAGE COMPARTMENT-TIE DOWN
From: LA000001 		$52.55 4
<431B38 LR088767
COVER - LATCH
Inner Tailgate - Powered, Interior Espresso Carpet 		$33.44 1
<431B38 LR088769
COVER - LATCH
Inner Tailgate - Powered, Int Ebony Carpet 		$36.56 1
<431B38 LR088766
COVER - LATCH
Int Ebony Carpet, Load Floor - Standard 		$36.55 1
<431B38 LR088765
COVER - LATCH
Interior Espresso Carpet, Load Floor - Standard 		$39.13 1
<442A38 LR138284
STUD - BALL
M8 x 19MM 		$6.48 2
<13182 LR082104
CARPET - FLOOR - LOADING COMP.
Interior Espresso Carpet / To: HA020601 		$358.02 1
<13182 LR082105
CARPET - FLOOR - LOADING COMP.
Int Ebony Carpet / To: HA020601 		$358.02 1
<13182 LR096438
CARPET - FLOOR - LOADING COMP.
Interior Espresso Carpet / From: HA020602 		$358.02 1
<13182 LR096437
CARPET - FLOOR - LOADING COMP.
Int Ebony Carpet / From: HA020602 		$358.02 1
<32222 LR081292
RAIL - LUGGAGE COMPARTMENT - INSERT
RH 		$184.51 1
<32222 LR081296
RAIL - LUGGAGE COMPARTMENT - INSERT
LH 		$184.51 1
<42840A LR082120
FOAM PAD - LOADFLOOR
With Standard Duty Coil Spring Susp 		$303.92 1
<42840A LR082121
FOAM PAD - LOADFLOOR
Hi Line Audio System - 600 W, With Four Corner Air Suspension 		$297.96 1
<42840A LR082122
FOAM PAD - LOADFLOOR
Midline Sound System, With Four Corner Air Suspension 		$303.92 1
<42840B LR105996
FOAM PAD - LOADFLOOR
Tow Hitch Receiver 12 Pin Elec 		$79.17 1
<64480 LR082863
BRACKET - LOAD FLOOR 		$14.34 1
HB1 LR095024
BOLT AND WASHER - HEX.HEAD
M10 X 30MM 		$2.44 2
HN1 FX106046
NUT - FLANGED
Hexagonal Head, M6
IN STOCK 		$0.60 8
HN2 FN110046
NUT - HEX.
M10 		$0.69 2
HS1 LR028301
SCREW
M8 X 21MM, Pan Head 		$1.24 6
HS2 PYP500140
SCREW
4.2 x 13MM, Torx
IN STOCK 		$0.77 7
274A82 LR088967
SEAL - COVER
25MM,
IN STOCK 		$3.63 2
