Name: Front Cross Member & Stabilizer Bar (Nitra Plant Build, Conventional Stabilizer Bar) ((V) FROMK2000001)
Rating: 5.0 (1 reviews)

Front Cross Member & Stabilizer Bar (Nitra Plant Build, Conventional Stabilizer Bar) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Front Cross Member & Stabilizer Bar (Nitra Plant Build, Conventional Stabilizer Bar) ((V)...

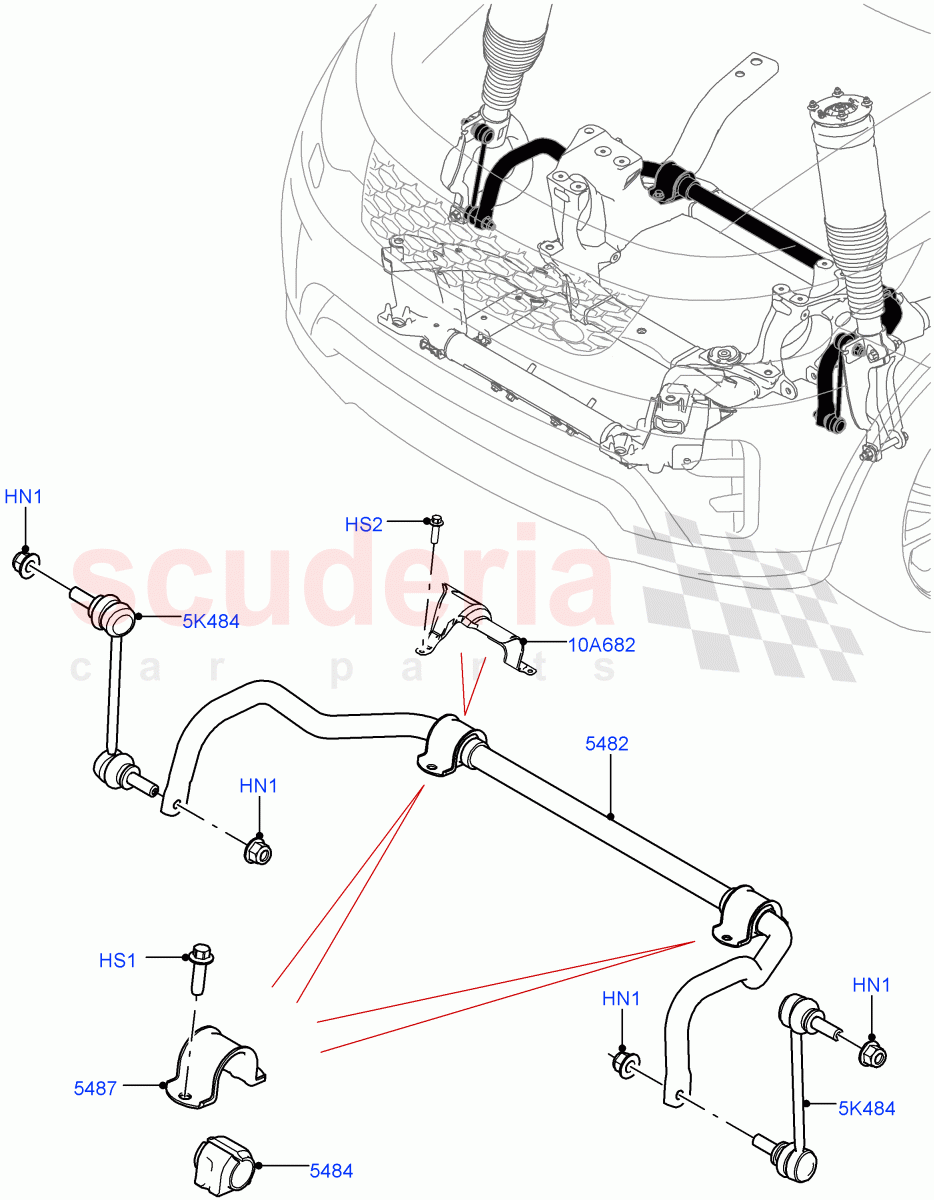

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FY114056	NUT - HEX.	$1.26	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR038560	SCREW	$3.30	To Order

Photo	Part No	Description	Price (each)	Stock
	KYP500400	SCREW AND WASHER	$0.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054996	BAR - STABILIZER	$428.56	To Order
	LR057979	Bar - Stabilizer	$251.03	To Order
	LR085669	BAR - STABILIZER	$329.80	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR038557	INSULATOR - STABILIZER BAR	$32.02	IN STOCK
	LR054997	BUSH - STABILIZER BAR LINK	$32.50	To Order
	LR043584	INSULATOR - STABILIZER BAR	$28.48	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR057726	BRACKET - STABILIZER BAR	$41.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035489	LINK - STABILIZER BAR	$75.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR129070	HEAT SHIELD - STABILIZER BAR BEARING	$36.64	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	FY114056	NUT - HEX. IN STOCK	FY114056 NUT - HEX. Hexagonal Head, M14 / From: K2000001 IN STOCK	$1.26	4
HS1	LR038560	SCREW	LR038560 SCREW Hexagonal Head, M12 x 40MM / From: K2000001	$3.30	4
HS2	KYP500400	SCREW AND WASHER	KYP500400 SCREW AND WASHER 2.0L I4 High DOHC AJ200 Petrol / Hexagonal Head, M6 X 16MM / From: M2000001	$0.62	3
5K484	LR035489	LINK - STABILIZER BAR IN STOCK	LR035489 LINK - STABILIZER BAR RH/LH, Stabilizer Bar / From: K2000001 IN STOCK	$75.71	2
10A682	LR129070	HEAT SHIELD - STABILIZER BAR BEARING	LR129070 HEAT SHIELD - STABILIZER BAR BEARING 2.0L I4 High DOHC AJ200 Petrol / From: M2000001	$36.64	1
5482	LR054996	BAR - STABILIZER	LR054996 BAR - STABILIZER Rear Spring Load Class-B, With Standard Duty Coil Spring Susp / Includes Insulators And Clamps / From: K2000001 / To: L2999999	$428.56	1
5482	LR057979	Bar - Stabilizer	LR057979 Bar - Stabilizer Rear Spring Load Class-D, With Standard Duty Coil Spring Susp / Includes Insulators And Clamps / From: K2000001 / To: L2999999	$251.03	1
5482	LR085669	BAR - STABILIZER	LR085669 BAR - STABILIZER Rear Spring Load Class-C, With Standard Duty Coil Spring Susp / Includes Insulators And Clamps / From: K2000001 / To: L2999999	$329.80	1
5482	LR081544	BAR - FRONT STABILIZER	LR081544 BAR - FRONT STABILIZER Rear Spring Load Class-A, With Standard Duty Coil Spring Susp / Includes Insulators And Clamps / From: K2000001 / To: L2999999	$261.39	1
5482	LR081619	BAR - FRONT STABILIZER	LR081619 BAR - FRONT STABILIZER Rear Spring Load Class-E, With Standard Duty Coil Spring Susp / Includes Insulators And Clamps / From: K2000001 / To: L2999999	$329.87	1
5482	LR081619	BAR - FRONT STABILIZER	LR081619 BAR - FRONT STABILIZER With Four Corner Air Suspension / Includes Insulators And Clamps / From: M2000001 / To: N2456515	$329.87	1
5482	LR159475	BAR - FRONT STABILIZER	LR159475 BAR - FRONT STABILIZER With Four Corner Air Suspension / Includes Insulators And Clamps / From: N2456516	$329.87	1
5484	LR038557	INSULATOR - STABILIZER BAR IN STOCK	LR038557 INSULATOR - STABILIZER BAR Rear Spring Load Class-A, With Standard Duty Coil Spring Susp / RH/LH, Stabilizer Bar / From: K2000001 / To: L2999999 IN STOCK	$32.02	2
5484	LR054997	BUSH - STABILIZER BAR LINK	LR054997 BUSH - STABILIZER BAR LINK Rear Spring Load Class-C, With Standard Duty Coil Spring Susp / RH/LH, Stabilizer Bar / From: K2000001 / To: L2999999	$32.50	2
5484	LR043584	INSULATOR - STABILIZER BAR	LR043584 INSULATOR - STABILIZER BAR Rear Spring Load Class-D, With Standard Duty Coil Spring Susp / RH/LH, Stabilizer Bar / From: K2000001 / To: L2999999	$28.48	2
5484	LR043584	INSULATOR - STABILIZER BAR	LR043584 INSULATOR - STABILIZER BAR With Four Corner Air Suspension / RH/LH, Stabilizer Bar / From: M2000001	$28.48	2
5487	LR057726	BRACKET - STABILIZER BAR	LR057726 BRACKET - STABILIZER BAR RH/LH, Stabilizer Bar / From: K2000001	$41.53	2
