Auto Trans Assy & Speedometer Drive (Solihull Plant Build) (3.0 V6 Diesel, 8 Speed Auto Trans Zf...

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Auto Trans Assy & Speedometer Drive (Solihull Plant Build) (3.0 V6 Diesel, 8 Speed Auto Trans ZF...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB110086 BOLT - HEX.HEAD $0.59 To Order
Photo Part No Description Price (each) Stock
FS106126 BOLT $0.52 IN STOCK
Photo Part No Description Price (each) Stock
LR017279 STUD $2.21 To Order
Photo Part No Description Price (each) Stock
TYG500102 STUD $2.97 To Order
Photo Part No Description Price (each) Stock
LR082672 AUTOMATIC TRANSMISSION $11,764.17 To Order
LR082675 AUTOMATIC TRANSMISSION $12,110.18 To Order
LR087234 AUTOMATIC TRANSMISSION $13,160.36 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR080753 TUBE - TRANSMISSION VENTILATION $66.92 To Order
View All

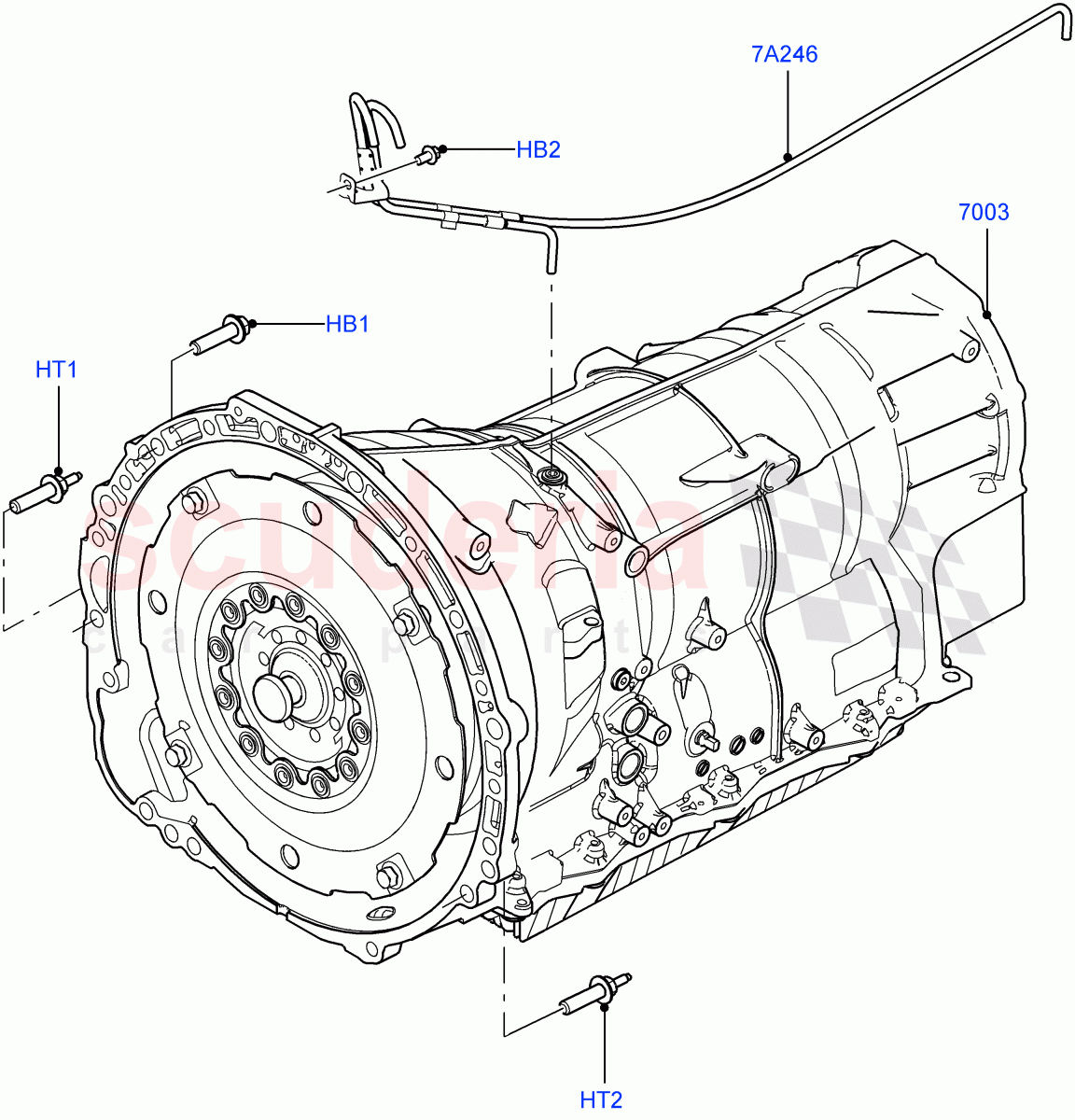

Auto Trans Assy & Speedometer Drive (Solihull Plant Build) (3.0 V6 Diesel, 8 Speed Auto Trans ZF 8HP70 4WD, 4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FB110086
BOLT - HEX.HEAD
M10 x 40MM 		$0.59 10
HB2 FS106126
BOLT
Hexagonal Head, M6 x 12MM
IN STOCK 		$0.52 1
HT1 LR017279
STUD
M10 x 75MM, M6 X 16MM 		$2.21 1
HT2 TYG500102
STUD
M6 X 16MM + M10 X 38MM, Stud 		$2.97 4
7A246 LR080753
TUBE - TRANSMISSION VENTILATION
Gearbox, Includes Bracket, Transfer Box 		$66.92 1
7003 LR082672
AUTOMATIC TRANSMISSION
3.0 V6 D Low MT ROW, Starter - Stop/Start System / Includes Converter, New Part-Please Check For Reman Version 		$11,764.17 1
7003 LR082675
AUTOMATIC TRANSMISSION
3.0 V6 D Low MT ROW, Standard Electric Starter Motor / Includes Converter 		$12,110.18 1
7003 LR087234
AUTOMATIC TRANSMISSION
3.0 V6 D Gen2 Twin Turbo, Starter - Stop/Start System / Includes Converter, New Part-Please Check For Reman Version / From: KA000001 		$13,160.36 1
7003 LR082679
AUTOMATIC TRANSMISSION
3.0 V6 D Low MT ROW, Starter - Stop/Start System / Includes Converter, Remanufactured Part 		$5,550.39 1
7003 LR088552
AUTOMATIC TRANSMISSION
3.0 V6 D Gen2 Twin Turbo, Starter - Stop/Start System / Includes Converter, Remanufactured Part / From: KA000001 		$5,456.95 1
