Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Fuel Tank & Related Parts (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR093364 BOLT $2.81 To Order
Photo Part No Description Price (each) Stock
LR088949 BOLT $3.96 To Order
Photo Part No Description Price (each) Stock
LR094032 CLIP - HOSE $4.41 To Order
Photo Part No Description Price (each) Stock
LR093365 CLIP $2.05 To Order
Photo Part No Description Price (each) Stock
LR061655 CLAMP - FUEL SUPPLY TUBE $6.12 To Order
Photo Part No Description Price (each) Stock
RYG500900 SCREW $4.21 To Order
Photo Part No Description Price (each) Stock
LR082744 TANK - FUEL $1,251.78 To Order
Photo Part No Description Price (each) Stock
LR053666 CAP - FUEL TANK FILLER $28.00 To Order
LR112190 CAP - FUEL TANK FILLER $35.17 To Order
Photo Part No Description Price (each) Stock
LR082769 PIPE - FUEL FILLER $162.42 To Order
LR082772 PIPE - FUEL FILLER $343.22 To Order
LR082771 PIPE - FUEL FILLER $315.71 To Order
Photo Part No Description Price (each) Stock
LR082775 HOSE - FILLER PIPE $147.09 To Order
Photo Part No Description Price (each) Stock
LR082450 TUBE - FUEL VAPOUR $74.04 To Order
Photo Part No Description Price (each) Stock
LR082727 SHIELD - FUEL TANK $659.90 To Order
Photo Part No Description Price (each) Stock
LR073691 FUNNEL - FUEL FILLER $6.28 To Order
Photo Part No Description Price (each) Stock
LR014047 RESTRICTOR - FUEL $26.24 To Order
Photo Part No Description Price (each) Stock
LR085958 FUEL FEED $123.34 To Order
Photo Part No Description Price (each) Stock
LR096832 TUBE - FUEL $470.48 To Order
View All

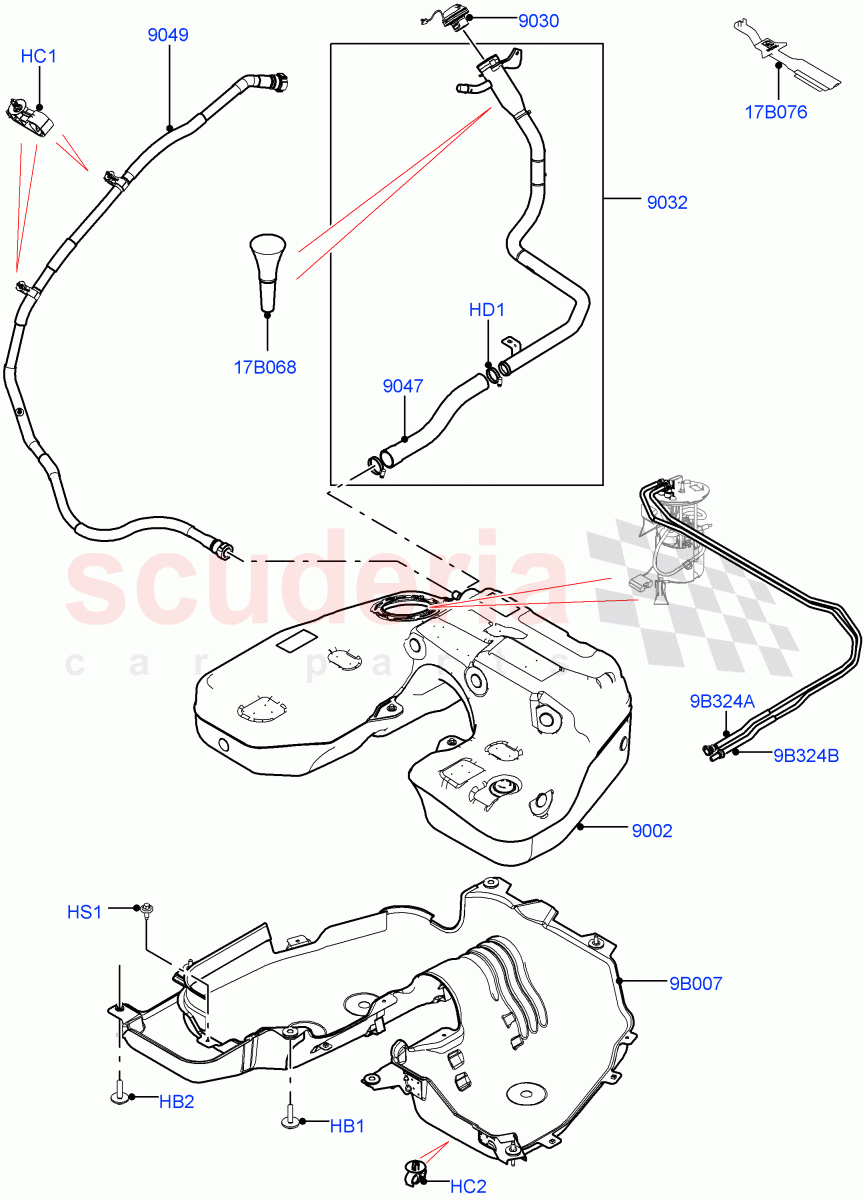

Fuel Tank & Related Parts (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR093364
BOLT
Hexagonal Head, M10 X 50MM, To Body 		$2.81 6
HB2 LR088949
BOLT
M6 X 40MM 		$3.96 1
HC1 LR094032
CLIP - HOSE
Breather Pipe, Plastic 		$4.41 2
HC2 LR093365
CLIP
With Diesel Exh Fluid Emission Tank / Single 		$2.05 2
HD1 LR061655
CLAMP - FUEL SUPPLY TUBE
35-50 x 9 		$6.12 1
HS1 RYG500900
SCREW
Bolt And Washer, Fuel Tank To Shield, Hexagonal Head, M6X30 		$4.21 5
9B007 LR082727
SHIELD - FUEL TANK 		$659.90 1
9B324A LR085958
FUEL FEED
Feed 		$123.34 1
9B324B LR096832
TUBE - FUEL
Return 		$470.48 1
17B068 LR073691
FUNNEL - FUEL FILLER
Fuel Tank Filler Neck With Inhibit 		$6.28 1
17B076 LR014047
RESTRICTOR - FUEL 		$26.24 1
9002 LR082744
TANK - FUEL 		$1,251.78 1
9030 LR053666
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck With Inhibit 		$28.00 1
9030 LR112190
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Japan / From: KA000001 		$35.17 1
9032 LR082769
PIPE - FUEL FILLER
Fuel Tank Filler Neck With Inhibit 		$162.42 1
9032 LR082772
PIPE - FUEL FILLER
Fuel Tank Filler Neck - Diesel 		$343.22 1
9032 LR082771
PIPE - FUEL FILLER
Fuel Tank Filler Neck - Japan 		$315.71 1
9047 LR082775
HOSE - FILLER PIPE 		$147.09 1
9049 LR082450
TUBE - FUEL VAPOUR 		$74.04 1
