Engine Modules And Sensors (Solihull Plant Build) (3.0 V6 Diesel) ((V) Fromha000001)

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Engine Modules And Sensors (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN106042 NUT $1.03 IN STOCK
FN106042 NUT $1.03 IN STOCK
Photo Part No Description Price (each) Stock
LR045542 NUT $1.37 To Order
Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED $0.60 IN STOCK
FX106046 NUT - FLANGED $0.60 IN STOCK
Photo Part No Description Price (each) Stock
RYP500200 SCREW $0.95 To Order
Photo Part No Description Price (each) Stock
LR106651 MODULE-ENGINE CONTROL $1,508.09 To Order
LR117874 MODULE-ENGINE CONTROL $1,174.12 To Order
LR117875 MODULE-ENGINE CONTROL $1,141.50 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR138048 BRACKET - RELAY $20.74 To Order
LR138048 BRACKET - RELAY $20.74 To Order
Photo Part No Description Price (each) Stock
LR086924 BRACKET - ENGINE CONTROL MODULE $26.46 To Order
Photo Part No Description Price (each) Stock
LR138403 BRACKET - CONTROL MODULE $10.64 To Order
Photo Part No Description Price (each) Stock
LR124659 BRACKET - ENGINE CONTROL MODULE $7.26 To Order
Photo Part No Description Price (each) Stock
LR082464 CONTROL UNIT - GLOW PLUG $147.46 To Order
LR082464 CONTROL UNIT - GLOW PLUG $147.46 To Order
Photo Part No Description Price (each) Stock
LR084648 CONTROL UNIT - GLOW PLUG $116.02 To Order
LR084648 CONTROL UNIT - GLOW PLUG $116.02 To Order
LR084649 CONTROL UNIT - GLOW PLUG $117.14 To Order
...and 1 more part variants. See table on right for more details.
View All

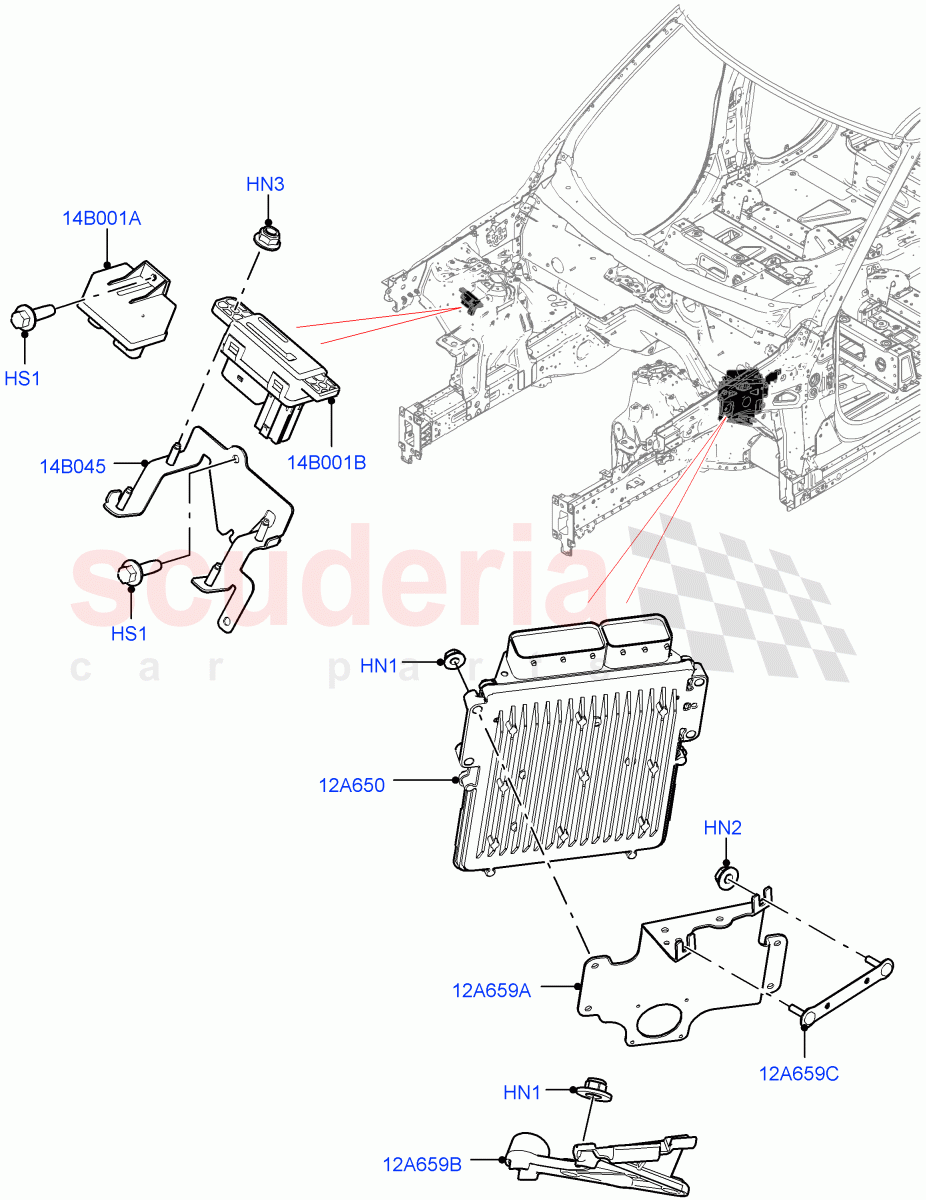

Engine Modules And Sensors (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FN106042
NUT
Hexagonal Head, M6, Module
IN STOCK 		$1.03 4
HN1 FN106042
NUT
Bracket, Hexagonal Head, Lower, M6
IN STOCK 		$1.03 3
HN2 LR045542
NUT
M6, Nut And Washer 		$1.37 2
HN3 FX106046
NUT - FLANGED
Hexagonal Head, M6 / To: HA999999
IN STOCK 		$0.60 4
HN3 FX106046
NUT - FLANGED
3.0 V6 D Gen2 Mono Turbo, LEV 160 / Hexagonal Head, M6 / From: JA000001
IN STOCK 		$0.60 4
HS1 RYP500200
SCREW
Hexagonal Head, M6 X 20MM 		$0.95 1
12A650 LR106651
MODULE-ENGINE CONTROL
3.0 V6 D Gen2 Mono Turbo / Module - Engine Control / From: JA000001 / To: JA999999 		$1,508.09 1
12A650 LR117874
MODULE-ENGINE CONTROL
EU6D Diesel + DPF Emissions / Module - Engine Control / From: KA000001 		$1,174.12 1
12A650 LR117875
MODULE-ENGINE CONTROL
Japanese Emission + DPF / Module - Engine Control / From: KA000001 		$1,141.50 1
12A650 LR114128
MODULE - ENGINE CONTROL
3.0 V6 D Low MT ROW, EU6 + DPF Emissions / Module - Engine Control / From: HA038867 / To: HA999999 		$1,585.15 1
12A650 LR081414
MODULE - ENGINE CONTROL
3.0 V6 D Gen2 Mono Turbo / Module - Engine Control / To: HA038866 		$1,297.28 1
12A650 LR081414
MODULE - ENGINE CONTROL
3.0 V6 D Low MT ROW, Japan Requirements / Module - Engine Control / From: HA038867 / To: HA999999 		$1,297.28 1
12A659A LR086924
BRACKET - ENGINE CONTROL MODULE
Engine Control Module (ECM), Upper 		$26.46 1
12A659B LR138403
BRACKET - CONTROL MODULE
Engine Control Module (ECM), Lower 		$10.64 1
12A659C LR124659
BRACKET - ENGINE CONTROL MODULE
Engine Control Module (ECM), To Body 		$7.26 1
14B001A LR082464
CONTROL UNIT - GLOW PLUG
3.0 V6 D Gen2 Mono Turbo, Japanese Emission + DPF / Glow Plug / From: JA000001 		$147.46 1
14B001A LR082464
CONTROL UNIT - GLOW PLUG
3.0 V6 D Gen2 Twin Turbo / Glow Plug / From: KA000001 		$147.46 1
14B001B LR084648
CONTROL UNIT - GLOW PLUG
Glow Plug, Upper / To: HA999999 		$116.02 1
14B001B LR084648
CONTROL UNIT - GLOW PLUG
3.0 V6 D Gen2 Mono Turbo, LEV 160 / Glow Plug, Upper / From: JA000001 		$116.02 1
14B001B LR084649
CONTROL UNIT - GLOW PLUG
Glow Plug, Lower / To: HA999999 		$117.14 1
14B001B LR084649
CONTROL UNIT - GLOW PLUG
3.0 V6 D Gen2 Mono Turbo, LEV 160 / Glow Plug, Lower / From: JA000001 		$117.14 1
14B045 LR138048
BRACKET - RELAY
To: HA999999 		$20.74 1
14B045 LR138048
BRACKET - RELAY
3.0 V6 D Gen2 Mono Turbo, LEV 160 / From: JA000001 		$20.74 1
