Find Your Part

View All

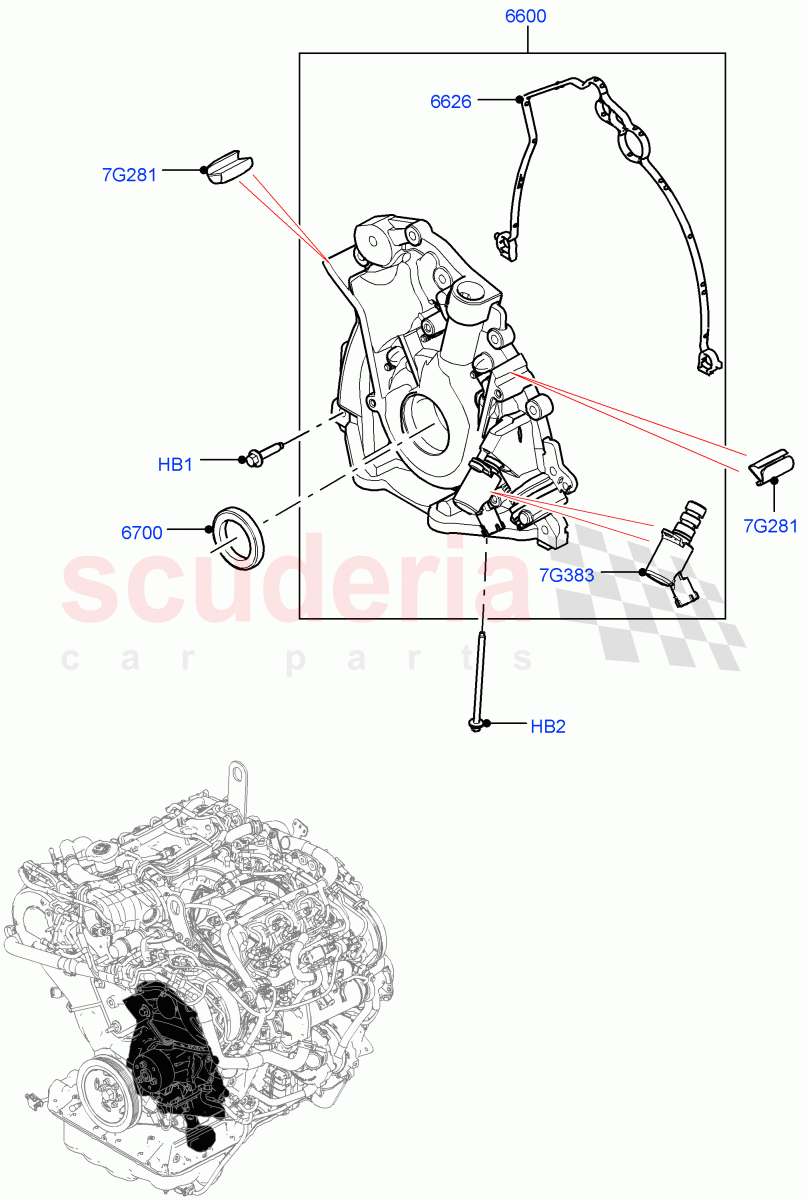

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4147433	BOLT	$1.64	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1225745	BOLT AND WASHER - HEX.HEAD	$2.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR096231	PUMP - OIL	$469.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105987	GASKET - OIL PUMP	$19.09	To Order

Photo	Part No	Description	Price (each)	Stock
	1102415	SEAL - CRANKSHAFT OIL - FRONT	$43.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1346539	SEAL - OIL PUMP	$3.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124526	SOLENOID - OIL PUMP	$196.43	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	4147433	BOLT IN STOCK	4147433 BOLT M6 X 25MM, Oil Pump / From: K2000001 IN STOCK	$1.64	2
HB2	1225745	BOLT AND WASHER - HEX.HEAD IN STOCK	1225745 BOLT AND WASHER - HEX.HEAD Bolt And Washer, M6 X 105MM / From: K2000001 IN STOCK	$2.96	1
7G281	1346539	SEAL - OIL PUMP	1346539 SEAL - OIL PUMP From: K2000001	$3.03	2
7G383	LR124526	SOLENOID - OIL PUMP	LR124526 SOLENOID - OIL PUMP From: K2000001	$196.43	1
6600	LR096231	PUMP - OIL	LR096231 PUMP - OIL From: K2000001	$469.31	1
6626	LR105987	GASKET - OIL PUMP	LR105987 GASKET - OIL PUMP Oil Pump / From: K2000001	$19.09	1
6700	1102415	SEAL - CRANKSHAFT OIL - FRONT IN STOCK	1102415 SEAL - CRANKSHAFT OIL - FRONT From: K2000001 IN STOCK	$43.21	1
